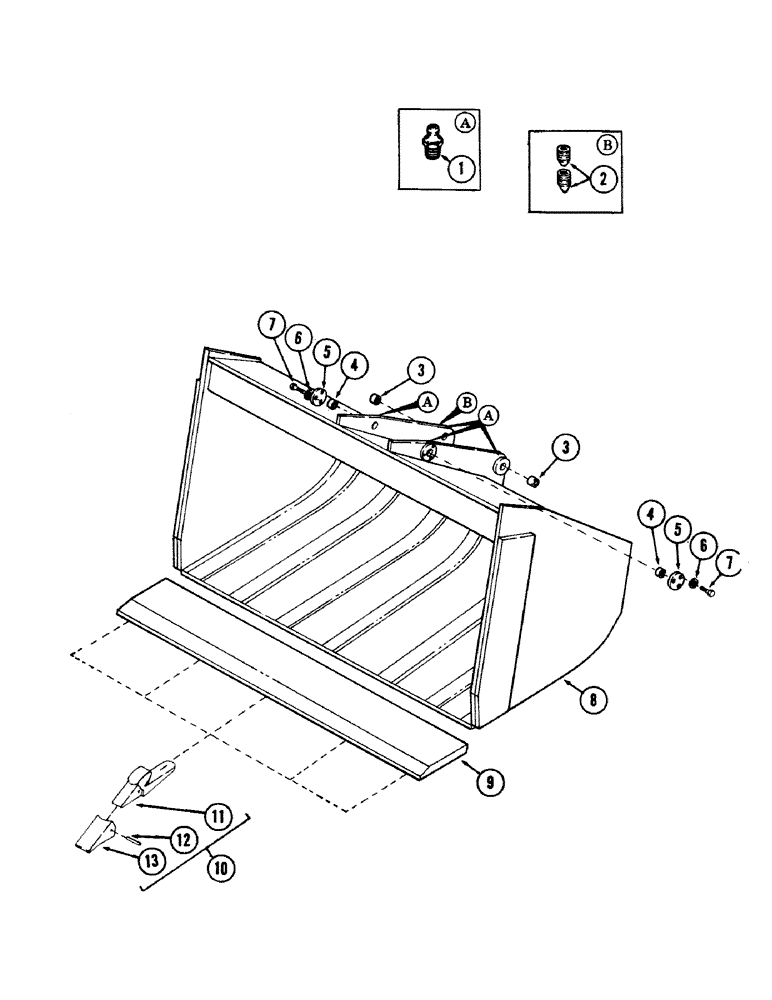

Запчасти Case 40 (130) - FRONT LOADER BUCKET (84) - BOOMS, DIPPERS & BUCKETS

1

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" NPT - (Straight)

4шт.

2

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, set - 3/8" NC x 3/8" - (Cone point)

4шт.

3

S234483

BUSHING

2шт.

4

S229988

BUSHING

2шт.

5

S106642

COVER

2шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

7

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

- 3/8" NC x 7/8" Gr 8

6шт.

8

NSS

NOT SOLD SEPARAT

BUCKET, front loader, order from machinery, Includes: Ref. 9 - 13

1шт.

9

S82501

EDGE, CUTTING

- 60"

1шт.

10

S503108

TOOTH

Includes: Ref. 11 - 13

5шт.

11

S59402

SHANK

tooth

1шт.

12

138-316

LOCK PIN,1/2" x 2 1/2", Slotted

PIN, 1/2" x 2 1/2", Slotted

1шт.

13

S503093

POINT

TIP, replacement

1шт.
