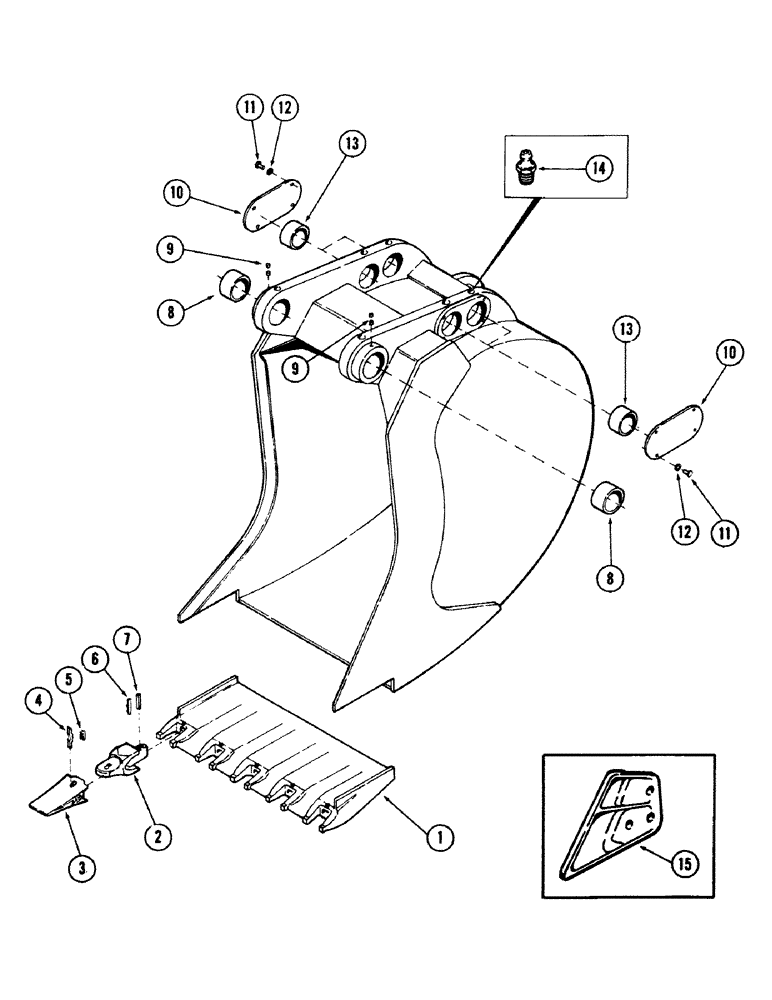

Запчасти Case 40 (124) - BACKHOE BUCKETS, (SEVERE DUTY) (ORDER BUCKET ASSY FROM MACHINERY)1/2 CU.YD. BACKHOE BUCKET(24" WIDE) (84) - BOOMS, DIPPERS & BUCKETS

NSS

NOT SOLD SEPARAT

BUCKET ASSEMBLY - backhoe - 1/2 cu. yd., Includes: Ref. 1

1шт.

1

S98400

EDGE

cutting - Esco Lip

1шт.

NSS

NOT SOLD SEPARAT

BUCKET ASSEMBLY - backhoe - 3/4 cu. yd., Includes: Ref. 1

1шт.

1

S98402

LIP

EDGE, cutting - Esco lip

1шт.

2

S96432

NIPPLE, LUBE

ADAPTER, tooth assembly

1шт.

3

S96431

POINT

tooth assembly

1шт.

4

S96434

PIN

tooth assembly

1шт.

5

S96433

LOCK

tooth assembly

1шт.

6

S110285

WEDGE

tooth assembly

1шт.

7

S110286

SPOOL

tooth assembly

1шт.

8

S234483

BUSHING

bucket related part

2шт.

9

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, set - 3/8" NC x 3/8" - (Cup point), bucket related part

4шт.

10

S229978

COVER

bucket related part

2шт.

11

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

- 3/8" NC x 7/8" Gr 8, bucket related part

8шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Bucket related part 3/8"

8шт.

13

S229988

BUSHING

bucket related part

2шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" NPT - (Straight), bucket related part

6шт.

15

S235283

CUTTER

side - 3" - (Right hand) - (Includes quantity of 3 each - bolts, lockwashers and nuts), bucket related part

1шт.

S235284

CUTTER

side - 3" - (Left hand) - (Includes quantity of 3 each - bolts, lockwashers and nuts), bucket related part

1шт.

S235285

CUTTER

side - 4" - (Right hand) - (Includes quantity of 3 each - bolts, lockwashers and nuts), bucket related part

1шт.

S235286

CUTTER

side - 4" - (Left hand) - (Includes quantity of 3 each - bolts, lockwashers and nuts), bucket related part

1шт.
