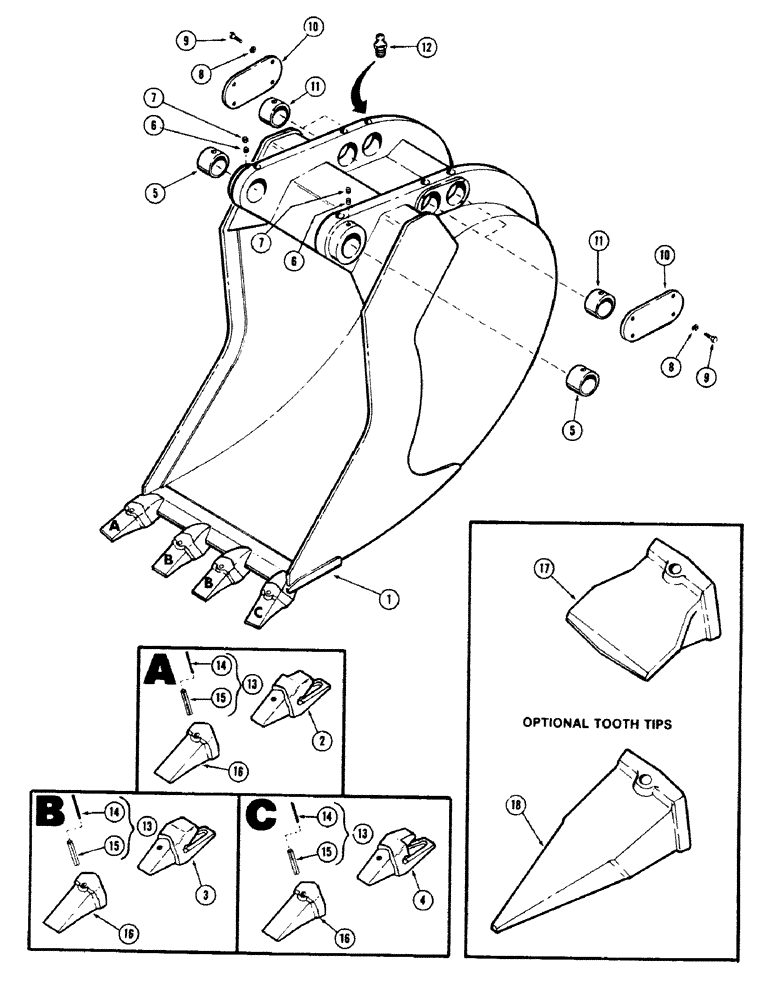

Запчасти Case 40 (122) - BACKHOE BUCKETS, (GENERAL PURPOSE), (ORDER BUCKET ASSEMBLIES FROM MACHINERY) 1/2 CU.YD. (.38 CU. M.) (84) - BOOMS, DIPPERS & BUCKETS

NSS

NOT SOLD SEPARAT

BUCKET ASSEMBLY - backhoe, 25" wide (635 MM), Includes: Ref. 1 - 4

1шт.

1

S239195

EDGE

- cutting, 25" (635 MM)

1шт.

2

S615011

SHANK

- tooth (Left hand)

1шт.

3

S615009

SHANK

- tooth (Center)

1шт.

4

S615010

SHANK

- tooth (Right hand)

1шт.

NSS

NOT SOLD SEPARAT

BUCKET ASSEMBLY - backhoe, 30" wide (762 MM), Includes: Ref. 1 - 4

1шт.

1

S239196

EDGE

- cutting, 30" (762 MM), 3/4 cubic yard (.48 cubic meters) backhoe bucket

1шт.

2

S615011

SHANK

- tooth (Left hand), 3/4 cubic yard (.48 cubic meters) backhoe bucket

1шт.

3

S615009

SHANK

- tooth (Center), 3/4 cubic yard (.48 cubic meters) backhoe bucket

2шт.

4

S615010

SHANK

- tooth (Right hand), 3/4 cubic yard (.48 cubic meters) backhoe bucket

1шт.

NSS

NOT SOLD SEPARAT

BUCKET ASSEMBLY - backhoe, 36" wide (914 MM), Includes: Ref. 1 - 4

1шт.

1

S239197

EDGE

- cutting, 36" (914 MM), 3/4 cubic yard (.57 cubic meters) backhoe bucket

1шт.

2

S615011

SHANK

- tooth (Left hand), 3/4 cubic yard (.57 cubic meters) backhoe bucket

1шт.

3

S615009

SHANK

- tooth (Center), 3/4 cubic yard (.57 cubic meters) backhoe bucket

3шт.

4

S615010

SHANK

- tooth (Right hand), 3/4 cubic yard (.57 cubic meters) backhoe bucket

1шт.

NSS

NOT SOLD SEPARAT

BUCKET ASSEMBLY - backhoe, 42" wide (1066 MM), Includes: Ref. 1 - 4

1шт.

1

S239198

EDGE - cutting, 42" (1066 MM), 1 cubic yard (.76 cubic meters) backhoe bucket

1шт.

2

S615011

SHANK

- tooth (Left hand), 1 cubic yard (.76 cubic meters) backhoe bucket

1шт.

3

S615009

SHANK

- tooth (Center), 1 cubic yard (.76 cubic meters) backhoe bucket

4шт.

4

S615010

SHANK

- tooth (Right hand), 1 cubic yard (.76 cubic meters) backhoe bucket

1шт.

5

S234483

BUSHING

bucket related parts

2шт.

6

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set (Cone point), 3/8" NC x 3/8", bucket related parts

2шт.

7

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set (Cup point), 3/8" NC x 3/8", bucket related parts

2шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Bucket related parts 3/8"

8шт.

9

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

- 3/8" NC x 7/8", bucket related parts

8шт.

10

S229978

COVER

bucket related parts

2шт.

11

S229988

BUSHING

bucket related parts

4шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" PT straight, bucket related parts

6шт.

13

S239750

ROLL PIN

PIN ASSEMBLY - roll, bucket related parts, Includes: Ref. 14 and 15

1шт.

14

S117381

RUBBER

PLUG - rubber, bucket related parts

1шт.

15

138-310

LOCK PIN,1/2" x 3", Slotted

PIN, , Bucket related parts 1/2" x 3", Slotted

1шт.

16

S615008

POINT

TIP - tooth, bucket related parts

1шт.

17

S615024

POINT

TIP - tooth, bucket related parts

1шт.

18

S615025

POINT

TIP - tooth, bucket related parts

1шт.
