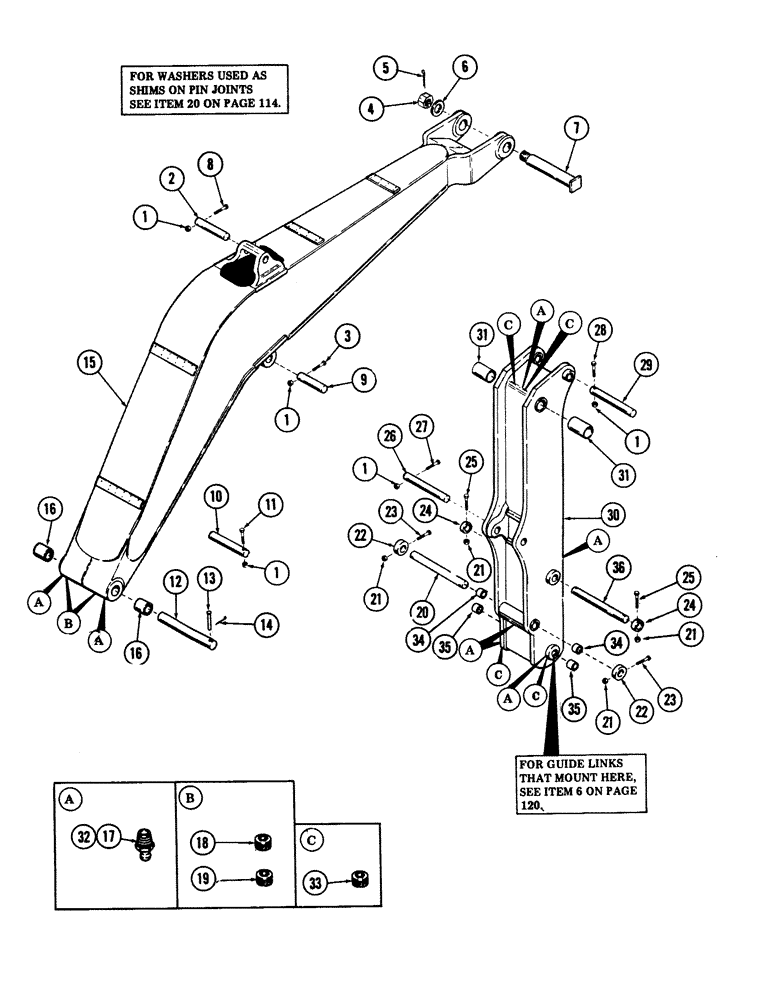

Запчасти Case 40 (118) - "Y" BOOM AND TOOL BOOM (84) - BOOMS, DIPPERS & BUCKETS
№
Артикул
Название
Примечание
Количество
1
131-70
NUT,1/2"-13, GB
NUT, self locking - 1/2" NC
1шт.
2
S233793
PIN
- (Hoist cylinder rod, Serial Range: end-boom)
1шт.
3
26-884
BOLT,Hex, 1/2" - 13 x 5-1/4", Gr 8
- 1/2" NC x 5-1/4" Gr 8
1шт.
4
25-3032
SLOTTED NUT,2"-4.5, G5, Hvy
NUT, slotted - 2" NC
1шт.
6
S110511
WASHER
flat
1шт.
7
S237586
PIN ASSY.
PIN - (Boom to tool boom)
1шт.
8
26-876
BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 8
- 1/2" NC x 4-3/4" Gr 8
1шт.
9
S233798
PIN
- (Crowd cylinder base, Serial Range: end-boom)
1шт.
10
S233787
PIN
- (Hoist cylinder base end turntable)
1шт.
11
26-892
CAPSCREW,Hex, 1/2" - 13 x 5 3/4", Gr 8
BOLT - 1/2" NC x 5-3/4" Gr 8
1шт.
12
S233785
PIN
-, Serial Range: (Boom-turntable)
1шт.
13
S83936
PIN
clevis - 3/4" x 6.266" grip length
1шт.
14
132-73
COTTER PIN,5/32" x 1 1/2"
Pin, Split (Cotter), 5/32" x 1 1/2"
1шт.
15
S955818
BOOM, main, Includes: Ref. 16 - 19
1шт.
16
S511922
BUSHING
2шт.
17
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING, grease - 1/8" NPT - (Straight)
2шт.
18
83-66
SET SCREW,Hex Soc, 3/8"-16 x 3/8"
SCREW, set - 3/8" NC x 3/8" - (Cup point)
2шт.
19
178-53
SET SCREW,Hex Soc, 3/8"-16 x 3/8"
SCREW, set - 3/8" NC x 3/8" - (Cone point)
2шт.
20
S233808
PIN
- (Link to tool boom)
1шт.
21
131-70
NUT,1/2"-13, GB
NUT, self locking - 1/2" NC
1шт.
22
S117140
COLLAR
2шт.
24
S117142
COLLAR
4шт.
26
S236135
PIN
- (Crowd cylinder rod end to tool boom)
1шт.
27
26-8112
BOLT,Hex, 1/2" - 13 x 7", Gr 8
- 1/2" NC x 7" Gr 8
1шт.
28
113-429
BOLT,Hex, 1/2" - 13 x 5", Gr 5
1шт.
29
S233805
PIN
- (Tool cylinder base end to tool boom)
1шт.
30
S613846
BOOM
tool, Includes: Ref. 31 - 35
1шт.
31
S229565
BUSHING
2шт.
32
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING, grease - 1/8" NPT - (Straight)
4шт.
33
178-53
SET SCREW,Hex Soc, 3/8"-16 x 3/8"
SCREW, set - 3/8" NC x 3/8" - (Cone point)
8шт.
34
S229548
BUSHING
2шт.
35
S511922
BUSHING
2шт.
36
S234951
PIN
- (Extension to tool boom)
2шт.
Выбрано товаров: 36
