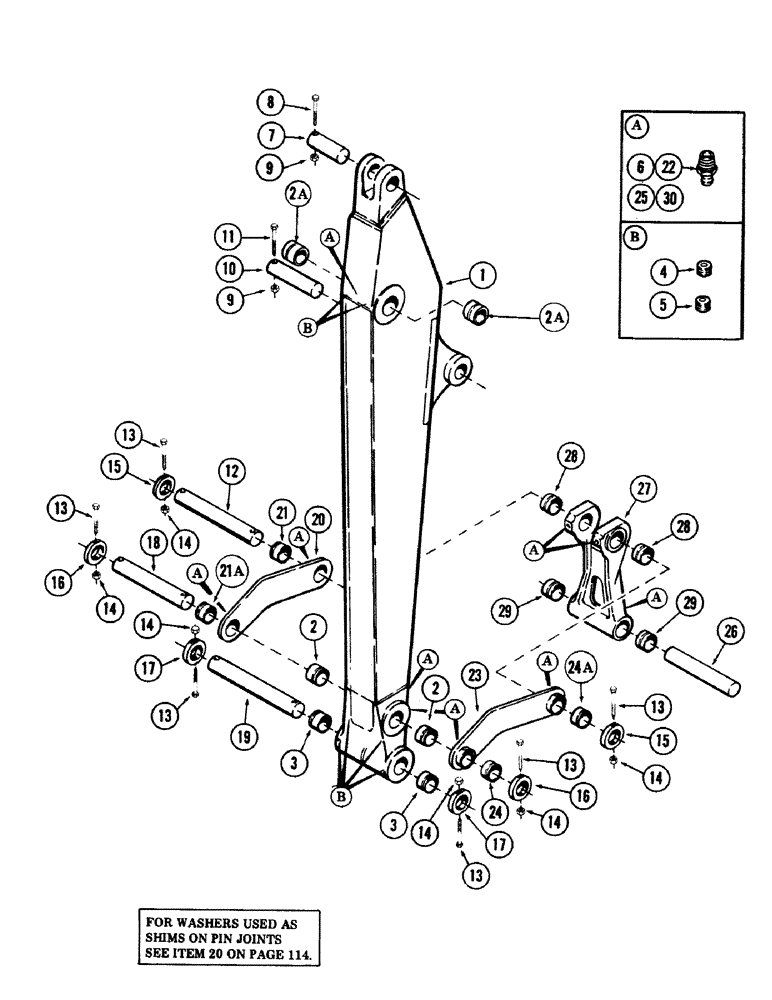

Запчасти Case 40 (116) - DIPPERSTICK WITH ATTACHMENT LINKS AND PINS (84) - BOOMS, DIPPERS & BUCKETS
№
Артикул
Название
Примечание
Количество
1
S955832
DIPPER
STICK - (9'), Includes: Ref. 2 - 6
1шт.
S955833
DIPPER
STICK - (10'5"), Includes: Ref. 2 - 6
1шт.
2
S229564
BUSHING
2шт.
2a
S229565
BUSHING
2шт.
3
S511922
BUSHING
2шт.
4
83-66
SET SCREW,Hex Soc, 3/8"-16 x 3/8"
SCREW, set - 3/8" NC x 3/8" - (Cup point)
6шт.
5
178-53
SET SCREW,Hex Soc, 3/8"-16 x 3/8"
SCREW, set - 3/8" NC X 3/8" - (Cone point)
6шт.
6
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING, grease - 1/8" NPT - (Straight)
6шт.
7
S233798
PIN
- (Crowd cylinder rod, Serial Range: end-dipperstick)
1шт.
8
26-884
BOLT,Hex, 1/2" - 13 x 5-1/4", Gr 8
- 1/2" NC x 5-1/4" Gr 8
1шт.
9
131-70
NUT,1/2"-13, GB
NUT, self locking - 1/2" NC
2шт.
10
S233805
PIN
- (Tool cylinder base, Serial Range: end-dipperstick)
1шт.
11
26-876
BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 8
- 1/2" NC x 4-3/4" Gr 8
1шт.
12
S233809
LARGE PIN
PIN - (Tool cylinder rod, Serial Range: end-links)
1шт.
14
131-70
NUT,1/2"-13, GB
NUT, self locking - 1/2" NC
6шт.
15
S117141
COLLAR
2шт.
16
S117140
COLLAR
2шт.
17
S117142
COLLAR
2шт.
18
S233808
PIN
-, Serial Range: (Dipperstick-links)
1шт.
19
S233813
PIN
-, Serial Range: (Dipperstick-bucket)
1шт.
20
S233780
ARM
LINK - (Left hand), Includes: Ref. 21 - 22
1шт.
21
S511923
BUSHING
1шт.
21a
S229548
BUSHING
1шт.
22
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING, grease - 1/8" NPT - (Straight)
2шт.
23
S233781
LINK ASSY.
LINK - (Right hand), Includes: Ref. 24 - 25
1шт.
24
S229548
BUSHING
1шт.
24a
S511923
BUSHING
1шт.
25
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING, grease - 1/8" NPT - (Straight)
2шт.
26
S233811
PIN
-, Serial Range: (Link-bucket)
1шт.
27
S610353
LINK
ASSEMBLY, Includes: Ref. 28 - 30
1шт.
28
S512013
BUSHING
2шт.
29
S229548
BUSHING
2шт.
30
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING, grease - 1/8" NPT - (Straight)
3шт.
Выбрано товаров: 34
