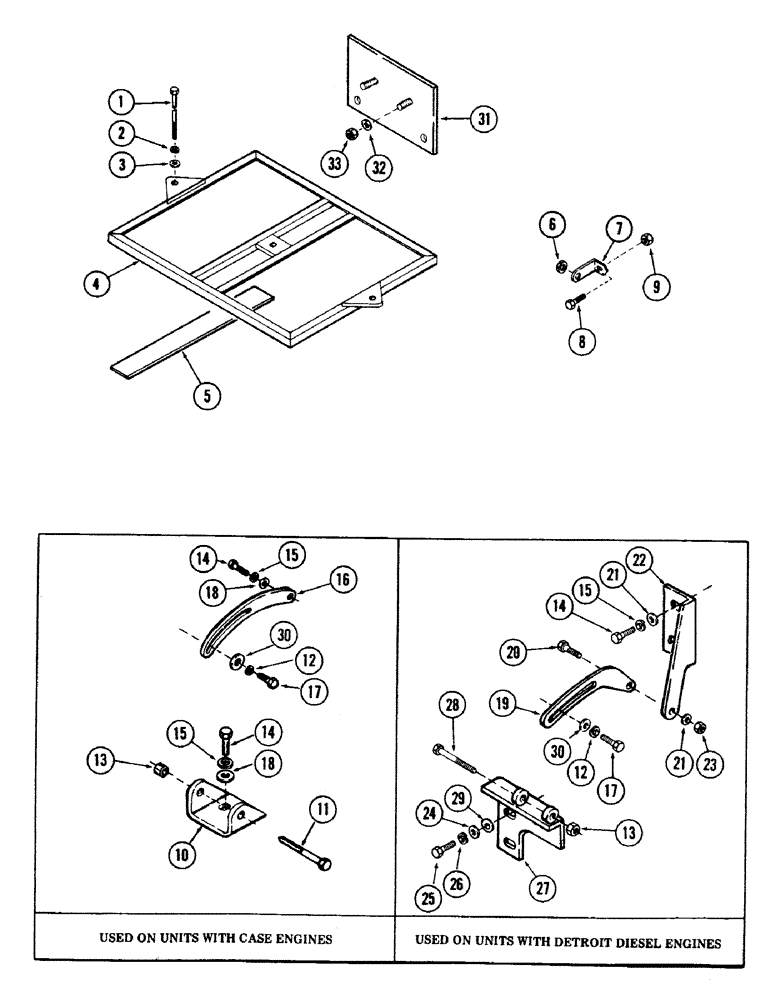

Запчасти Case 40 (258) - ELECTRICAL MOUNTING BRACKETS AND HARDWARE (55) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
113-2446
BOLT,Hex, 1/2" - 13 x 10-1/2", Gr 5
3шт.
2
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
3шт.
3
S95569
WASHER
- flat, 1/2"
3шт.
4
S515069
BRACKET
- battery hold down
1шт.
5
S117291
STRIP
- rubber (Under batteries)
4шт.
6
S64752
NUT
- (Mounts, Serial Range: horn-bracket)
1шт.
7
S203190
BRACKET
- horn mounting
1шт.
8
113-103
BOLT,Hex, 5/16" - 18 x 1", Gr 5
1шт.
9
LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A
NUT - locki, 5/16" NC (Bracket to floor plate)
1шт.
10
A160391
BRACKET
- alternator mounting
1шт.
11
113-247
BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5
- 3/8" x 3" NC hex (Grade 5)
1шт.
12
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
1шт.
13
131-52
NUT,3/8"-16, GC
NUT - lock, 3/8" NC
1шт.
14
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
2шт.
15
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
16
S238535
BRACKET
- alternator adjusting
1шт.
17
113-103
BOLT,Hex, 5/16" - 18 x 1", Gr 5
1шт.
18
195-525
WASHER,3/8", SAE
- flat, 7/16"
2шт.
19
S200898
STRAP
BRACKET - alternator
1шт.
20
113-208
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
1шт.
21
195-525
WASHER,3/8", SAE
- flat, 7/16"
3шт.
22
S239091
BRACKET
- alternator adjusting mounting
1шт.
23
131-52
NUT,3/8"-16, GC
NUT, lock, 3/8" NC
1шт.
24
195-104
WASHER,3/8"
- flat, 7/16"
2шт.
25
113-312
BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5
- 7/16" x 1" NC hex (Grade 5)
2шт.
26
192-22
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
2шт.
27
S239432
BRACKET
- alternator mounting
1шт.
28
113-252
BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5
1шт.
29
195-525
WASHER,3/8", SAE
- flat, 7/16" (Used as shims)
1шт.
30
195-521
WASHER,5/16", SAE
- flat, 3/8"
1шт.
31
S238088
BRACKET
- relay mounting
1шт.
ANOTHER BRACKET USED (NOT A SUB) USE S515699
1шт.
32
195-518
WASHER,1/4", SAE
- flat, 1/4"
2шт.
33
86625061
NUT,1/4"-20, GB
NUT - lock, 1/4" NC
2шт.
Выбрано товаров: 34
