Запчасти Case 40 (256) - R36587 ALTERNATOR (55) - ELECTRICAL SYSTEMS

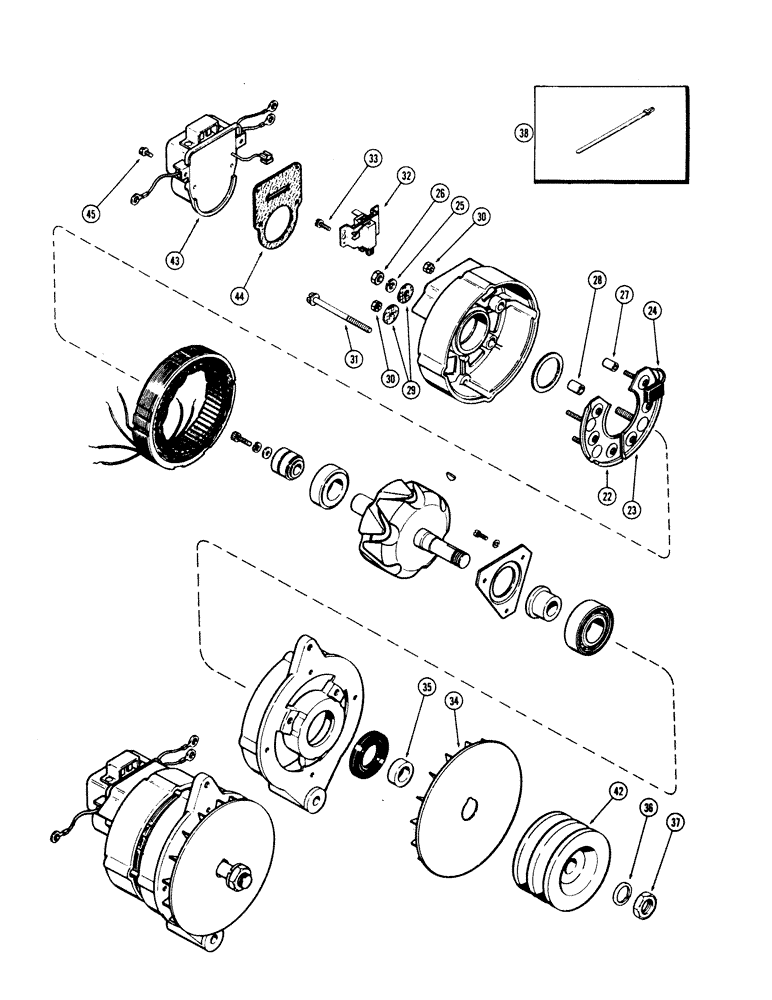

Схема запчастей Case 40 - (256) - R36587 ALTERNATOR (55) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

22

A47165

DIODE

RECTIFIER ASSEMBLY - negative w/diodes and studs, Serial Range: (Anode-plate)

1шт.

23

A47164

DIODE

RECTIFIER ASSEMBLY - positive w/diodes & studs, Serial Range: (Cathode-plate)

1шт.

24

A45253

DIODE ELEMENT

DIODE ASSY - trio

1шт.

25

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.

25

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

26

129-17

NUT,Hex, #10 - 24

NUT - No. 10 NC hex

3шт.

26

129-141

JAM NUT,Jam, 1/4"-20, G5

1шт.

27

A45254

SPACER

- trio diode

1шт.

28

A44771

SLEEVE CYLINDER

SLEEVE - insulator (1/4" x 5/16" x 1/2")

1шт.

28

A41756

BUSHING

SLEEVE - insulator (3/16" x 1/4" x 3/8")

1шт.

29

A47613

WASHER

- insulating (1/4" x 3/4" x 1/16")

2шт.

29

A47612

WASHER

- insulating (3/16" x 3/4" x 1/16"), Includes: Ref. 29 - 38

2шт.

30

A41060

LOCK NUT

NUT - No. 10-24 hex, w/ext. skpf washer

3шт.

31

A45030

BOLT

- thru (No. 10 NF x 4")

4шт.

32

A41048

BRUSH, COMMUTATOR

BRUSH ASSY - w/holder

1шт.

33

A44780

SCREW

- brush holder to rear housing

2шт.

34

A42431

FAN

- ventilating

1шт.

35

A47162

SPACER

- fan

1шт.

36

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Pulley 5/8"

1шт.

37

A41035

NUT

- pulley retaining

1шт.

38

T54520

STRAP

WRAP - wire locking (Nylon tie)

2шт.

42

A41361

PULLEY

- (Used on units with Case engine)

1шт.

A44678

PULLEY

- (Used on units with Detroit diesel engine)

1шт.

43

A47167

REGULATOR

ASSY - voltage

1шт.

44

A47159

GASKET

- regulator to rear housing

1шт.

45

182-519

SCREW,Sl Pan Hd, #4 - 40 x 3/16"

- regulator mounting (No. 8-32 x 1/2" self tapping)

2шт.

182-1089

SCREW - regulator mounting (No. 8 - 32 x 3/4" sltd. hex. washer head)

2шт.

Выбрано товаров: 27
