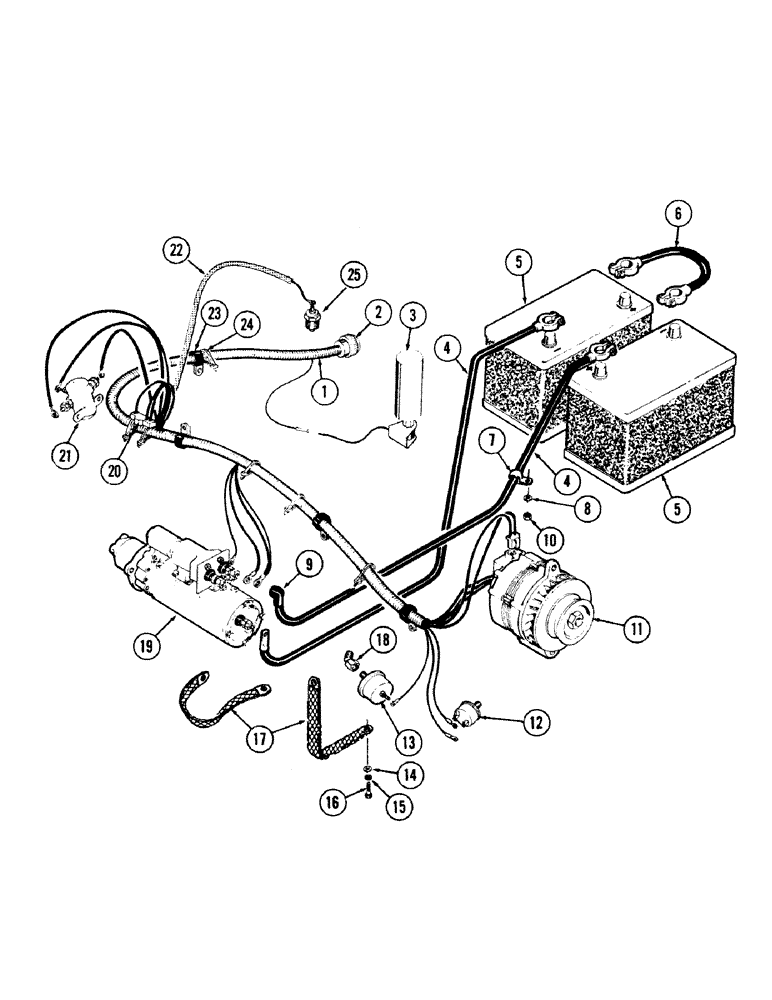

Запчасти Case 40 (250) - ENGINE WIRING HARNESS, (USED WITH CASE 504BDT DIESEL ENGINE) (55) - ELECTRICAL SYSTEMS

1

S615902

HARNESS

WIRING HARNESS - engine, Includes: Ref. 2

1шт.

2

S107265

PLUG

CONNECTOR - electrical, male, 8 contact

1шт.

3

REF

INSTRUCTION

KIT - cold start (Optional) (See Figure 272)

1шт.

4

S236999

CABLE PULLING GRIP

CABLE - battery (Starter ground to battery ground)

1шт.

5

A145205

WET BATTERY

- 12 volt, dry

2шт.

6

S237885

NEG BATTERY CABLE

CABLE - battery, Serial Range: (Battery-battery)

1шт.

7

NLS

NO LONGER SERVICED

1шт.

8

195-525

WASHER,3/8", SAE

- flat, 3/8"

1шт.

9

S115407

BOOT

- rubber

1шт.

10

131-52

NUT,3/8"-16, GC

NUT - lock, 3/8" NC

1шт.

11

REF

INSTRUCTION

ALTERNATOR - 24 volt with regulator (See figure 254)

1шт.

A41361

PULLEY

- alternator

1шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, (On alternator output terminal) 1/4"

1шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, On alternator output terminal

1шт.

12

S63884

SWITCH

- pressure (Oil pressure)

1шт.

13

S108398

TRANSMITTER

SENDING UNIT - oil pressure

1шт.

14

195-525

WASHER,3/8", SAE

- flat, 3/8"

1шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

16

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

17

S229640

CABLE

- ground (Starter to engine and, Serial Range: engine-turntable)

2шт.

18

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

Pipe (Into engine) 45º, 1/8"-27 Female x 1/8"-27 Male

1шт.

19

REF

INSTRUCTION

STARTER - (See Figure 42)

1шт.

20

S237284

RESISTOR

1шт.

21

S219533

SOLENOID

RELAY

1шт.

22

REF

INSTRUCTION

LOOM - around wire 36T, 21" long - cut from S118377

1шт.

23

R14668

CLAMP

- harness to engine, use existing hardware

1шт.

24

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE - cable

1шт.

25

S108396

SENDER UNIT

SENDING UNIT - engine temperature

1шт.

S118377

LOOM

- 20' roll

1шт.
