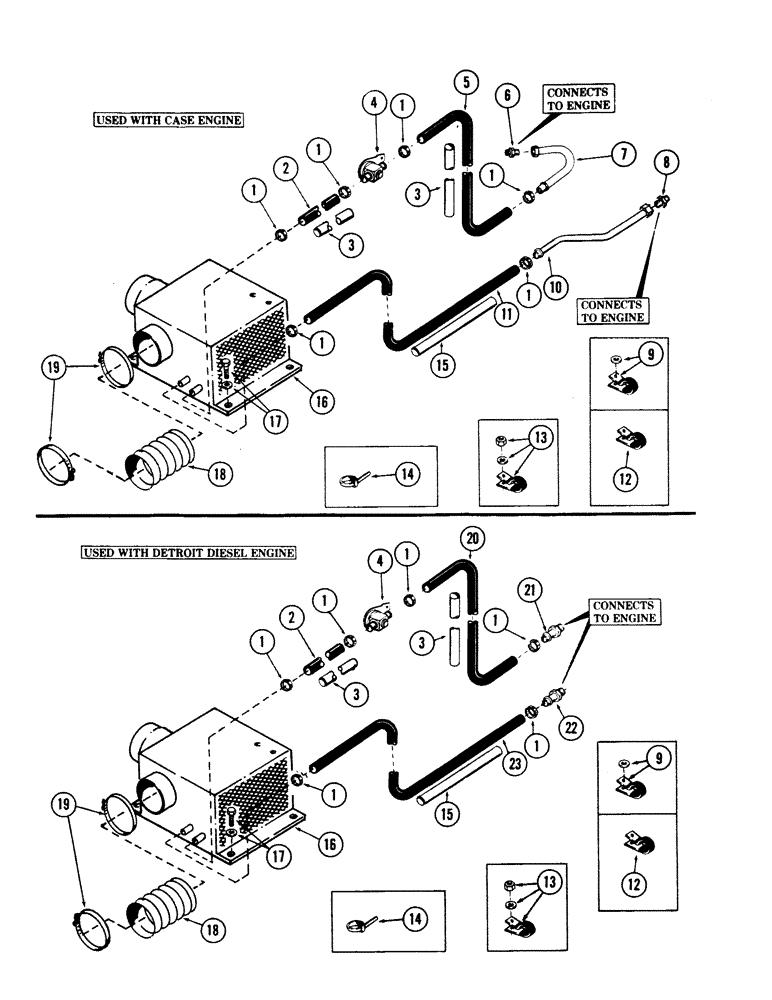

Запчасти Case 40 (268) - HEATER AND HOSES (50) - CAB CLIMATE CONTROL

1

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

1шт.

2

REF

INSTRUCTION

HOSE - low pressure - 24" long - cut from A42610

1шт.

3

REF

INSTRUCTION

CONDUIT - 22" long, cut from S118481

1шт.

4

S223937

VALVE

- heater

1шт.

5

REF

INSTRUCTION

HOSE - low pressure - 140" long - cut from A42610

1шт.

6

218-1026

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

ADAPTER - (5/8" tube) - 7/8" - 14 male x 3/8" NPT male 37" flared

1шт.

7

S232219

TUBE,0.62" OD x 3.06, 4.68" L

- coolant

1шт.

8

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - (5/8" tube) - 7/8" - 14 male x 3/4" NPT male - 37 degree flared

1шт.

9

S15544

CLAMP,1 5/16", Insul, 3/8" Bolt

- hose (Hoses to top of heater box)

2шт.

S109505

WASHER - flat

2шт.

10

S231777

TUBE,0.62" OD x 3.85, 34.05" L

- coolant

1шт.

11

REF

INSTRUCTION

HOSE - low pressure - 150" long - cut from A42610

1шт.

12

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- (Secures tube to engine block)

2шт.

13

R14668

CLAMP

- hose (Secures hoses under floor plate and flywheel) (Use exsting hardware to mount 3 clamps)

4шт.

131-52

NUT,3/8"-16, GC

NUT - lock, 3/8" NC (Use with clamp to stud)

1шт.

195-525

WASHER,3/8", SAE

- flat, 3/8"

1шт.

14

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE - cable (Use with hoses)

1шт.

15

REF

INSTRUCTION

CONDUIT - 44" long - cut from S118481

1шт.

16

REF

INSTRUCTION

HEATER - hot water (See figure 270)

1шт.

17

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - self locking, 5/16" NC

4шт.

18

REF

INSTRUCTION

HOSE - (See Ref. 9 on figure 270)

1шт.

19

REF

INSTRUCTION

CLAMP - (See Ref. 8 on figure 270)

2шт.

20

REF

INSTRUCTION

HOSE - low pressure - 125" long - cut from A42610

1шт.

21

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

INSERT - hose, 5/8" ID hose x 1/2" NPT male

1шт.

22

217-376

FITTING,5/8" Hose Barb x 3/8" Male NPTF

INSERT - hose, 5/8" ID hose x 3/8" NPT male

1шт.

23

REF

INSTRUCTION

HOSE - low pressure - 165" long - cut from A42610

1шт.

A42610

LARGE HOSE

HOSE - 5/8" ID x 600" long

1шт.

S118481

PACKAGE

CONDUIT - 60" long

1шт.
