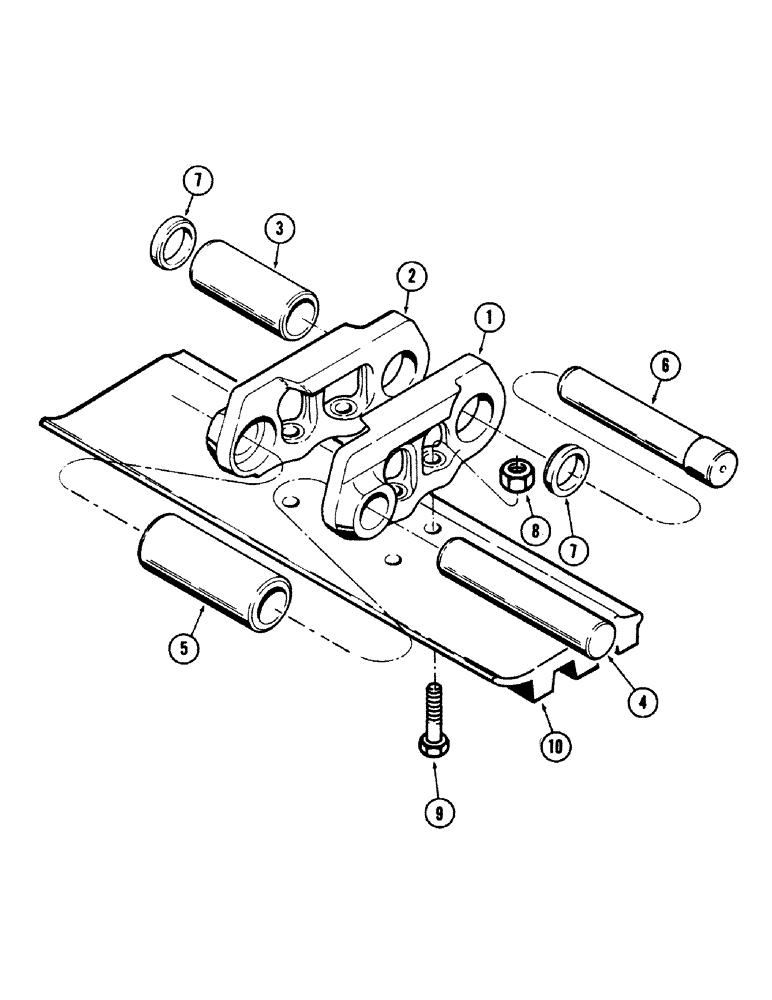

Запчасти Case 40 (060) - TRACK SHOES, LINKS AND PINS (48) - TRACKS & TRACK SUSPENSION

S607785

TRACK CHAIN

TRACK ASSEMBLY WITH 24" 3 BAR GROUSER SHOES

1шт.

The above track assemblies as shown are for one (1) side only, two (2) assemblies are required per machine.

1шт.

S612991

TRACK CHAIN

TRACK ASSEMBLY WITH 30" 3 BAR GROUSER SHOES

1шт.

The above track assemblies as shown are for one (1) side only, two (2) assemblies are required per machine.

1шт.

S229282

CHAIN (CE)

CHAIN LINK ASSEMBLY, Includes: Ref. 1 - 7

1шт.

1

S105786

LINK ASSY.

LINK, track - (Right hand)

47шт.

2

S105787

LINK ASSY.

LINK, track - (Left hand)

47шт.

3

S105788

BUSHING

meter

1шт.

4

S105789

PIN

46шт.

5

S105790

BUSHING

46шт.

6

S105792

AXLE PIN

PIN, master

1шт.

7

S105791

COLLAR

master bushing

2шт.

8

S108929

NUT

188шт.

9

S108928

BOLT

188шт.

10

S105793

SHOE

24" triple grouser - (Used with S607785 track assembly)

47шт.

S115589

SHOE

30" triple grouser - (Used with S612991 track assembly)

47шт.
