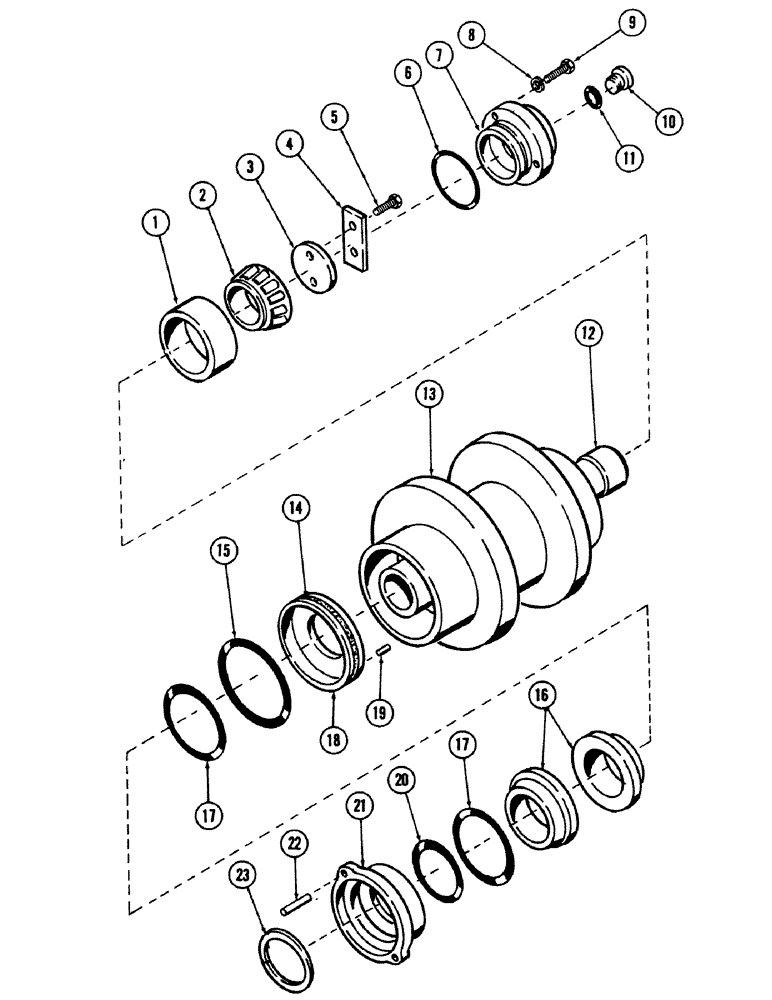

Запчасти Case 40 (058) - DOUBLE FLANGE TRACK ROLLER (48) - TRACKS & TRACK SUSPENSION

S233033

ROLLER

double flange track - Includes: Ref. 1 - 23

4шт.

VERIFY: Prior to ordering internal replacement parts, further identification is required. Check roller for manufacturer's stamping. If large letter "I" appears order from Figure 56. For rollers not stamped with the letter "I" order from Figure 58.

1шт.

1

S115336

ROLLER BEARING

CUP, bearing

2шт.

2

S115335

BEARING, ROLLER

CONE, bearing

2шт.

3

S115326

PLATE

1шт.

4

S115325

LOCK

1шт.

5

28-614

BOLT,Hex, 3/8" - 24 x 7/8", Gr 8, Full Thd

BOLT - 3/8" NF x 7/8" Gr 8

2шт.

6

S115324

SEAL

1шт.

7

S115323

SPACER

COVER

1шт.

8

192-161

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

9

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

- 3/8" NC x 7/8" Gr 8

3шт.

10

S113081

PLUG

1шт.

11

S64691

SEAL

1шт.

12

S115327

SHAFT

1шт.

13

S115328

ROLLER

1шт.

14

S115337

CORK

2шт.

15

S89313

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL

1шт.

16

S95098

SEAL

ASSEMBLY, Includes: Ref. 17

1шт.

17

S97896

RING

- (Rubber)

2шт.

18

S115329

SUPPORT

ASSEMBLY, Includes: Ref. 19

1шт.

19

S115330

DOWEL

2шт.

20

S115334

SEAL,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1шт.

21

S115332

COLLAR

ASSEMBLY, Includes: Ref. 22

1шт.

22

S115333

DOWEL

2шт.

23

S115331

RING

1шт.
