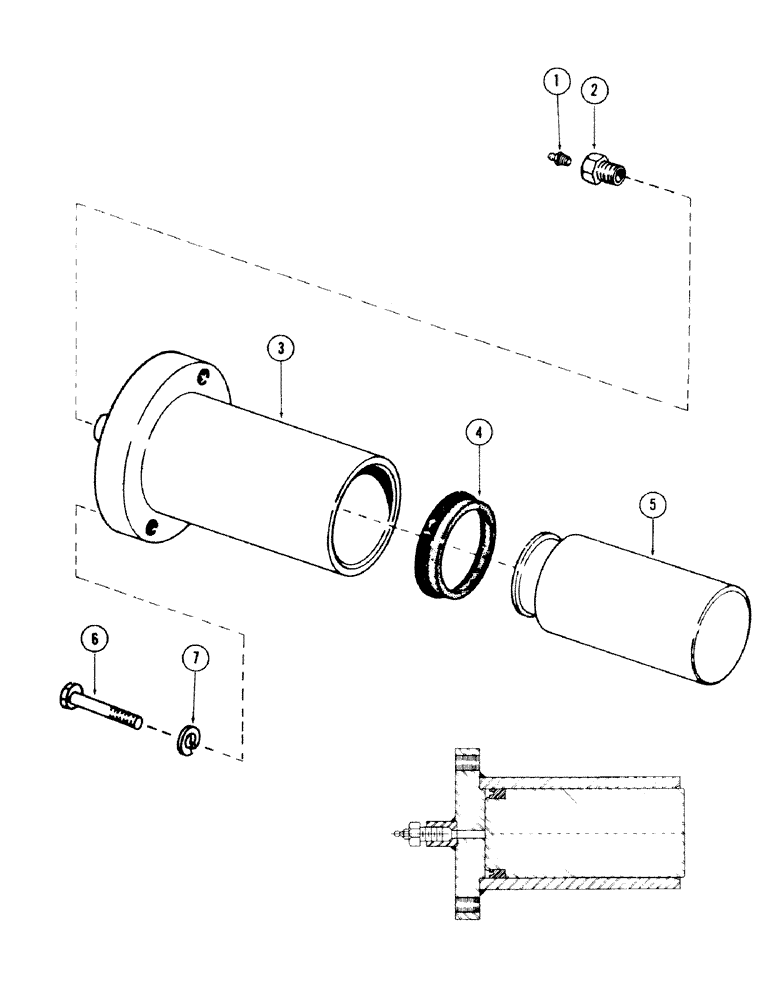

Запчасти Case 40 (052) - TRACK ADJUSTMENT CYLINDER (48) - TRACKS & TRACK SUSPENSION

S514603

CYLINDER

- track adjustment, Includes: Ref. 1 - 5

2шт.

1

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube

1шт.

2

D35287

CHECK VALVE,5/8" - 18

CHECK - "A" ball

1шт.

3

S514604

CYLINDER,3" ID x 7.5" L

TUBE - cylinder

1шт.

4

S78837

SEAL

1шт.

5

S239313

PISTON

1шт.

6

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Mounts cylinder to track frame Hex, 1/2"-13 x 2", G5

2шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.
