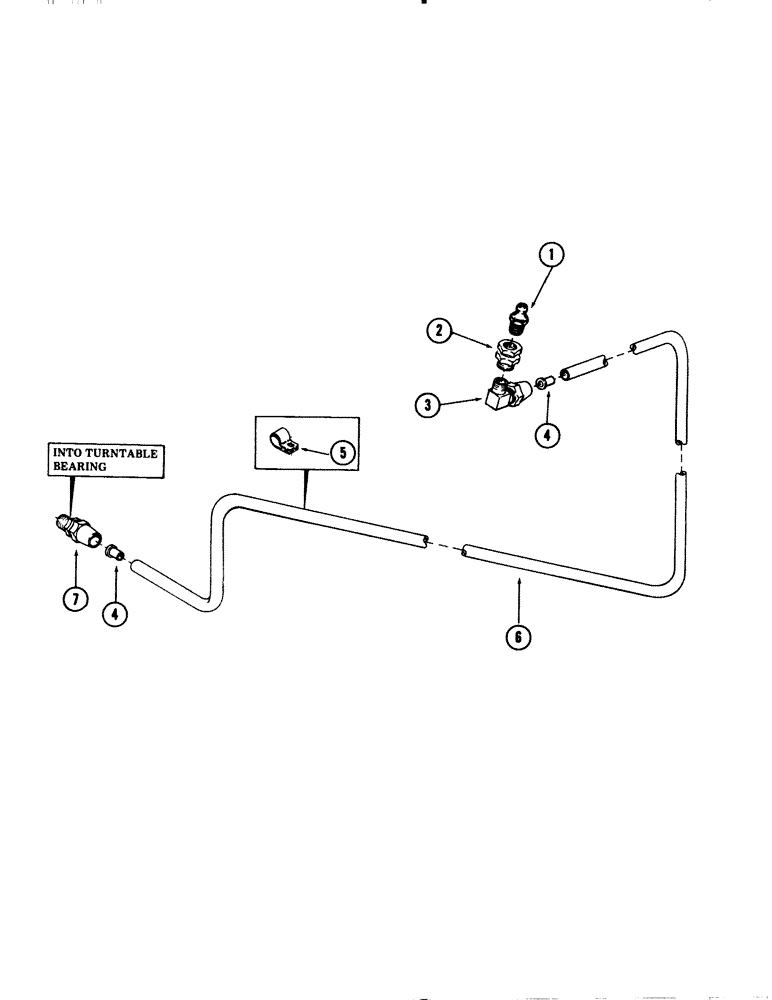

Запчасти Case 40 (092) - TURNTABLE BEARING LUBRICATION LINE (39) - FRAMES AND BALLASTING

1

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" NPT (Straight)

1шт.

2

217-226

COUPLING

- 1/8" NPT female x 1/8" NPT female

1шт.

3

222-1847

ELBOW,90 Degree, 17/32"-24 x 1/8" NPT, Comp

90 degrees - 1/8" NPT male x 3/8" tube

1шт.

4

222-2446

INSERT,1/4" Tube

SLEEVE - (For 3/8" OD nylon tube)

2шт.

5

A61275

CLIP

CLAMP

1шт.

6

REF

INSTRUCTION

TUBE, nylon - 52" long - cut from S118405

1шт.

7

222-1839

FITTING,17/32"-24 x 1/8" NPT

UNION - 1/8" NPT male x 3/8" tube

1шт.

S118405

HOSE,600.00", SAE J844

600.00", SAE J844

1шт.
