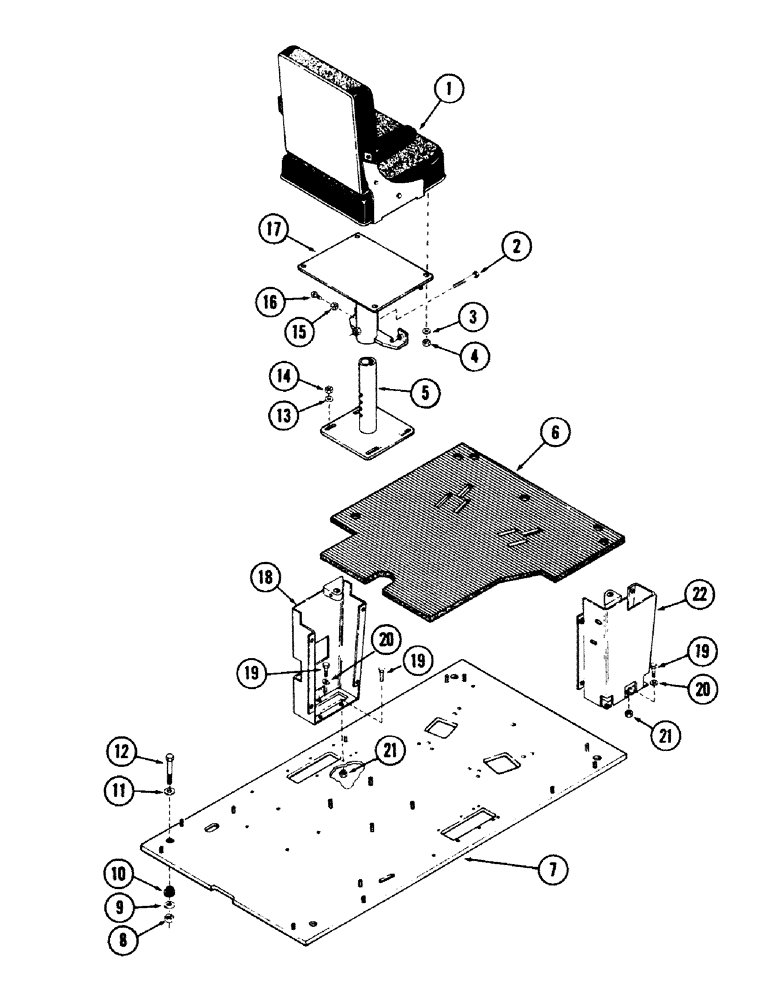

Запчасти Case 40 (086) - TURNTABLE ATTACHING PARTS INSIDE OF OPERATORS CAB (39) - FRAMES AND BALLASTING

1

REF

INSTRUCTION

SEAT ASSEMBLY - (For breakdown, see Figure 88)

1шт.

2

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

Seat adjustment Hex, 1/2"-13 x 3 1/2", G5

1шт.

3

195-104

WASHER,3/8"

- flat, 7/16"

4шт.

4

131-205

LOCK NUT,5/16"-18

NUT - self locking, 5/16" NC, seat to braket

4шт.

5

S515219

BRACKET

- seat mounting, lower

1шт.

6

S615520

MAT

- floor

1шт.

7

S956150

PLATE

- floor

1шт.

8

131-450

NUT,3/4"-10

NUT - self locking, 3/4" NC

4шт.

9

S114915

WASHER

- flat, 3/4"

4шт.

10

S112578

MOUNTING PARTS

MOUNT - center bonded

4шт.

11

195-2270

WASHER,13/16" x 3" x .238", HDN

- flat, 3/4"

4шт.

12

13-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- 3/4" x 4-1/4" NC hex (Grade 5), floor plate to turntable

4шт.

13

S95569

WASHER

- flat, 1/2"

4шт.

14

131-70

NUT,1/2"-13, GB

NUT - self locking, 1/2" NC, bracket to floor plate

4шт.

15

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

16

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Bracket to bracket Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

17

S616417

BRACKET

- seat mounting, upper

1шт.

18

S615425

SUPPORT

- hand control (Left hand)

1шт.

19

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

6шт.

20

195-104

WASHER,3/8"

- flat, 7/16"

3шт.

21

131-52

NUT,3/8"-16, GC

NUT - self locking, 3/8" NC

6шт.

22

S615423

SUPPORT

- hand control (Right hand)

1шт.
