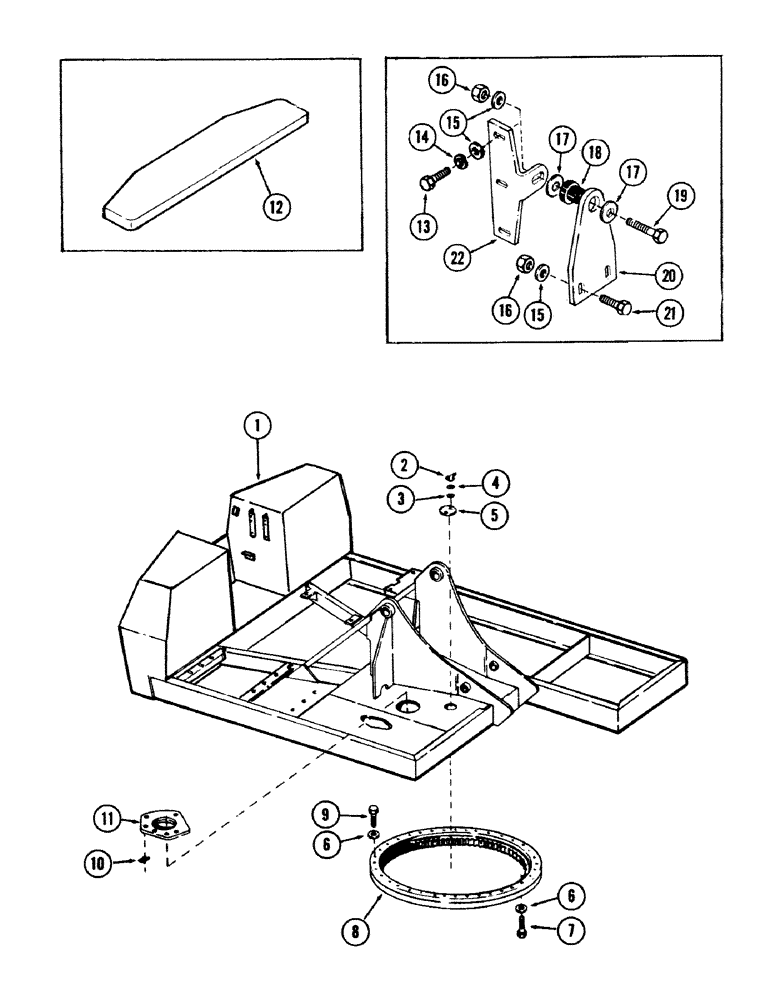

Запчасти Case 40 (084) - TURNTABLE, BEARING AND RELATED PARTS (39) - FRAMES AND BALLASTING

1

S615639

TURNTABLE WITH COUNTERWEIGHT

1шт.

ANOTHER TURNTABLE USED (NOT A SUB) USE S956816 AND S516532.

1шт.

2

S77941

NUT - wing, 3/8" NC

2шт.

3

195-103

WASHER,5/16"

- flat, 3/8"

2шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

S76664

COVER

- bearing access and cleaning hole

1шт.

6

S92353

WASHER

- hardened, 5/8"

72шт.

7

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- 5/8" x 2" NC hex (Grade 8)

36шт.

8

S508668

SLEWING RING

BEARING - turntable

1шт.

SEAL USED WITH BEARING IS S105067

1шт.

9

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- 5/8" x 2-1/4" NC hex (Grade 8)

36шт.

10

S77916

SHIM,.005" Thk

Reducer plate to turntable .005" Thk

1шт.

S77917

SHIM,.010" Thk

Reducer plate to turntable .010" Thk

1шт.

S77918

SHIM,.015" Thk

Reducer plate to turntable .015" Thk

1шт.

S77919

SHIM,.030" Thk

Reducer plate to turntable .030" Thk

1шт.

S77920

SHIM,.060" Thk

Reducer plate to turntable .060" Thk

1шт.

S84889

SHIM,.003" Thk

Reducer plate to turntable .003" Thk

1шт.

S84890

SHIM,.007" Thk

Reducer plate to turntable .007" Thk

1шт.

11

S613347

PLATE

- swing reducer mounting

1шт.

ANOTHER PLATE USED (NOT A SUB) USE S516531

1шт.

12

S615516

COUNTERWEIGHT - auxliliary (Welds to underside of turntable)

1шт.

13

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

(Bracket to cab) Hex, 1/2"-13 x 1 3/4", G5

3шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

15

S95569

WASHER

- flat, 1/2"

6шт.

16

131-70

NUT,1/2"-13, GB

NUT - self locking, 1/2" NC

3шт.

17

196-10

WASHER,.521" x 2" x .134", HDN

- flat (Special)

2шт.

18

S110886

MOUNTING PARTS

MOUNT - rubber

1шт.

19

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- 1/2" x 2-1/2" NC hex (Grade 5) (Bracket to bracket)

1шт.

20

S238103

BRACKET

1шт.

21

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5 (Bracket to turntable mast ears)

2шт.

22

S514820

BRACKET

1шт.

23

240-13

SHACKLE

- (For crawler front on mast ears) (Not illustrated)

2шт.

TURNTABLE LUBE CAN ORDER 331-437

1шт.
