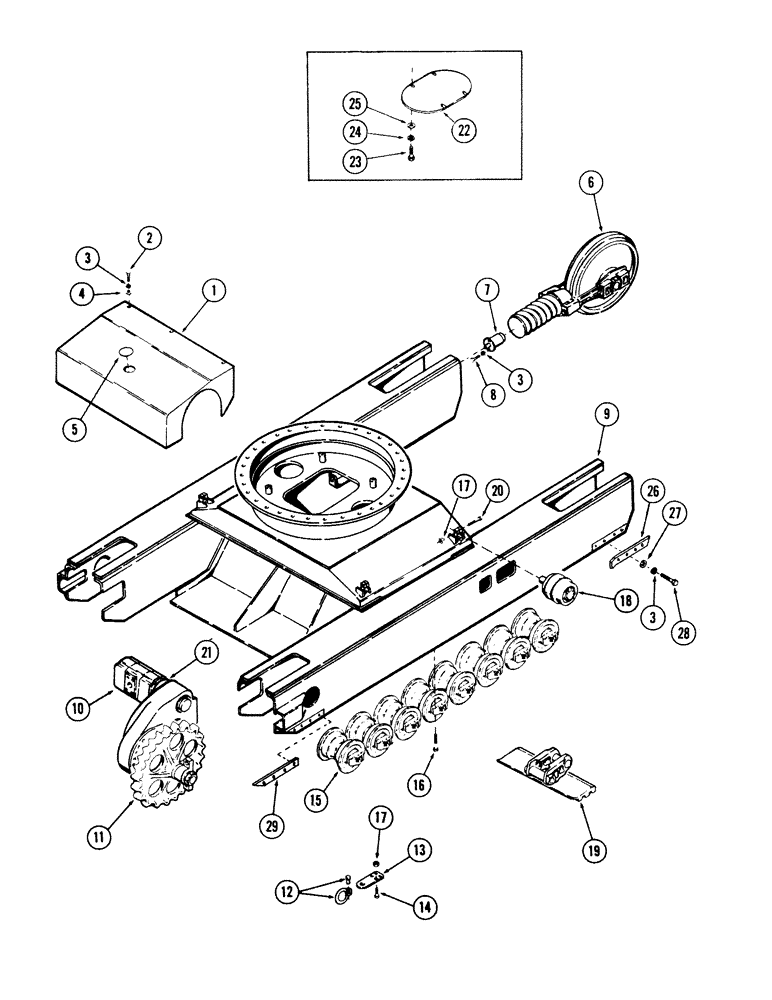

Запчасти Case 40 (046) - CRAWLER UNDERCARRIAGE AND ATTACHING PARTS (39) - FRAMES AND BALLASTING

1

S612149

COVER, track motor

1шт.

ANOTHER COVER USED (NOT A SUB) S616655.THEN ANOTHER COVER USED (NOT A SUB) S516739.

1шт.

2

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

7шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

4

195-105

WASHER,7/16"

flat - 1/2"

1шт.

5

S105894

CAP

PLUG

1шт.

6

REF

INSTRUCTION

TRACK ADJUSTER ASSEMBLY - (For breakdown, see Figure 50)

2шт.

7

REF

INSTRUCTION

CYLINDER, trak adjustment - (For breakdown, see Figure 52)

2шт.

8

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

9

S612166

SUPPORT

BEARING SUPPORT

1шт.

10

REF

INSTRUCTION

MOTOR, track drive - (For breakdown, see Figure 216 or 218)

2шт.

11

REF

INSTRUCTION

TRANSMISSION, final drive - (For breakdown, see Figures 62 & 64)

2шт.

12

240-11

SHACKLE

round pin - (Optional)

1шт.

13

S209710

PLATE

DRAW BAR - (Optional)

1шт.

14

113-731

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

- 3/4" NC x 3-1/4" Gr 5

4шт.

15

REF

INSTRUCTION

ROLLER, track - (For breakdown, see figure 54)

16шт.

16

26-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

- 5/8" NC x 3-1/2" Gr 8

64шт.

17

131-492

NUT,1/2"-13

NUT, self locking - 5/8" NC

8шт.

18

REF

INSTRUCTION

ROLLER, track - (For breakdown, see figure 56 or 58)

4шт.

19

REF

INSTRUCTION

TRACK ASSEMBLY - (For breakdown, see figure 60)

2шт.

20

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

4шт.

SHOULD USE PART 113-450

1шт.

21

REF

INSTRUCTION

BRAKE, track - (For breakdown, see Figure 66)

2шт.

22

S237690

GUARD

swivel

1шт.

23

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

24

80682

LOCK WASHER,1/4"

Washer, Lock, 1/4"

4шт.

25

195-104

WASHER,3/8"

flat - 3/8"

4шт.

26

S511363

BAR

wear - (Right hand)

2шт.

27

196-15

WASHER,17/32" x 1 1/6" x .134"

flat - 1/2"

16шт.

28

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

- 1/2" NC x 1-1/2" Gr 8 - (Bars to track frame)

16шт.

29

S511364

BAR ASSY.

BAR, wear - (Left hand)

2шт.

REFER TO ILLUSTRATION PAGE, REF 29 NOT AT THIS END SHOULD BE SHOWN AT IDLER END.

1шт.
