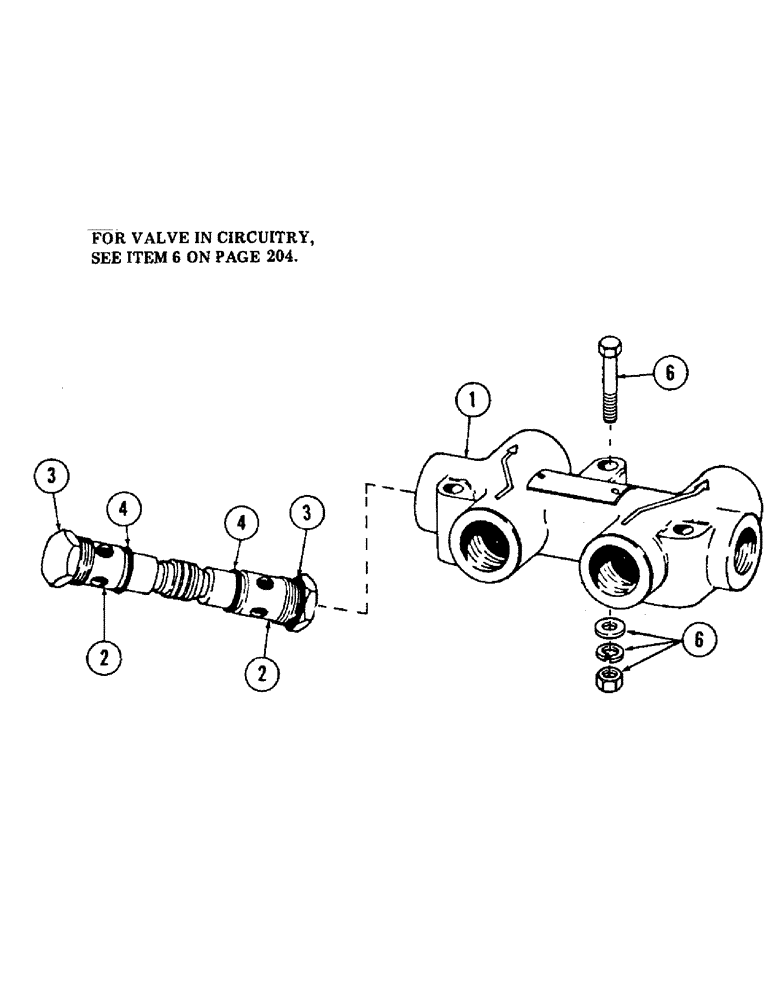

Запчасти Case 40 (240) - LEVELER CHECK VALVE (35) - HYDRAULIC SYSTEMS

S33333

CHECK VALVE

VALVE, leveler check

1шт.

1

NSS

NOT SOLD SEPARAT

BODY, valve

1шт.

2

S61961

CHECK VALVE

CARTRIDGE, double acting

1шт.

3

S12814

"O" RING, plug

2шт.

4

D48820

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

"O" RING, sleeve and poppet

2шт.

5

S96675

SPRING

(Not illustrated)

1шт.

6

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5

2шт.

195-102

WASHER,1/4"

flat - 5/16"

2шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.
