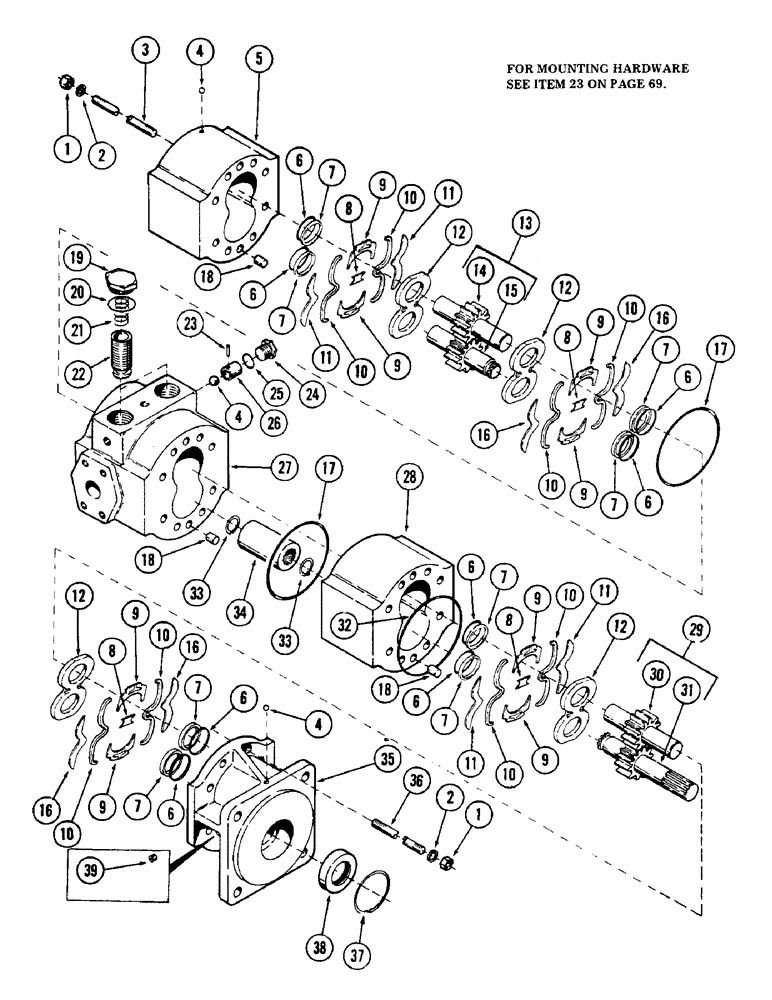

Запчасти Case 40 (238) - TRACK DRIVE MOTOR, (DUAL SPEED) (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
S511216
MOTOR
track drive
2шт.
1
L32829
NUT
16шт.
2
A39046
WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk
16шт.
3
S109072
STUD, rear section
8шт.
4
211-7
BALL,1/4" Dia
4шт.
5
S109070
BODY
rear section
1шт.
L32840
BUSHING
(Not illustrated)
2шт.
6
S113612
O-RING
"O" RING
8шт.
7
S113607
OIL SEAL
RING, back up
8шт.
8
S113609
SEPARATOR
center
4шт.
9
S113608
SEPARATOR
end
8шт.
10
S108887
STRAP
STRIP, sealing
8шт.
11
S108884
LARGE PLATE
PLATE, isolation (Bottom)
4шт.
12
S98638
PLATE
pressre
4шт.
13
S109081
KIT
rear gear
1шт.
14
NSS
NOT SOLD SEPARAT
GEAR, idler
1шт.
15
NSS
NOT SOLD SEPARAT
GEAR, drive
1шт.
16
S108885
LARGE PLATE
PLATE, isolation (Top)
4шт.
17
S113611
O-RING
"O" RING
2шт.
18
D41414
PIN
DOWEL
6шт.
19
S98723
PLUG
2шт.
20
S98719
O-RING
"O" RING
2шт.
21
S98718
SPRING
2шт.
22
S109075
PISTON
2шт.
23
138-19
Pin, 5/64" x 7/16", Slotted 5/64" x 7/16", Slotted
2шт.
24
S98649
PLUG
2шт.
25
218-5005
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
2шт.
26
S98720
SEAT
2шт.
27
S109074
PLATE, bearing
1шт.
L32840
BUSHING
(Not illustrated)
2шт.
28
S109069
BODY
front section
1шт.
L32480
BUSHING
(Not illustrated)
2шт.
29
S109080
GEAR
KIT, front gear
1шт.
30
NSS
NOT SOLD SEPARAT
GEAR, idler
1шт.
31
NSS
NOT SOLD SEPARAT
GEAR, drive
1шт.
32
S113610
O-RING
"O" RING
1шт.
33
A36277
SNAP RING,1.125", Int, #112
2шт.
34
S109076
COUPLING
spline
1шт.
35
S109073
FLANGE
mounting
1шт.
L32840
BUSHING
(Not illustrated)
2шт.
36
S109071
STUD
front section
8шт.
37
D41419
RING
snap
1шт.
38
S98646
SEAL
1шт.
39
L35776
PLUG
seal drain
2шт.
40
S98651
SEAL
KIT, seal (Consists of items 32 and 38)
1шт.
41
S109077
VALVE BLOCK
KIT, front section (Consists of items 4, 6 thru 12, 16 thru 18, 28, 29, 32 thru 35 and 37 thru 39)
1шт.
42
S109078
VALVE BLOCK
KIT, rear section (Consists of items 4 thru 13, 16 thru 27, 33 and 34)
1шт.
43
S109079
KIT
pressure balance (Consists of items 6, 7, 10, 17 and 32)
1шт.
