Запчасти Case 40 (234) - SWING MOTOR (35) - HYDRAULIC SYSTEMS

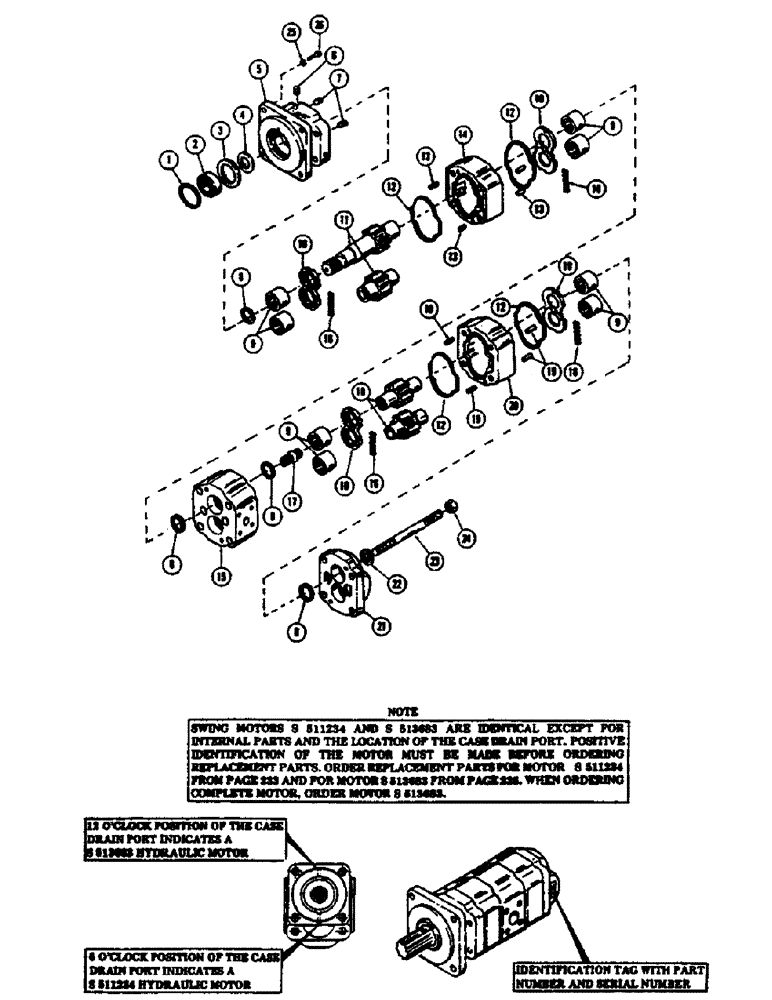

Схема запчастей Case 40 - (234) - SWING MOTOR (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

S513683

MOTOR

swing (Supersedes S511234) (See note on Art)

1шт.

1

S88756

SNAP RING,#283, 3.009", Int, Spiral

RING, snap

1шт.

2

S88754

BALL BEARING

BEARING, ball

1шт.

3

S94909

COVER

RETAINER

1шт.

4

S94907

SEAL

lip

1шт.

5

S111864

VALVE POPPET

COVER, shaft end

1шт.

6

221-12

PLUG,Sq Hd, 1/4"-18

pipe

1шт.

7

S61749

VALVE

CHECK ASSEMBLY

2шт.

8

L32319

SEALING RING,32.68mm ID x 44.88mm OD x 3.81mm Thk

ring

4шт.

9

D31942

ROLLER BEARING,1.29" ID x 1.9375" OD x 1.125"

BEARING, roller

8шт.

10

S115573

LARGE PLATE

PLATE, thrust

4шт.

11

D94912

GEAR SET

1шт.

12

D41391

O-RING

GASKET

4шт.

13

W16323

DOWEL

PIN, dowel

4шт.

14

S115574

HOUSING

gear

1шт.

15

S114863

CARRIER

bearing

1шт.

16

E19465

SEAL

pocket, Serial Range: (Cut-length)

2шт.

17

L32324

SHAFT

connecting

1шт.

18

S115575

GEAR-SET

GEAR SET

1шт.

19

W16323

DOWEL

PIN, dowel

4шт.

20

S115576

HOUSING

gear

1шт.

21

S113567

COVER

port end

1шт.

22

D31957

WASHER

flat - 1/2"

4шт.

23

S76269

STUD

4шт.

24

86625068

NUT,5/8"-11, G8

- 5/8" NC

4шт.

25

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

26

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

Выбрано товаров: 27
