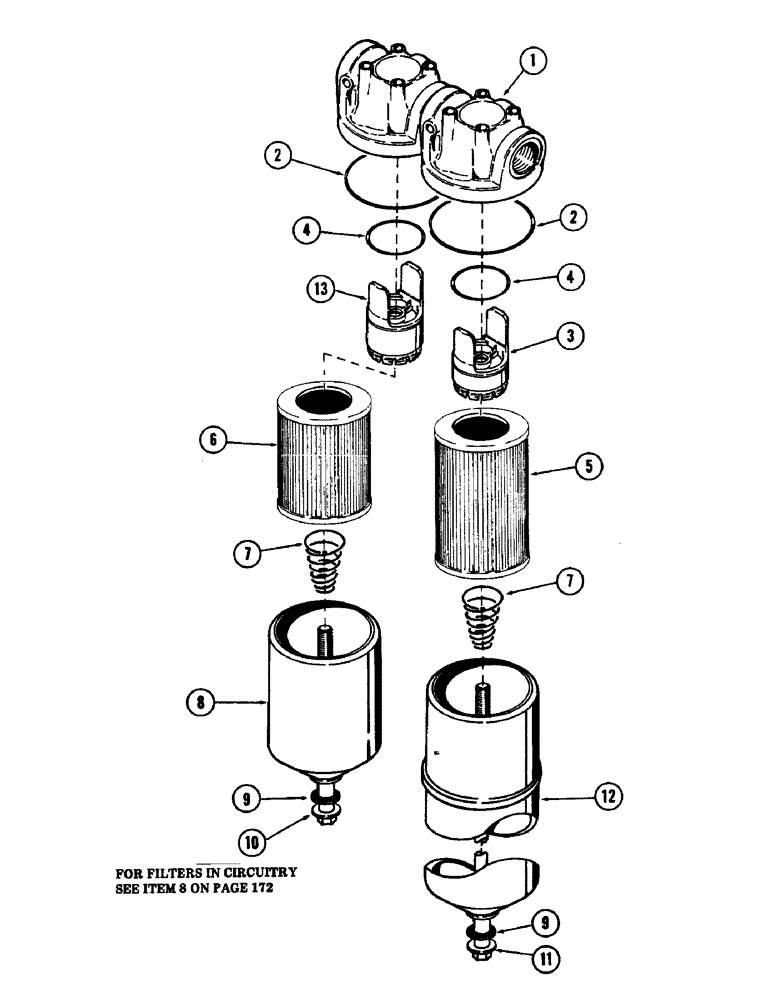

Запчасти Case 40 (226) - HYDRAULIC OIL FILTER, (USED ON UNITS WITH PIN 6270901 AND AFTER) (35) - HYDRAULIC SYSTEMS

S514150

FILTER - hydraulic oil

2шт.

1

S116426

HEAD

filter

1шт.

2

S107789

O-RING

2шт.

3

S108483

FILTER

VALVE - by-pass

1шт.

4

S107967

O-RING,2.109" ID x 0.139" Width

2шт.

5

S111605

ELEMENT

- filter

1шт.

6

S116427

ELEMENT

- strainer

1шт.

7

S104930

SPRING

- coil

2шт.

8

S113853

HOUSING

- filter

1шт.

9

S107793

SEALING WASHER

WASHER - gasket

2шт.

10

S111607

BOLT

- hex hd

1шт.

11

S107794

BOLT

- hex hd

1шт.

12

S116429

HOUSING

- filter

1шт.

13

S116766

VALVE

- strainer

1шт.

14

S111118

ELEMENT

filter (Use as element to flush hydraulic system) (Not illustrated)

1шт.
