Запчасти Case 40 (224) - HYDRAULIC OIL FILTER, (USED ON UNITS WITH PIN 6270716 THRU 6270900) (35) - HYDRAULIC SYSTEMS

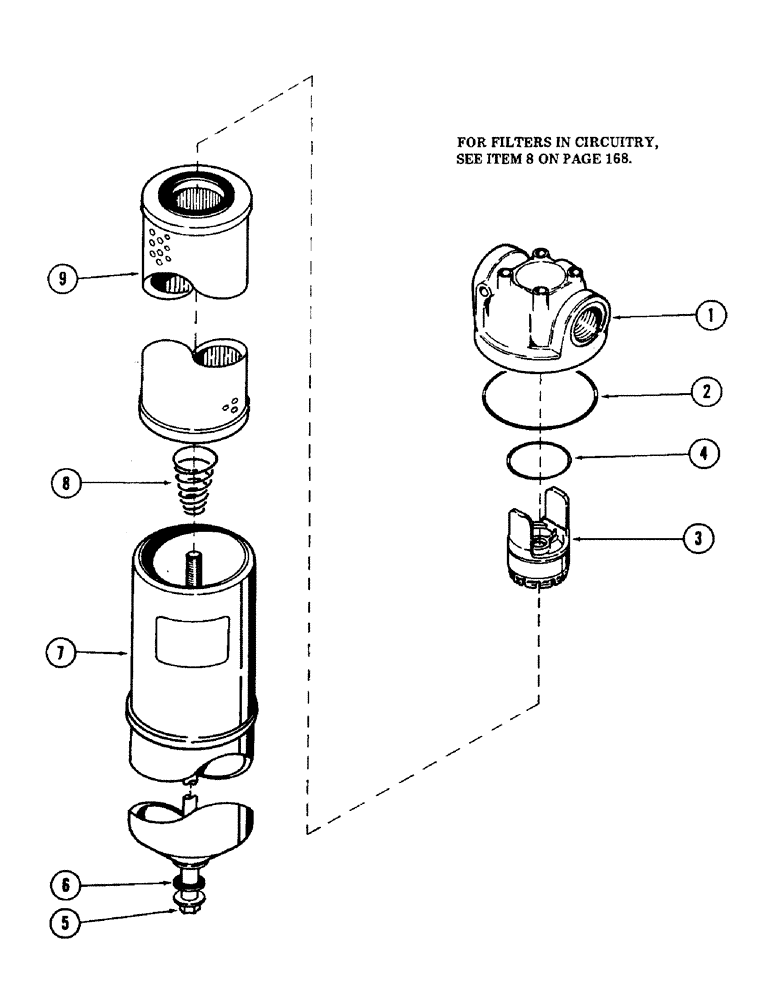

Схема запчастей Case 40 - (224) - HYDRAULIC OIL FILTER, (USED ON UNITS WITH PIN 6270716 THRU 6270900) (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

S513097

FILTER

hydraulic oil

2шт.

1

S108482

HEAD

1шт.

2

S107789

O-RING

"O" RING

2шт.

3

S108483

FILTER

INDICATOR

1шт.

4

S107967

O-RING,2.109" ID x 0.139" Width

"O" RING

1шт.

5

S111607

BOLT

1шт.

6

S107793

SEALING WASHER

GASKET

1шт.

7

S113853

HOUSING

1шт.

8

S104930

SPRING

1шт.

9

S111605

ELEMENT

filter (10 micron)

1шт.

10

S111118

ELEMENT

filter (Use as element to flush hydraulic system) (Not illustrated)

1шт.

Выбрано товаров: 11
