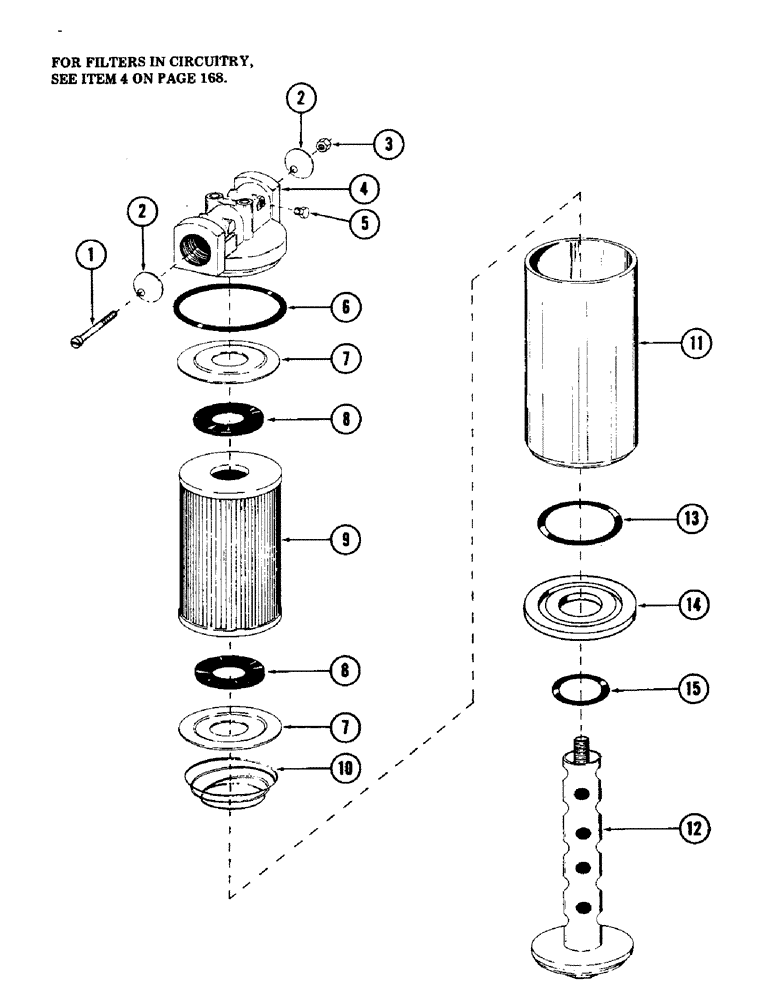

Запчасти Case 40 (222) - HYDRAULIC OIL STRAINER, (USED ON UNITS WITH PIN 6270716 THRU 6270900) (35) - HYDRAULIC SYSTEMS

S613014

FILTER

STRAINER ASSEMBLY, hydraulic oil

2шт.

NSS

NOT SOLD SEPARAT

STRAINER, hydraulic oil

1шт.

1

16986

SCREW

1шт.

2

T29785

VALVE

by-pass

2шт.

3

131-552

NUT,#8-32

NUT

1шт.

4

S60100

HEAD

1шт.

5

221-1663

PLUG,Hex Hd, 3/8"-18

pipe - 3/8" NPT male

1шт.

6

T29789

SEALING RING,4.35" ID x 0.25" Width

"O" RING

1шт.

7

T42195

WASHER

back up

2шт.

8

W12214

GASKET

2шт.

9

S89348

FILTER, ENGINE OIL

ELEMENT, strainer (100 mesh screen)

1шт.

10

T29793

SPRING

conical

1шт.

11

W11815

HOUSING

filter

1шт.

12

T29796

SUPPORT

POST, center (Cast iron)

1шт.

13

S6099

O-RING

"O" RING - 3.234" ID x 3.500 OD

1шт.

14

S235887

PLATE

1шт.

15

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

"O" RING - 2.234" ID x 2.500" OD

1шт.
