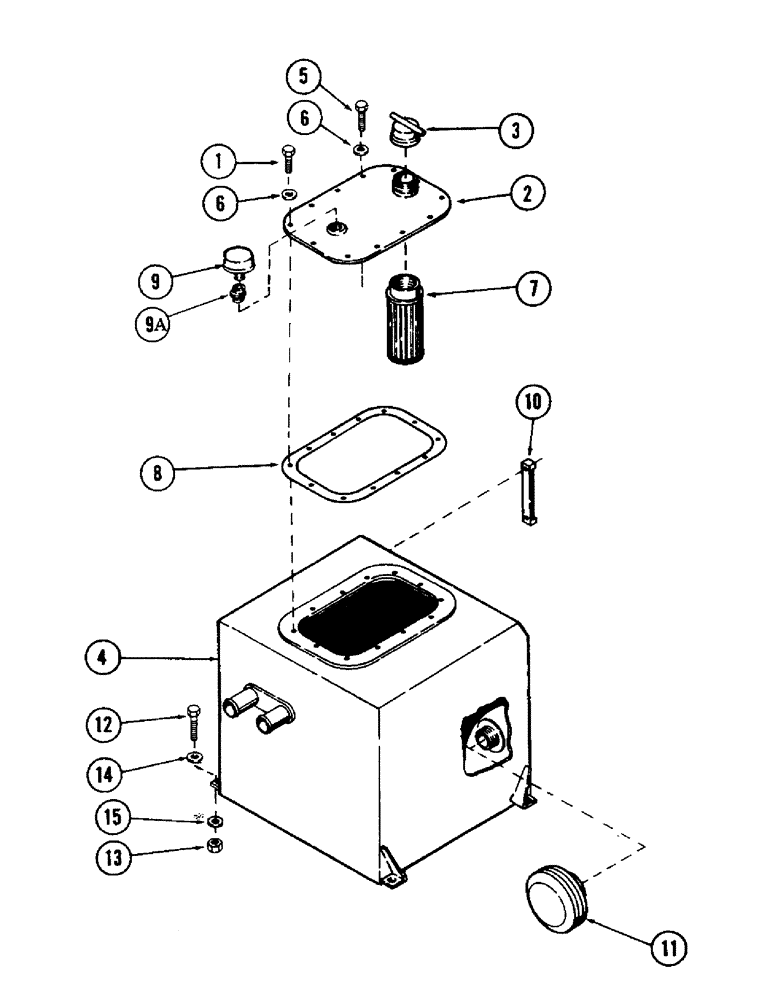

Запчасти Case 40 (218) - HYDRAULIC OIL TANK AND RELATED PARTS (35) - HYDRAULIC SYSTEMS

S613279

TANK

ASSEMBLY, hydraulic oil

1шт.

1

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

2

S236359

COVER

1шт.

3

S230688

CAP

1шт.

4

S612899

TANK

hydraulic oil

1шт.

5

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

8шт.

6

195-102

WASHER,1/4"

flat - 5/16"

12шт.

7

S107379

FILTER, ENGINE OIL

STRAINER

1шт.

8

S230621

GASKET

cover

1шт.

9

S115102

AIR CLEANER

BREATHER (See note below)

1шт.

9a

S115101

ADAPTER

1шт.

10

S107269

GAUGE

oil level

1шт.

11

S107145

DIFFUSER

2шт.

12

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

13

113-52

BOLT,Hex, 1/4" - 20 x 6", Gr 5

NUT, self locking - 3/8" NC

4шт.

14

195-103

WASHER,5/16"

flat - 3/8"

4шт.

15

195-103

WASHER,5/16"

flat - 3/8" (Used as shims)

1шт.
