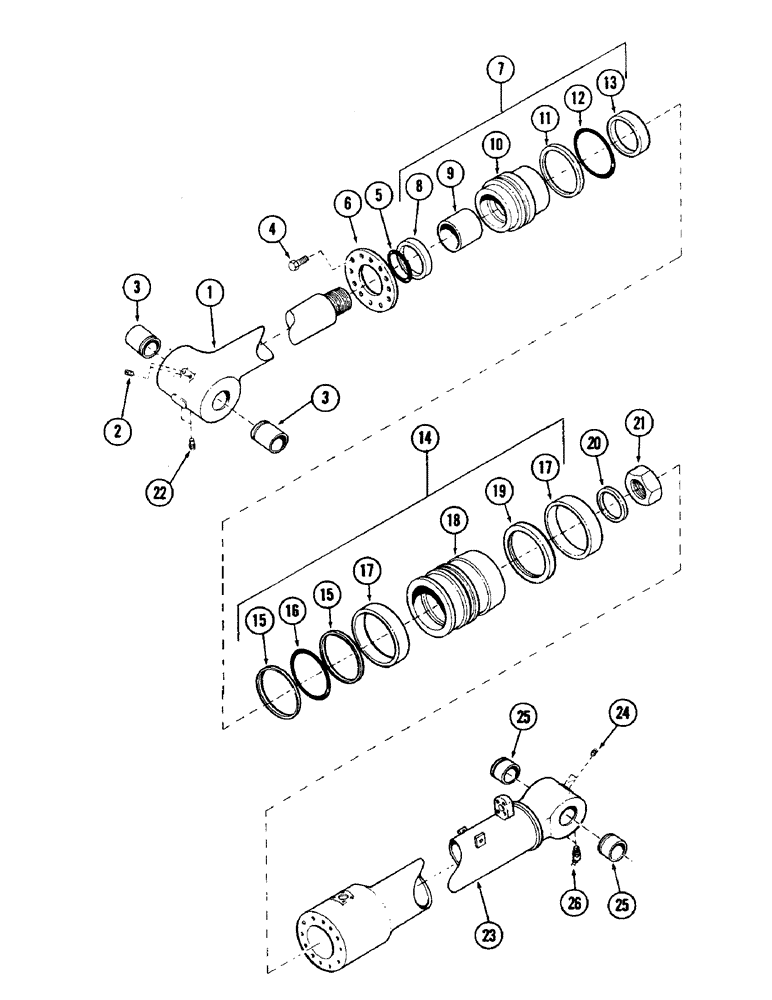

Запчасти Case 40 (210) - HOIST CYLINDER, (6.50" ID X 54.50" STROKE) (35) - HYDRAULIC SYSTEMS

S955896

CYLINDER, hoist (Supersedes S955283)

1шт.

1

S511566

ROD

1шт.

2

S14335

SCREW

set

2шт.

3

S234899

BUSHING

2шт.

4

28-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 8

(Supersedes S12440)

12шт.

5

D36103

O-RING,0.139" Thk x 5.609" ID, -255, Cl 5, 75 Duro

"O" RING

12шт.

6

S511562

PLATE

1шт.

7

GLAND ASSEMBLY, order S115706

1шт.

8

S108245

WIPER SEAL

WIPER, rod

1шт.

9

S234898

NYLON BEARING,101.6mm ID x 111mm OD x 75.95mm L

BEARING, nylon

1шт.

10

S115699

GLAND

(Supersedes S109537)

1шт.

11

S6881

RING

back up

1шт.

12

S6352

O-RING,6.984" ID x 7.262" OD x 0.139"

"O" RING - 6.984" ID x 7.250" OD

1шт.

13

S108244

SEAL

rod

1шт.

14

S232680

PISTON

ASSEMBLY

1шт.

15

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

2шт.

16

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING

1шт.

17

S109539

WEAR RING,Split, 158.75mm ID x 165.1mm OD x 38.1mm Thk

RING, WEAR

2шт.

18

S511568

PISTON

1шт.

19

S228607

SEAL,145.16mm ID x 166.85mm OD x 9.32mm Thk

SEAL

1шт.

20

S109535

WASHER

1шт.

21

S232681

NUT

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" NPT (Straight)

2шт.

23

S611331

TUBE,6.5" DIA x 68.7" L

1шт.

24

S14335

SCREW

set

2шт.

25

S234899

BUSHING

2шт.

26

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

27

S115706

GLAND

KIT, gland repair (Items 7 thru 13) (Supersedes S111627)

1шт.

28

S111969

SEAL,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

KIT, seal repair (Includes items 8 thru 13, 15 thru 17 and 19)

1шт.
