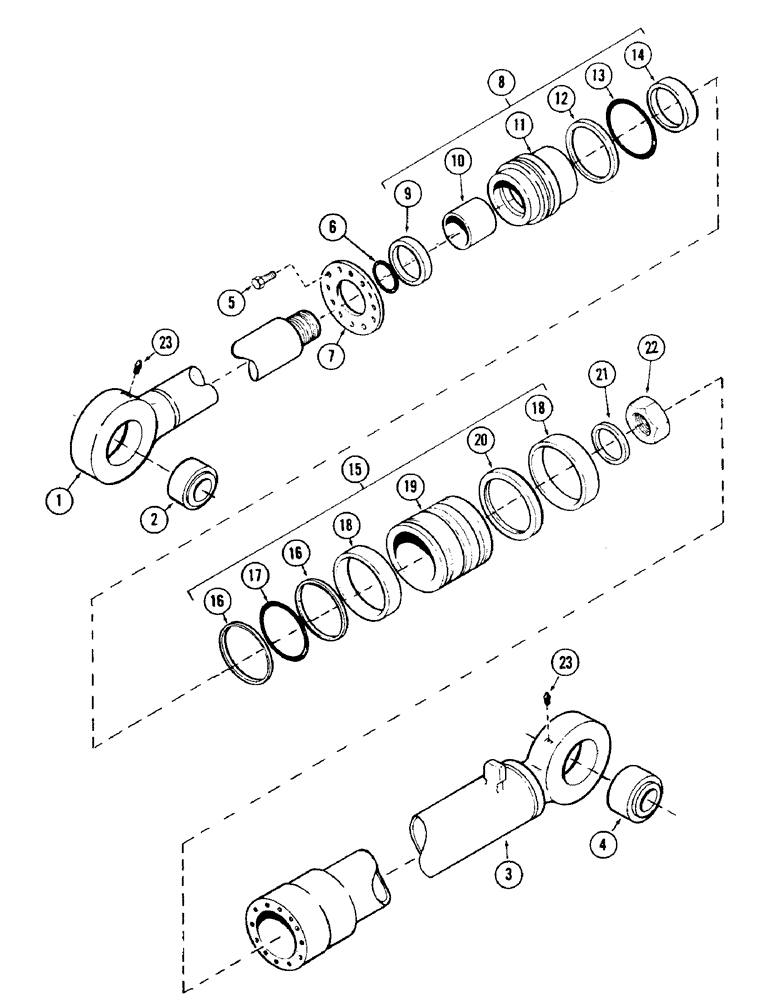

Запчасти Case 40 (206) - CROWD CYLINDER, (6.50" ID X 47.50" STROKE), (USED WITH "E" BOOM) (35) - HYDRAULIC SYSTEMS

S955897

CYLINDER

crowd (Supersedes S955285)

1шт.

1

S611327

ROD

1шт.

2

S104419

BUSHING

1шт.

3

S611323

TUBE,0.5" DIA x 64.2" L

1шт.

4

S104419

BUSHING

1шт.

5

28-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 8

12шт.

6

D36103

O-RING,0.139" Thk x 5.609" ID, -255, Cl 5, 75 Duro

"O" RING

1шт.

7

S511562

PLATE

1шт.

8

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY

1шт.

9

S108245

WIPER SEAL

WIPER, rod

1шт.

10

S234898

NYLON BEARING,101.6mm ID x 111mm OD x 75.95mm L

BEARING, nylon

1шт.

11

S115699

GLAND

(Supersedes S109537)

1шт.

12

G102582

BACK-UP RING

RING, back up (Supersedes S6881)

1шт.

13

S6352

O-RING,6.984" ID x 7.262" OD x 0.139"

"O" RING - 6.984" ID x 7.250" OD

1шт.

14

S108244

SEAL

rod

1шт.

15

S232680

PISTON

ASSEMBLY

1шт.

16

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

2шт.

17

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING

1шт.

18

S109539

WEAR RING,Split, 158.75mm ID x 165.1mm OD x 38.1mm Thk

RING, WEAR

2шт.

19

S511568

PISTON

1шт.

20

S228607

SEAL,145.16mm ID x 166.85mm OD x 9.32mm Thk

SEAL

1шт.

21

S109535

WASHER

1шт.

22

S232681

NUT

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" NPT (Straight) (Supersedes S12031)

2шт.

24

S115706

GLAND

KIT, gland repair (Items 8 thru 14)

1шт.

25

S111969

SEAL,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

KIT, seal repair (Includes items 9, 10, 12, 13, 14, 16, 17, 18 and 20)

1шт.
