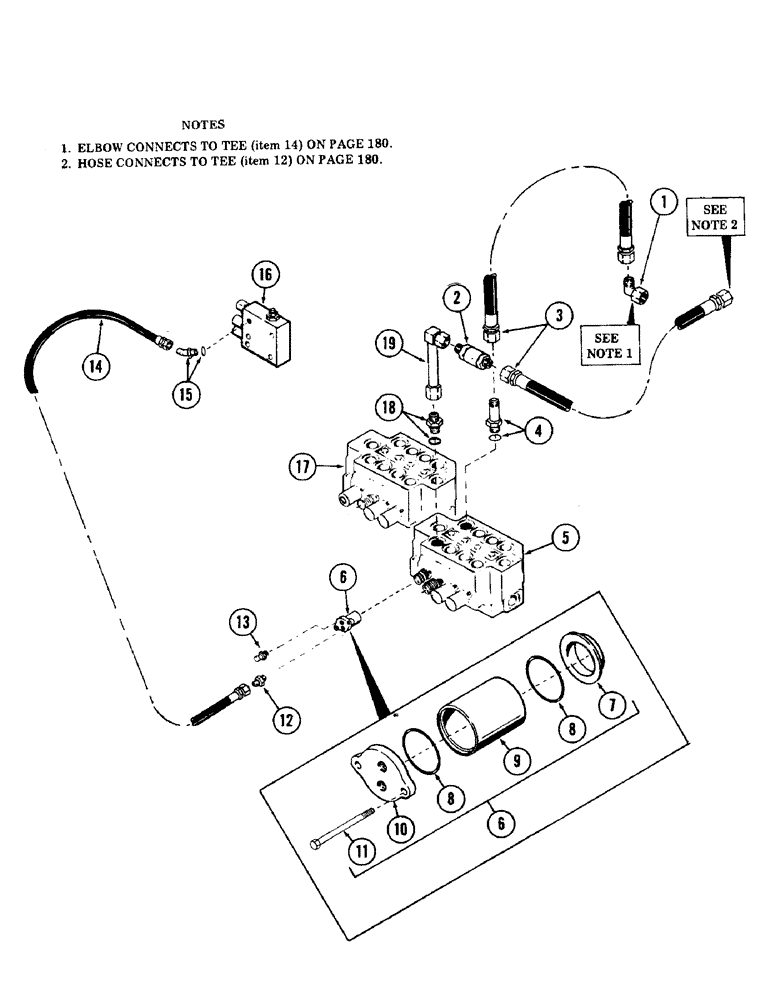

Запчасти Case 40 (202) - FAST HOIST TUBING (35) - HYDRAULIC SYSTEMS

1

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

(1" tube)

1шт.

2

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

VALVE, check

1шт.

3

S8628

HOSE

High pressure - 1" ID x 36" long (With 1-5/16"-12 female pressed on couplings)

2шт.

4

S66480

CONNECTOR, ELEC

CONNECTOR Straight (1" tube) - 1-5/16"-12 male x 1-5/16"-12 male - 37 degrees flared

1шт.

S6069

O-RING,1.171" ID x 0.116" Width

1шт.

5

REF

INSTRUCTION

VALVE, 4-spool main control (Inside) (For breakdown, see Figure 258)

1шт.

6

S232345

KIT

Spool end cap

1шт.

7

S111267

WASHER

1шт.

8

S6394

O-RING

2шт.

9

S111268

SLEEVE

TUBE, cylinder

1шт.

10

S111269

HEAD

1шт.

11

S95658

BOLT

3/8" NC x 3-1/4" Gr 8

2шт.

12

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

Adapter (3/8" tube)

1шт.

13

D46258

PLUG

SCREW, bleeder

1шт.

14

S227396

HOSE ASSY.

High pressure - 3/8" ID x 50" long (With 9/16"-18 female pressed on couplings)

1шт.

15

S11252

ELBOW

45 degrees adjustable (3/8" tube) - 9/16"-18 male x 9/16"-18 male - 37 degrees flared

1шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

16

REF

INSTRUCTION

VALVE, solenoid monoblock (For breakdown, see Figure 244 or 246)

1шт.

17

REF

INSTRUCTION

VALVE, 4-spool main control (Outside) (For breakdown, see Figure 260 or 262)

1шт.

18

S7972

CONNECTOR, ELEC

CONNECTOR (1" tube) - 1-5/16"-12 male x 1-5/16"-12 male - 37 degrees flared

1шт.

S6069

O-RING,1.171" ID x 0.116" Width

1шт.

19

S234974

SPARE PART Hydraulic 1" OD x 4.06" L

1шт.

20

S93154

VALVE

Check

1шт.
