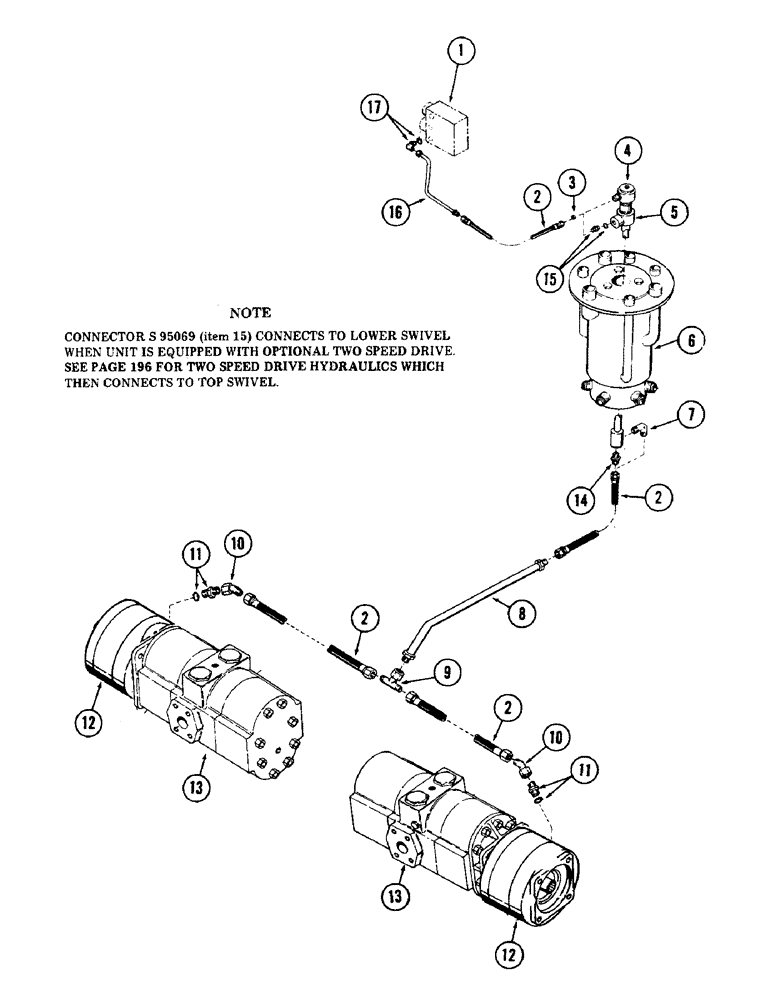

Запчасти Case 40 (198) - DRIVE BRAKE TUBING (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

VALVE, solenoid monoblock (For breakdown, see Figure 244)

1шт.

2

S77121

HOSE

High pressure - 1/4" ID x 20" long (With 9/16"-18 female pressed on couplings)

4шт.

3

S89669

VALVE

RESTRICTOR, flow

1шт.

4

REF

INSTRUCTION

SWIVEL, service (For breakdown, see Figure 164)

1шт.

5

REF

INSTRUCTION

SWIVEL, inner (Used with single speed drive) (For breakdown, see Figure 160)

1шт.

REF

INSTRUCTION

SWIVEL, inner (Used with two speed drive) (For breakdown, see Figure 162)

1шт.

6

REF

INSTRUCTION

SWIVEL, 7-port hydraulic (For breakdown, see Figure 220)

1шт.

7

218-492

90 ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

ELBOW, 90 degrees (3/8" tube) - 9/16"-18 male x 1/8" NPT male - 37 degrees flared (Used with inner swivel use with two speed drive)

1шт.

8

S235193

SPARE PART Hydraulic 0.5" OD x 19.56, 1.81" L

1шт.

9

218-836

TEE,37 Degree, 9/16"-18 x 9/16"-18, Fem Sw Br

1шт.

10

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

2шт.

11

S95069

FITTING

CONNECTOR (3/8" tube) - 7/16"-20 male x 9/16"- 8 male - 37 degrees flared

2шт.

S6057

O-RING

2шт.

12

REF

INSTRUCTION

BRAKE, track (For breakdown, see Figure 068)

2шт.

13

REF

INSTRUCTION

MOTOR, track drive (Used with single speed drive) (Not illustrated) (For breakdown, see Figure 236)

2шт.

REF

INSTRUCTION

MOTOR, track drive (Used with two speed drive) (Illustrated) (For breakdown, see Figure 238)

2шт.

14

REF

INSTRUCTION

ADAPTER (Used with inner swivel use with single speed drive) (See item 7 on Figure 160)

1шт.

15

S95069

FITTING

CONNECTOR (3/8" tube) - 7/16"-20 male x 9/16"-18 male - 37 degrees flared (See note on Figure 160)

1шт.

S6057

O-RING

1шт.

16

S231454

SPARE PART Hydraulic 0.375" OD x 6.36, 6.58" L

1шт.

17

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Adjustable

1шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
