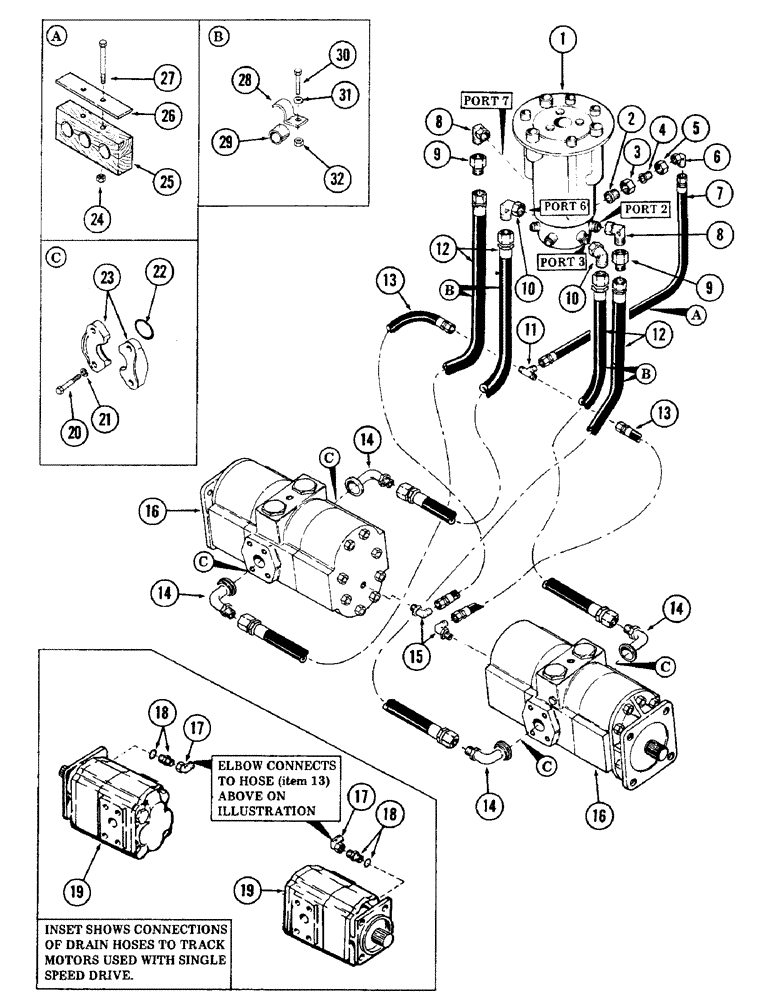

Запчасти Case 40 (194) - LOWER TRACK DRIVE MOTOR TUBING AND DRAIN (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

SWIVEL, 7-port hydraulic (For breakdown, see Figure 220)

1шт.

2

218-797

REDUCER,37 Degree, 1" x 3/4" Tube

ADAPTER, 1-1/16"-12 male - 37 flared

1шт.

3

218-348

TUBE NUT,37 Degree, 1 5/16"-12, Type B

(1" tube) - 1-5/16"-12 female - 37 degrees flared

1шт.

4

218-795

REDUCER,37 Degree, 3/4" x 3/8" Tube

ADAPTER, 9/16"-18 male - 37 degrees flared

1шт.

5

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

(3/4" tube) 1-1/16"-12 female - 37 degrees flared

1шт.

6

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

(3/8" tube)

1шт.

7

S227396

HOSE ASSY.

High pressure - 3/8" ID x 50" long (With 9/16"-18 female pressed on couplings)

1шт.

8

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

(3/4" tube)

2шт.

9

S235197

ADAPTER

(3/4" tube) - 1-1/16"-12 female x 2-5/16"-16 male - 37 degrees flared

2шт.

10

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

(1" tube)

2шт.

11

218-593

TEE,9/16"-18, 37 Degree

(3/8" tube)

1шт.

12

S401534

HOSE ASSY.

High pressure - 1" ID x 66" long (With 1-5/16"-12 female pressed on couplings)

4шт.

13

S227395

HOSE

High pressure - 3/8" ID x 21" long (With 9/16"-18 female pressed on couplings)

2шт.

14

S23440

TUBE, hydraulic

2шт.

15

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Adjustable (3/8" tube)

2шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

16

REF

INSTRUCTION

MOTOR, track drive (For breakdown, see Figure 238)

2шт.

17

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

(3/8" tube)

2шт.

18

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER (3/8" tube)

2шт.

19

REF

INSTRUCTION

MOTOR, track drive (For breakdown, see Figure 236)

2шт.

20

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

16шт.

21

195-23

X

WASHER, lock - 1/2"

16шт.

22

S6589

O-RING

1.859" ID x 2.137" OD

4шт.

23

A14157

FLANGE

CLAMP, half flange

8шт.

24

131-70

NUT,1/2"-13, GB

2шт.

25

S235195

SPARE PART Wood

1шт.

26

S235194

BAR

1шт.

27

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

28

S87573

CLAMP

4шт.

29

S86502

RING

Compression

4шт.

30

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

31

131-70

NUT,1/2"-13, GB

4шт.
