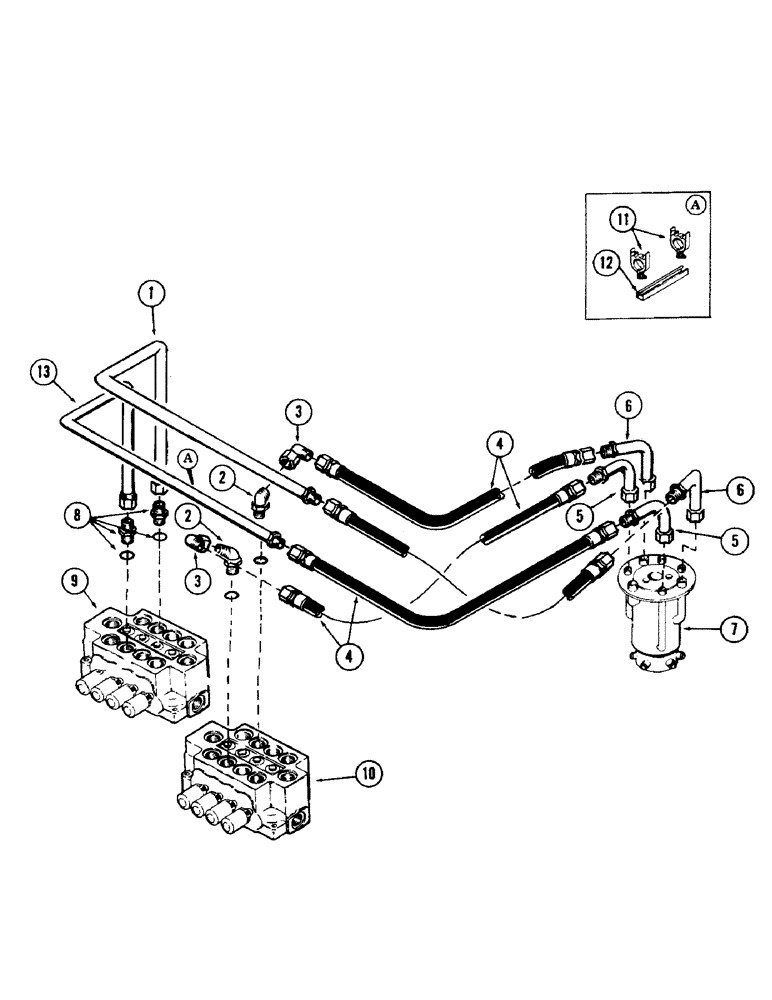

Запчасти Case 40 (192) - TRACK DRIVE MOTOR TUBING, (FROM MAIN VALVES TO SWIVEL) (35) - HYDRAULIC SYSTEMS

1

S513664

TUBE,1.25" OD

Hydraulic

1шт.

2

S11257

FITTING

ELBOW, 45 degrees adjustable (1" tube) - 1-5/16"-12 male x 1-5/16"-12 female - 37 degrees flared

2шт.

3

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

(1" tube)

2шт.

4

S8628

HOSE

High pressure - 1" ID x 36" long (With 1-5/16"-12 female pressed on couplings)

4шт.

5

S237062

TUBE,1" OD x 6.06, 4.91" L

Hydraulic

2шт.

6

S229157

TUBE,1" OD x 7.62, 8.75" L

Hydraulic

2шт.

7

REF

INSTRUCTION

SWIVEL, 7-port hydraulic (For breakdown, see Figure 220)

1шт.

8

S7972

CONNECTOR, ELEC

CONNECTOR (1" tube) - 1-5/16"-12 male x 1-5/16"-12 male - 37 degrees flared

4шт.

9

REF

INSTRUCTION

VALVE, 4-spool main hydraulic (Outside) (For breakdown, see Figure 260 or 262)

1шт.

10

REF

INSTRUCTION

VALVE, 4-spool main hydraulic (Inside) (For breakdown, see Figure 258)

1шт.

11

S93266

CLAMP

2шт.

12

S98782

CHANNEL

SPARE PART Clamp mounting

1шт.

13

S237060

TUBE,1.25" OD

Hydraulic

1шт.
