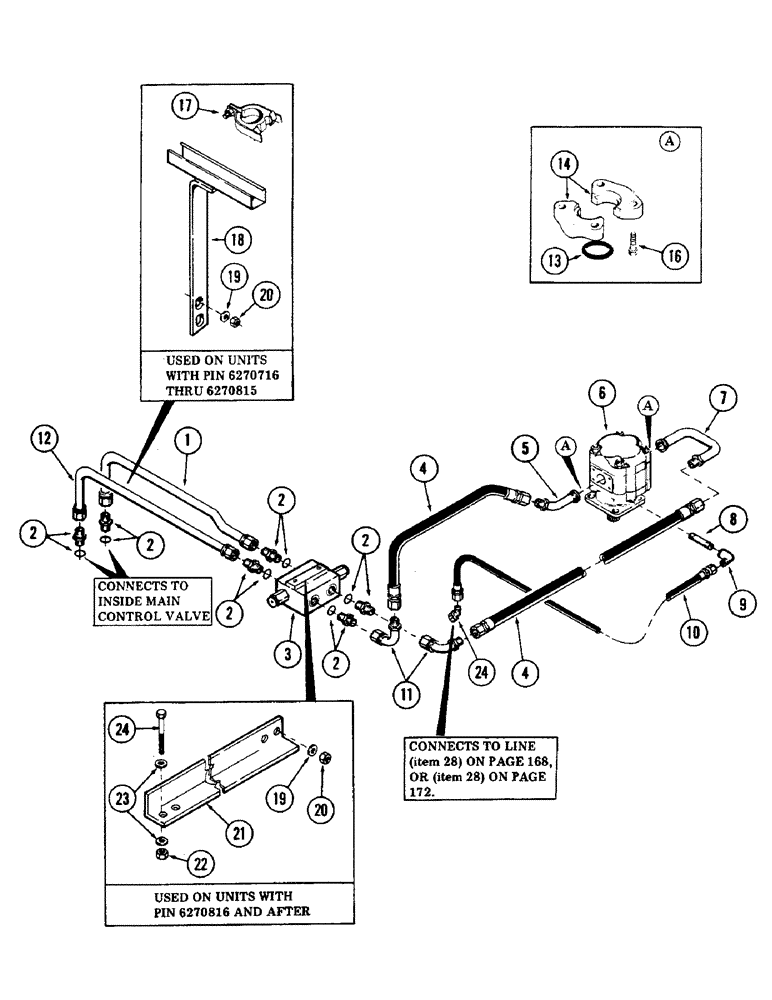

Запчасти Case 40 (190) - SWING MOTOR TUBING (35) - HYDRAULIC SYSTEMS

1

S234837

TUBE ASSY.,1.25" OD

Hydraulic

1шт.

2

S7972

CONNECTOR, ELEC

CONNECTOR (1" tube) - 1-5/16"-12 male x 1-5/16"-12 male - 37 degrees flared

6шт.

S6069

O-RING,1.171" ID x 0.116" Width

6шт.

3

REF

INSTRUCTION

VALVE - inline crossover relief (For breakdown, see Figure 254)

1шт.

4

S8628

HOSE

High pressure - 1" ID x 36" long (With 1-5/16"-12 female pressed on couplings)

2шт.

5

S235919

ADAPTER

TUBE - hydraulic

1шт.

6

REF

INSTRUCTION

MOTOR - swing (For breakdown, see Figure 232)

1шт.

7

S234839

SPARE PART Hydraulic 1.25" OD x 5.06, 8.06" L

1шт.

8

221-1902

NIPPLE, LUBE

NIPPLE 1/4" PT x 2" long

1шт.

9

218-513

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/4"-18, Fem NPTF

(3/8" tube)

1шт.

10

S227395

HOSE

High pressure - 3/8" ID x 21" long (With 9/16"-18 female pressed on couplings)

1шт.

11

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

(1" tube)

2шт.

12

S234835

SPARE PART Hydraulic 1.25" OD x 27.41, 6.81" L

1шт.

13

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

(1.762 OD)

2шт.

14

A12301

CLAMP,Half

Split

4шт.

15

113-167

BOLT,Hex, 5/16" - 18 x 4", Gr 5

2шт.

16

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

BOLT - 7/16" x 2-3/4" NC hex (Grade 5)

8шт.

17

S93266

CLAMP

2шт.

18

S234355

SPARE PART Clamp mounting

1шт.

19

195-530

WASHER,7/16"

WASHER - flat 1/2"

2шт.

20

131-70

NUT,1/2"-13, GB

2шт.

21

S513951

SPARE PART ANGLE

1шт.

22

131-462

NUT,5/16"-18

2шт.

23

195-521

WASHER,5/16", SAE

WASHER - flat 3/8"

4шт.

24

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

(5/8" tube)

1шт.
