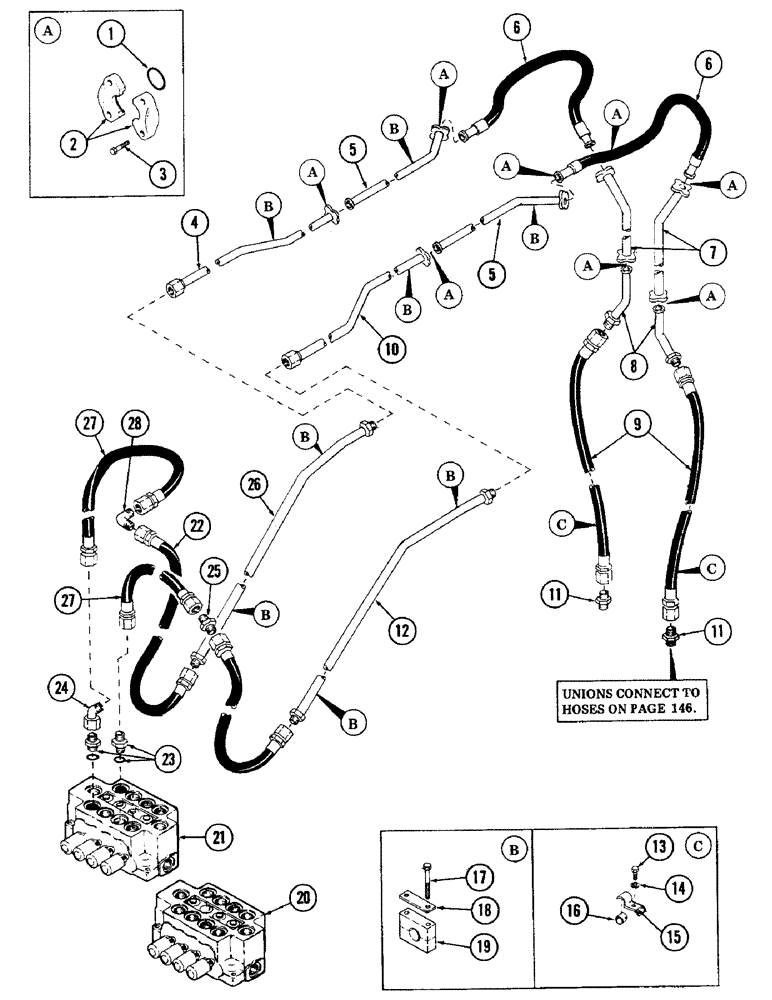

Запчасти Case 40 (188) - "Y" BOOM AUXILIARY TUBING (35) - HYDRAULIC SYSTEMS

1

S6583

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1.296" ID x 1.574" OD

1шт.

2

218-5236

ELBOW,90 Degree, 1 7/8"-12, 37 Degree x 1 7/8"-12, 37 Degree Fem Sw

CLAMP, half flange

1шт.

3

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

4

S613294

LINE,1" OD

SPARE PART TUBE, hydraulic

1шт.

5

S236159

SPARE PART Hydraulic 1" OD

2шт.

6

S235670

HOSE

SPARE PART High pressure

2шт.

7

S235673

TUBE,1" OD

Hydraulic

2шт.

8

S235669

TUBE,0.5" OD

SPARE PART Hydraulic

2шт.

9

S11241

HOSE

High pressure - 3/8" ID x 106" long

2шт.

S28645

HOSE, high pressure (Bulk) - 1 piece - 3/8" ID x 103" long

1шт.

220-204

FITTING

COUPLING, reusable - 3/4"-16 female - 37 degrees flared

2шт.

10

S613293

TUBE,1" OD

Hydraulic

1шт.

11

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

(1/2" tube)

2шт.

12

S613291

TUBE,1" OD

Hydraulic

1шт.

13

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

14

192-23

LOCK WASHER,1/2"

2шт.

15

S116280

CLAMP

2шт.

16

S75792

RING

Compression

2шт.

17

113-177

BOLT,Hex, 5/16" - 18 x 3", Gr 5

1шт.

18

S112618

PLATE

1шт.

19

S112616

CLAMP

1шт.

20

REF

INSTRUCTION

VALVE, 4-spool main control (Inside) (For breakdown, see Figure 258)

1шт.

21

REF

INSTRUCTION

VALVE, 4-spool main control (Outside) (For breakdown, see Figure 260 or 262)

1шт.

22

S236136

HOSE

High pressure - 3/4" ID x 60" long (With 1-1/16"-12 female pressed on couplings)

2шт.

23

S7969

CONNECTOR, ELEC

CONNECTOR (3/4" tube) - 1-5/16"-12 male x 1-1/16"-12 male

2шт.

S6069

O-RING,1.171" ID x 0.116" Width

1.171" ID x 1.403" OD

1шт.

274

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

(3/4" tube)

1шт.

25

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

(1" tube)

1шт.

26

S613292

LINE,1" OD

SPARE PART TUBE, hydraulic

1шт.

27

S400834

HOSE

High pressure - 3/4" ID x 36-1/2" long (1-1/16"-12 female pressed on couplings)

2шт.

28

218-476

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC

(3/4" tube)

1шт.
