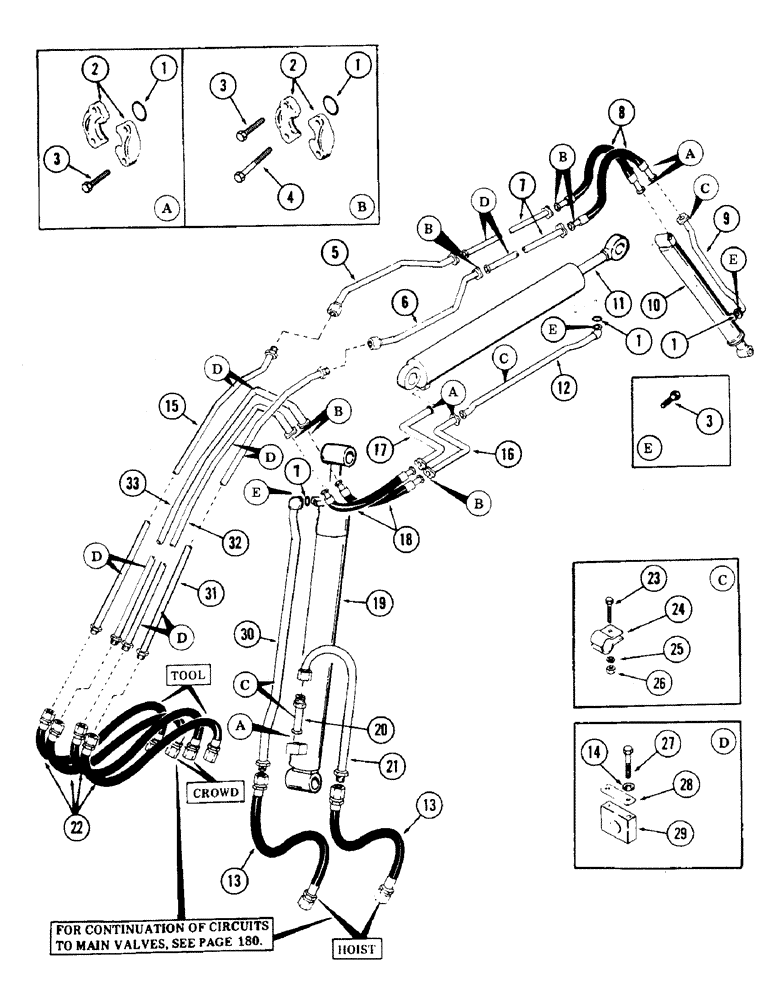

Запчасти Case 40 (186) - "Y" BOOM TUBING (35) - HYDRAULIC SYSTEMS

1

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

(1.762" OD)

1шт.

2

A12301

CLAMP,Half

CLAMP - half flange

1шт.

3

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

1шт.

4

113-319

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 5

1шт.

5

S613289

TUBE ASSY.,1.25" OD

Hydraulic

1шт.

6

S613920

TUBE - hydraulic

1шт.

7

S236160

LINE,1.25" OD x 32.66" L

SPARE PART TUBE - hydraulic

2шт.

8

S229987

HOSE ASSY.

High pressure

2шт.

9

S235038

TUBE ASSY.,1.25" OD x 42.55, 0.92" L

Hydraulic

1шт.

10

REF

INSTRUCTION

CYLINDER - tool (For breakdown, see Figure 212)

1шт.

11

REF

INSTRUCTION

CYLINDER - crowd (For breakdown, see Figure 208)

1шт.

12

S238001

TUBE ASSY.,1.25" OD x 53.6, 10" L

Hydraulic

1шт.

13

S401536

HOSE

High pressure - 1" ID x 30" long (With 1-5/16" female pressed on couplings)

2шт.

14

193-29

LOCK WASHER,Int Tooth, 5/16"

1шт.

15

S613287

TUBE ASSY.,1.25" OD

SPARE PART Hydraulic

1шт.

16

S237058

LINE,1.25" OD x 7.8, 5.35" L

TUBE - hydraulic

1шт.

17

S236162

TUBE ASSY.,1.25" OD x 8.8, 8.05" L

Hydraulic

1шт.

18

S229986

HOSE ASSY.

High pressure

2шт.

19

REF

INSTRUCTION

CYLINDER - hoist (For breakdown, see Figure 210)

1шт.

20

S238004

LINE,1.25" OD x 7.09" L

TUBE - hydraulic

1шт.

21

S514049

TUBE ASSY.,1.25" OD

Hydraulic

1шт.

22

S8628

HOSE

High pressure - 1" ID x 36" long (With 1-5/16"-12 female pressed on couplings)

4шт.

23

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

1шт.

24

S106606

CLAMP

1шт.

25

192-22

LOCK WASHER,7/16"

1шт.

26

129-104

NUT,7/16"-14, G5

1шт.

27

113-177

BOLT,Hex, 5/16" - 18 x 3", Gr 5

1шт.

28

S112618

PLATE

1шт.

29

S112617

CLAMP

1шт.

30

S614188

TUBE ASSY.,1.25" OD

Hydraulic

1шт.

31

S613288

TUBE ASSY.,1.25" OD

SPARE PART Hydraulic

1шт.

32

S513753

TUBE,1.25" OD

Hydraulic

1шт.

33

S513752

TUBE,1.25" OD

Hydraulic

1шт.
