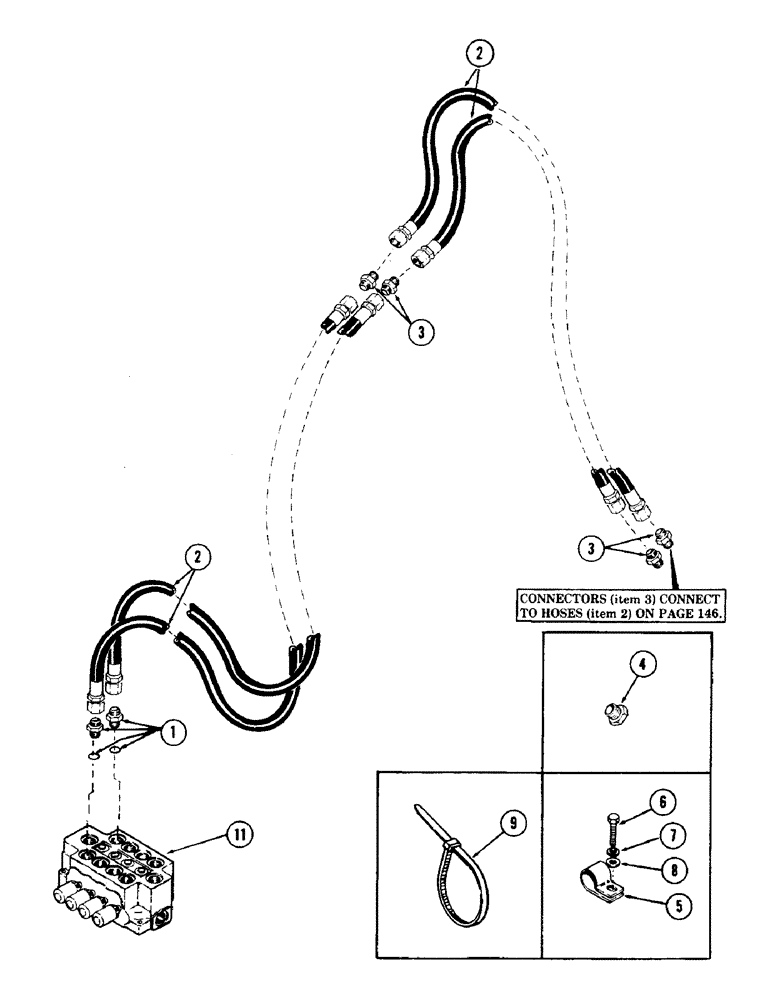

Запчасти Case 40 (184) - AUXILIARY HOSES, USED ON UNITS WITH "E" BOOM) (35) - HYDRAULIC SYSTEMS

1

S111648

CONNECTOR, ELEC

CONNECTOR

2шт.

2

S75758

HOSE

High pressure - 3/8" ID x 246" long - 3/4"-16 female x 3/4"-16 female

4шт.

3

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1/2" tube

4шт.

4

218-775

PLUG,3/4"-16, 37 Degree

1/2" tube

2шт.

5

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

CLAMP

16шт.

6

26-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 8

BOLT - 5/16" x 3-1/4" (Grade 5) (Replaces bolt in boom clamp)

10шт.

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

6шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

6шт.

8

195-102

WASHER,1/4"

Flat - 5/16"

6шт.

9

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

14шт.

10

S235910

BLOCK

Tapped (Welds to dipper) (Not illustrated)

3шт.

11

REF

INSTRUCTION

VALVE - 4-spool main control (Outside) (For breakdown, see Figure 262)

1шт.
