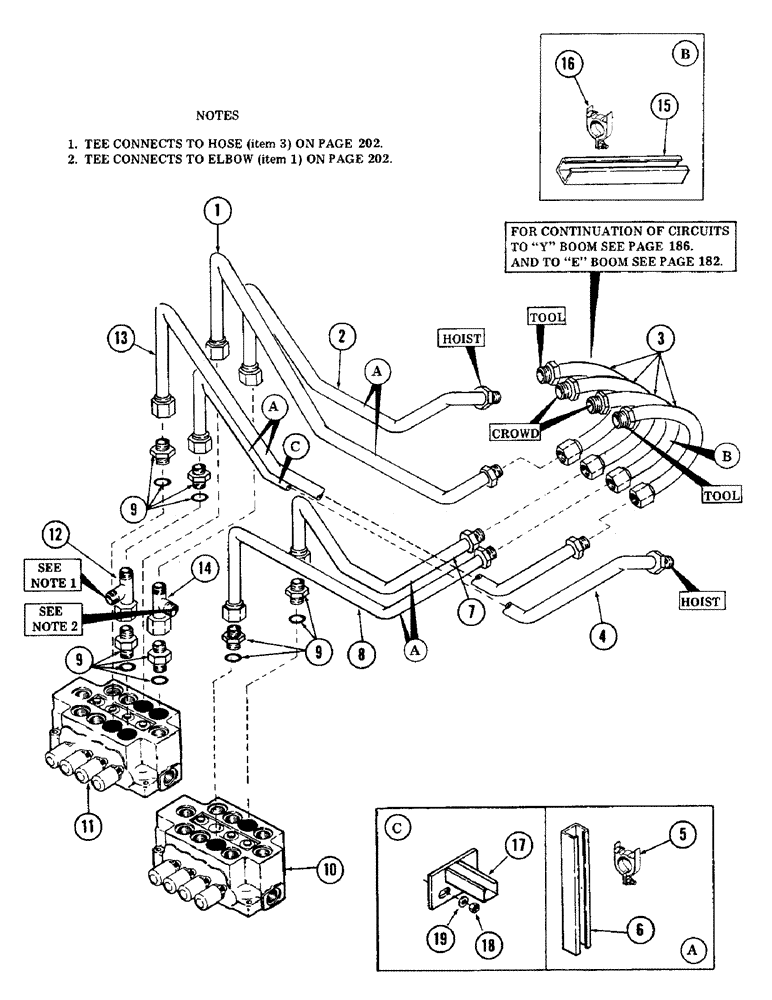

Запчасти Case 40 (180) - CROWD, HOIST AND TOOL TUBING, (FROM MAIN VALVES TO BOOM) (35) - HYDRAULIC SYSTEMS

1

S512392

TUBE ASSY.,1.25" OD

Hydraulic

1шт.

2

S512427

TUBE ASSY.

Hydraulic

1шт.

3

S234334

TUBE ASSY.

Hydraulic

4шт.

4

S512394

TUBE ASSY.

Hydraulic

1шт.

5

S93266

CLAMP

Tube

6шт.

6

S98963

SPARE PART

2шт.

7

S512419

TUBE ASSY.,1.25" OD

Hydraulic

1шт.

8

S512391

TUBE ASSY.,1.25" OD

Hydraulic

1шт.

9

S7972

CONNECTOR, ELEC

CONNECTOR (1" tube) - 1-5/16"-12 male x 1-5/16"-12 male - 37 degrees flared

6шт.

S6069

O-RING,1.171" ID x 0.116" Width

1.171" ID x 1.403" OD

1шт.

10

REF

INSTRUCTION

VALVE, 4-spool main control (Inside) (For breakdown, see Figure 258)

1шт.

11

REF

INSTRUCTION

VALVE, 4-spool main control (Outside) (For breakdown, see Figure 260 or 262)

1шт.

12

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

(1" tube)

1шт.

13

S512393

TUBE ASSY.,1.25" OD

Hydraulic

1шт.

14

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

(1" tube)

1шт.

15

S98782

CHANNEL

SPARE PART

1шт.

16

S93266

CLAMP

Tube

4шт.

17

S234354

BRACKET

Clamp mounting

2шт.

18

131-70

NUT,1/2"-13, GB

4шт.

19

195-530

WASHER,7/16"

Flat - 1/2"

4шт.
