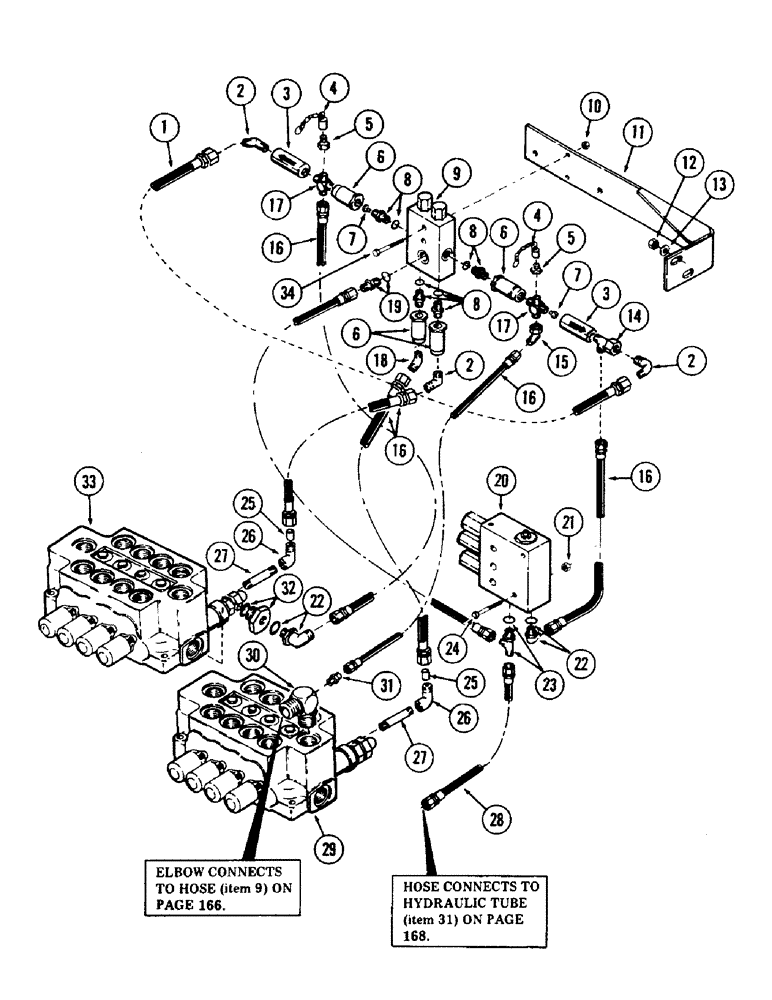

Запчасти Case 40 (176) - POWER SENSING TUBING (35) - HYDRAULIC SYSTEMS

1

S99421

HOSE ASSY.

High pressure - 3/8" ID x 23" long (With 9/16"-18 female pressed on couplings)

1шт.

2

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

(3/8" tube)

3шт.

3

S110789

VALVE

Check

2шт.

4

S206608

CAP

Dust

2шт.

5

S206607

DISC

DISCONNECT, quick

2шт.

6

S98004

FILTER

4шт.

S18960

O-RING,-208, 90 Duro, .609" ID x .139" Thk

1шт.

7

S233837

NOZZLE CAP

VENT, orifice

2шт.

8

S11271

FITTING

CONNECTOR (3/8" tube) - 9/16"-18 male x 1/4" NPT male - 37 degrees flared

4шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

REF

INSTRUCTION

VALVE, power sensing relief (For breakdown, see Figure 242)

1шт.

10

86625061

NUT,1/4"-20, GB

2шт.

11

S512938

SPARE PART Valve mounting

1шт.

12

131-70

NUT,1/2"-13, GB

2шт.

13

S95569

WASHER

1/2"

2шт.

14

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

(3/8" tube)

1шт.

15

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

(3/8" tube)

1шт.

16

S77121

HOSE

High pressure - 1/4" ID x 20" long (With 9/16" - 18 female pressed couplings)

5шт.

17

S111366

SPARE PART

2шт.

18

218-533

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

(3/8" tube)

1шт.

19

S7962

FITTING

CONNECTOR (3/8" tube) - 3/4"-16 male x 9/16"-18 male - 37 degrees flared

1шт.

S6061

O-RING,0.639" ID x 0.09" Width

1шт.

20

REF

INSTRUCTION

VALVE, solenoid monoblock (For breakdown, see Figure 244 or 246)

1шт.

21

231-1445

NUT,5/16"-18, GB

2шт.

22

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Adjustable

2шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

23

S60869

FITTING

TEE, adjustable (3/8" tube) - 9/16" - 18 male x 9/16"-18 male x 9/16"-18 male - 37 degrees flared

1шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

24

26-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 8

2шт.

25

S89669

VALVE

RESTRICTOR, flow

2шт.

26

218-525

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/8"-27, Fem NPTF

(3/8" tube)

2шт.

27

221-1908

PIPE,Nipple, 3/4" NPT x 2", X-Strng

1/8" NPT male

2шт.

28

S227396

HOSE ASSY.

High pressure - 3/8" ID x 50" long (With 9/16"-19 female pressed on couplings)

1шт.

29

REF

INSTRUCTION

VALVE, 4-spool main control (Inside) (For breakdown, see Figure 258)

1шт.

30

REF

INSTRUCTION

ELBOW, 90 degrees (1" tube) - 1-5/16" - 12 male x 1-5/16"-12 male - 37 degrees flared (See item 6 on Figure 166)

1шт.

REF

INSTRUCTION

"O" RING (See item 6 on Figure 166)

1шт.

31

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

(3/8" tube)

1шт.

32

S112222

PLUG

SPARE PART 9/16"-18 female x 1-5/16"-12 male - 37 degrees flared

1шт.

S6069

O-RING,1.171" ID x 0.116" Width

1шт.

33

REF

INSTRUCTION

VALVE, 4-spool main control (Outside) (For breakdown, see Figure 260 or 262)

1шт.

34

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.
