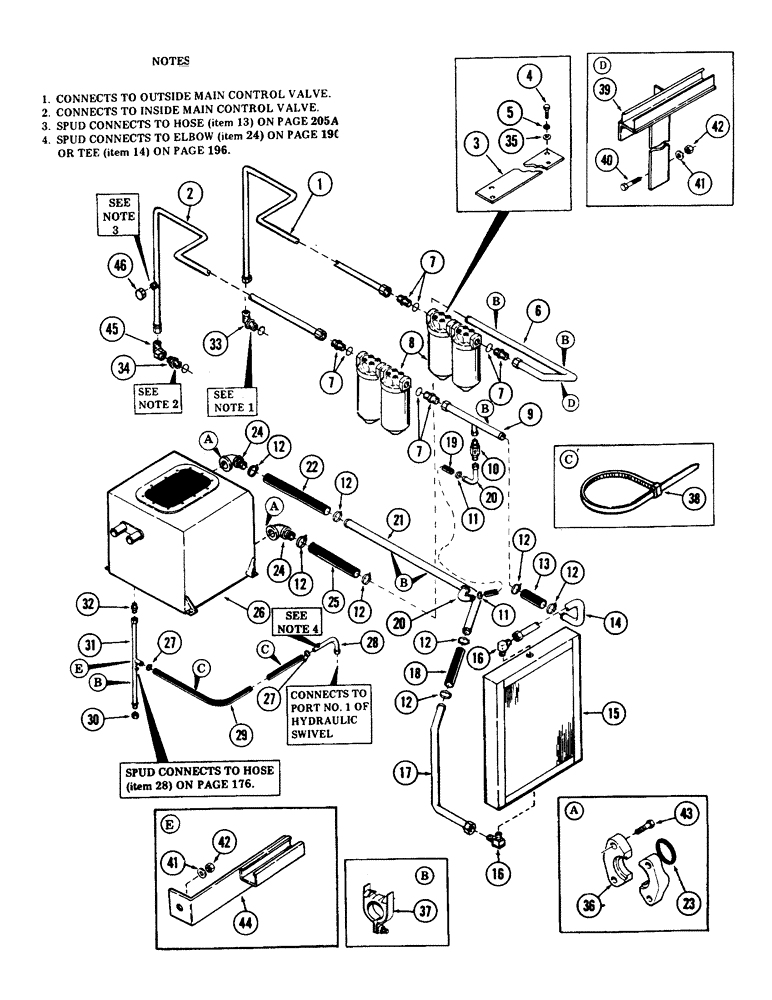

Запчасти Case 40 (172) - MAIN VALVES TO FILTERS TO RESERVOIR AND COOLER TUBING, (USED WITH PIN 6270901 AND AFTER) (35) - HYDRAULIC SYSTEMS

1

S614652

SPARE PART Hydraulic

1шт.

S614653

SPARE PART Hydraulic (Used only when unit is equipped with both optional leveler and auxiliary tubing)

1шт.

2

S514151

SPARE PART Hydraulic 1.5" OD

1шт.

3

S238226

PLATE

BRACKET, filter tie

2шт.

4

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

5

192-21

LOCK WASHER,3/8"

8шт.

6

S236720

SPARE PART Hydraulic 1.5" OD x 33.56, 11.34" L

1шт.

7

S7978

ROD, CONNECTING

CONNECTOR (1-1/2" tube) - 1-7/8"-12 male x 1-7/8" 12 male - 37 degrees flared

4шт.

S6077

RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

"O"

4шт.

8

REF

INSTRUCTION

FILTER, hydraulic oil (For breakdown, see Figure 226)

2шт.

9

S234838

SPARE PART Hydraulic

1шт.

10

S105386

VALVE

Check

1шт.

11

214-371

CLAMP,1.56"-1.81", T-Bolt

Hose

2шт.

12

S85429

CLAMP

Hose

8шт.

13

S114935

HOSE

Low pressure (Bulk) - 1 piece - 1-1/2" ID x 13" long

1шт.

14

S229762

SPARE PART Hydraulic 1.5" OD x 19.15, 5.6" L

1шт.

15

REF

INSTRUCTION

COOLER, oil (See item 21 on Figure 078)

1шт.

16

218-1069

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1"-11 1/2, NPTF

(1-1/4" tube) - 1-5/8"-12 male x 1" NPT male - 37 degrees flared

2шт.

17

S234836

SPARE PART Hydraulic 1.5" OD

1шт.

18

S114935

HOSE

Low pressure (Bulk) - 1 piece - 1-1/2" ID x 13" long

1шт.

19

S202582

LINE

HOSE, low pressure (Bulk) - 1 piece - 1-1/4" ID x 9" long

1шт.

20

S215412

TUBE,1.25" OD x 3" L

Hydraulic

2шт.

21

S512420

LINE

TUBE, hydraulic

1шт.

22

S114935

HOSE

Low pressure (Bulk) - 1 piece - 1-1/2" ID x 19" long

1шт.

23

S6315

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1.859" ID x 2.137" OD

2шт.

24

S236134

90 degrees

2шт.

25

S114935

HOSE

Low pressure (Bulk) - 1 piece - 1-1/2" ID x 10" long

1шт.

26

REF

INSTRUCTION

TANK, hydraulic oil (For breakdown, see Figure 218)

1шт.

27

214-378

CLAMP,1.40"-1.56", T-Bolt

Hose

2шт.

28

S229693

TUBE,1" OD x 3, 3.75" L

Hydraulic

1шт.

29

S202581

HYDRAULIC HOSE,1.00" ID Bulk, SAE 100R3

Low pressure, 1 piece - 75" long

1шт.

30

218-760

CAP,37 Degree, 1 7/8"-12

(1-1/2" tube) - 1-7/8"-12 female - 37 degrees flared

1шт.

31

S233846

SPARE PART Hydraulic

1шт.

32

218-450

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-1/2" - 11-1/2 Male NPTF

ADAPTER (1-1/2" tube) - 1-7/8"-12 male x 1-1/2" NPT male - 37 degrees flared

1шт.

33

S64372

FITTING

ELBOW, 90 degrees adjustable (1-1/2" tube) - 1-7/8"-12 male x 1-5/8"-12 male - 37 degrees flared

1шт.

S6073

RING

"O"

1шт.

34

S80815

FITTING

CONNECTOR (1-1/2" tube) - 1-5/8"-12 male x 1-7/8"-12 male - 37 degrees flared

3шт.

S6073

RING

"O"

3шт.

35

195-104

WASHER,3/8"

8шт.

36

A14157

FLANGE

CLAMP, half flange

4шт.

37

S98324

CLAMP

1шт.

38

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

39

S234786

BRACKET

SPARE PART Filter mounting

2шт.

40

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

41

195-530

WASHER,7/16"

WASHER, flat - 1/2"

5шт.

42

131-70

NUT,1/2"-13, GB

5шт.

43

113-481

BOLT,Locking, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

44

S235089

SPARE PART BRACKET, clamp mounting

1шт.

45

218-5236

ELBOW,90 Degree, 1 7/8"-12, 37 Degree x 1 7/8"-12, 37 Degree Fem Sw

(1-1/2" tube)

1шт.

46

218-758

CAP,37 Degree, 1 5/16"-12

(1" tube) Female (Used only when unit is not equipped with optional leveler)

1шт.
