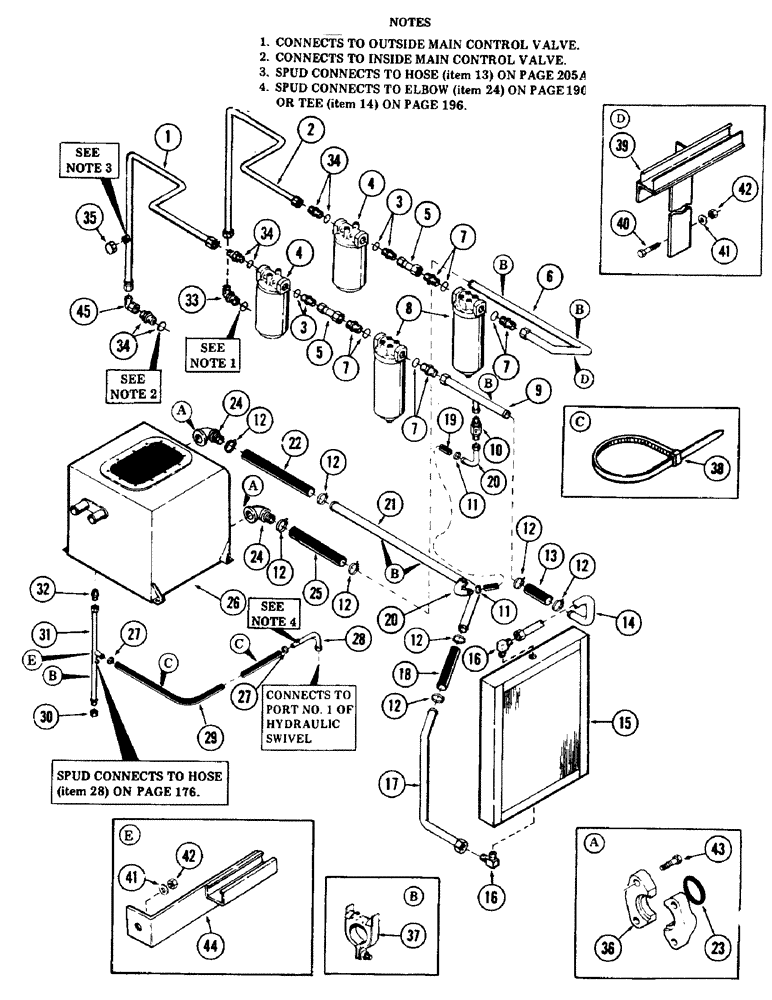

Запчасти Case 40 (168) - MAIN VALVES TO FILTERS TO RESERVOIR AND COOLER TUBING, (USED ON UNITS WITH PIN 6270716 THRU 6270900) (35) - HYDRAULIC SYSTEMS

1

S613930

SPARE PART Hydraulic

1шт.

S612225

SPARE PART Hydraulic (Used only when unit is equipped with both optional leveler and auxiliary tubing)

1шт.

2

S512418

SPARE PART Hydraulic 1.5" OD

1шт.

3

S7976

CONNECTOR, ELEC

CONNECTOR (1-1/4" tube) - 1-5/8" - 12 male x 1-5/8" - 12 male - 37 degrees flared

2шт.

S6073

RING

"O"

2шт.

4

REF

INSTRUCTION

FILTER, hydraulic oil (For breakdown, see Figure 222)

2шт.

5

S229135

SPARE PART Hydraulic

2шт.

6

S236720

SPARE PART Hydraulic 1.5" OD x 33.56, 11.34" L

1шт.

7

S7978

ROD, CONNECTING

(1-1/2" tube) - 1-7/8" - 12 male x 1-7/8" - 12 male - 37 degrees flared

4шт.

S6077

RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

"O"

4шт.

8

REF

INSTRUCTION

FILTER, hydraulic oil (For breakdown, see Figure 224)

2шт.

9

S234838

SPARE PART Hydraulic

1шт.

10

S105386

VALVE

Check

1шт.

11

214-371

CLAMP,1.56"-1.81", T-Bolt

Hose

2шт.

12

S85429

CLAMP

Hose

8шт.

13

S114935

HOSE

Low pressure (Bulk) - 1 piece - 1-1/2" ID x 13" long

1шт.

14

S229762

SPARE PART Hydraulic 1.5" OD x 19.15, 5.6" L

1шт.

15

REF

INSTRUCTION

COOLER, oil (See item 21 on Figure 078)

1шт.

16

218-1069

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1"-11 1/2, NPTF

(1-1/4" tube) - 1-5/8"-12 male x 1" NPT male - 37 degrees flared

2шт.

17

S234836

SPARE PART Hydraulic 1.5" OD

1шт.

18

S114935

HOSE

Low pressure (Bulk) - 1 piece - 1-1/2" ID x 13" long

1шт.

19

S202582

LINE

HOSE, low pressure (Bulk) - 1 piece - 1-1/4" ID x 9" long

1шт.

20

S215412

TUBE,1.25" OD x 3" L

Hydraulic

2шт.

21

S512420

LINE

TUBE, hydraulic

1шт.

22

S114935

HOSE

Low pressure (Bulk) - 1 piece - 1-1/2" ID x 19" long

1шт.

23

S6315

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1.859" ID x 2.137" OD

2шт.

24

NLS

NO LONGER SERVICED

90 degrees

2шт.

25

S114935

HOSE

Low pressure (Bulk) - 1 piece - 1-1/2" ID x 12" long

1шт.

26

REF

INSTRUCTION

TANK, hydraulic oil (For breakdown, see page 218)

1шт.

27

214-378

CLAMP,1.40"-1.56", T-Bolt

Hose

2шт.

28

S229693

TUBE,1" OD x 3, 3.75" L

LINE, hydraulic (Supersedes S220252)

1шт.

29

S202581

HYDRAULIC HOSE,1.00" ID Bulk, SAE 100R3

Low pressure, 1 piece - 75" long

1шт.

30

218-760

CAP,37 Degree, 1 7/8"-12

(1-1/2" tube) - 1-7/8"-12 female - 37 degrees flared

1шт.

31

S233846

SPARE PART Hydraulic

1шт.

32

218-450

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-1/2" - 11-1/2 Male NPTF

ADAPTER (1-1/2" tube) - 1-7/8"-12 male x 1-1/2" NPT male - 37 degrees flared

1шт.

33

S64372

FITTING

ELBOW, 90 degrees adjustable (1-1/2" tube) - 1-7/8" - 12 male x 1-5/8" - 12 male - 37 degree flared

1шт.

S6073

RING

"O"

1шт.

34

S80815

FITTING

CONNECTOR (1-1/2" tube) - 1-5/8"-12 male x 1-7/8"-12 male - 37 degrees flared

3шт.

S6073

RING

"O"

3шт.

35

218-758

CAP,37 Degree, 1 5/16"-12

(1" tube) - 1-5/16" - 12 female - 37 degrees flared (Used only when unit is not equipped with optional leveler)

1шт.

36

A14157

FLANGE

CLAMP, half flange

4шт.

37

S98324

CLAMP

1шт.

38

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

39

S234786

BRACKET

SPARE PART Filter mounting

2шт.

40

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

41

195-530

WASHER,7/16"

Flat - 1/2"

5шт.

42

131-70

NUT,1/2"-13, GB

5шт.

43

113-481

BOLT,Locking, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

44

S235039

BRACKET

Clamp mounting

1шт.

45

218-5236

ELBOW,90 Degree, 1 7/8"-12, 37 Degree x 1 7/8"-12, 37 Degree Fem Sw

(1-1/2" tube)

1шт.
