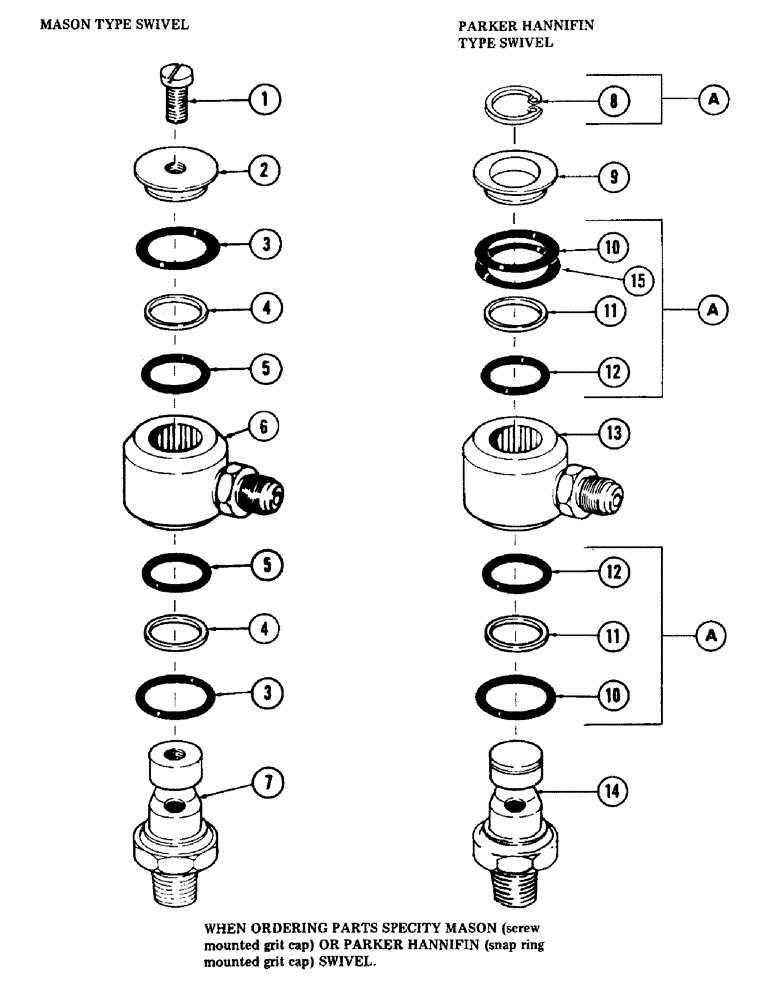

Запчасти Case 40 (164) - INNER SWIVEL, (USED WITH TRACK BRAKE AND HI-LOW RANGE SHIFT) (35) - HYDRAULIC SYSTEMS

S209351

FITTING

SWIVEL, inner (Mason)

1шт.

1

177-95

SCREW,Sl Fil Hd, #10 - 32 x 3/8"

machine - No. 10 - 32 NC x 3/8"

1шт.

2

S7989

CAP

grit

1шт.

3

S5709

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - .737" ID x .937" OD

2шт.

4

S80212

WASHER

RING, back up

2шт.

5

S6478

SEAL

"O" RING - .612" ID x .812" OD

2шт.

6

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

7

NSS

NOT SOLD SEPARAT

STEM

1шт.

S209351

FITTING

SWIVEL, inner (Parker Hannifin)

1шт.

8

RING, snap

1шт.

9

NSS

NOT SOLD SEPARAT

CAP, grit

1шт.

10

"O" RING

2шт.

11

RING, back up

2шт.

12

"O" RING

2шт.

13

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

14

NSS

NOT SOLD SEPARAT

STEM

1шт.

15

"O" RING

1шт.

S95177

KIT

service (Consists of items 9, 10 thru 12 and 15)

1шт.
