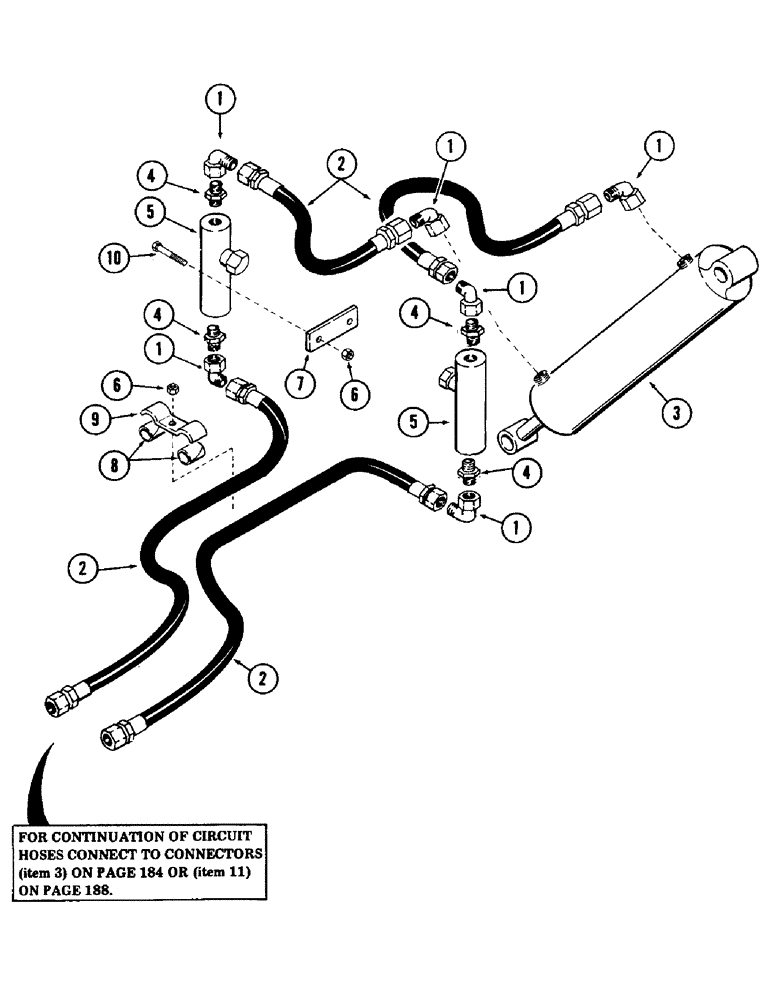

Запчасти Case 40 (146) - WRIST-O-TWIST TUBING (35) - HYDRAULIC SYSTEMS

1

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

(1/2" tube)

6шт.

2

S11226

HOSE

High pressure - 3/8" ID x 20" long (3/4"-16 female pressed on couplings)

4шт.

3

REF

INSTRUCTION

CYLINDER, wrist-o-twist (For breakdown see Figure 214)

1шт.

4

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

(1/2" tube), 37 degrees flared

4шт.

5

REF

INSTRUCTION

VALVE, flow control (For breakdown, see Figure 252)

2шт.

6

131-463

NUT,3/8"-16

5шт.

7

S81912

SPARE PART PLATE (Mounts flow control valves)

2шт.

8

S75792

RING

Compression

2шт.

9

D38835

CLAMP

1шт.

10

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

Used on units with pin 6270716 thru 6270840

4шт.

113-138

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

3/8" NC x 3-1/4" Gr 5 (Used on units with pin 6270841 and after)

4шт.
