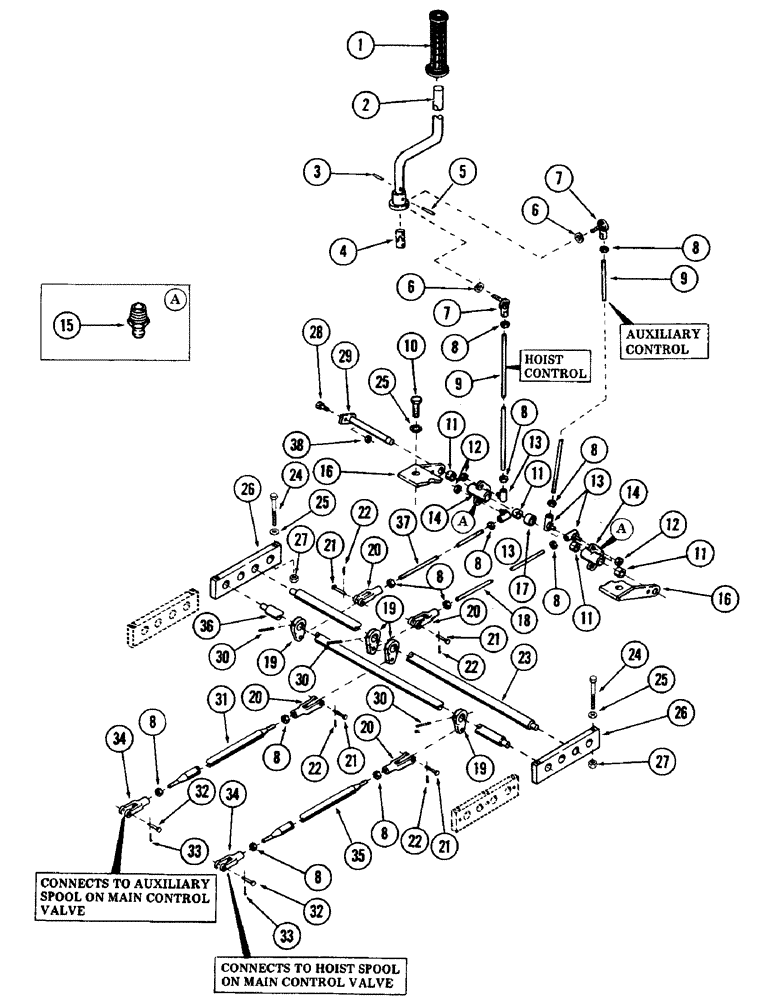

Запчасти Case 40 (152) - CONTROL HANDLE AND ATTACHING PARTS FOR: HOIST AND AUXILIARY CONTROL (33) - BRAKES & CONTROLS
№
Артикул
Название
Примечание
Количество
1
S109220
GRIP
handle (Used on units with pin 6270716 thru 6270854)
1шт.
S116544
GRIP
handle (Used on units with pin 6270855 and after)
1шт.
2
S513190
HANDLE
hoist and auxiliary control
1шт.
3
138-134
LOCK PIN,1/4" x 1", Slotted
PIN, 1/4" x 1", Slotted
1шт.
4
S234960
YOKE
JOINT, universal
1шт.
5
138-138
LOCK PIN,1/4" x 1 1/2", Slotted
PIN, 1/4" x 1 1/2", Slotted
1шт.
6
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
7
S236680
BALL JOINT
BALLJOINT
2шт.
8
86585245
SPECIAL NUT,JAM, 5/8" - 18
jam - 3/8" NF
12шт.
9
S99330
STUD
2шт.
10
113-208
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
3шт.
11
A30586
NEEDLE BEARING
BEARING, needle
8шт.
12
231-2446
NUT,3/8"-24, GB
NUT, self locking - 3/8" NC
4шт.
13
S215594
BALL
JOINT
4шт.
14
S231376
ARM ASSY.
BELLCRANK
2шт.
15
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, 1/4"-28 NPT x .54" lg
2шт.
16
S235783
SUPPORT, bellcrank
1шт.
17
S108060
SPACER
1шт.
18
S99321
ROD, connecting
1шт.
19
S229872
LEVER
4шт.
20
S66383
YOKE
4шт.
21
S105940
PIN,11.02mm OD x 22.23mm L
clevis
4шт.
22
132-52
COTTER PIN,1/8" x 1 1/2"
Pin, Split (Cotter), 1/8" x 1 1/2"
4шт.
23
S229879
SHAFT
1шт.
24
113-247
BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5
4шт.
25
195-525
WASHER,3/8", SAE
flat - 7/16"
4шт.
26
S512159
SUPPORT
BAR, bearing support
2шт.
27
131-52
NUT,3/8"-16, GC
NUT, self locking - 3/8" NC
4шт.
28
113-4
BOLT,Hex, 1/4" - 20 x 1", Gr 5
1шт.
29
S231378
PIN
SHAFT
1шт.
30
138-140
LOCK PIN,1/4" x 1 3/4", Slotted
PIN, 1/4" x 1 3/4", Slotted
4шт.
31
S222941
ROD
connecting
1шт.
32
S10768
PIN
clevis - 3/8" x 1.016" grip length
2шт.
33
132-67
COTTER PIN,5/32" x 3/4"
Pin, Split (Cotter), 5/32" x 3/4"
2шт.
34
213-4
ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"
YOKE
2шт.
35
S220638
ROD
connecting
1шт.
36
S229881
SHAFT
1шт.
37
S223839
ROD, connecting
1шт.
38
86625061
NUT,1/4"-20, GB
NUT, self locking - 1/4" NC
1шт.
Выбрано товаров: 39
