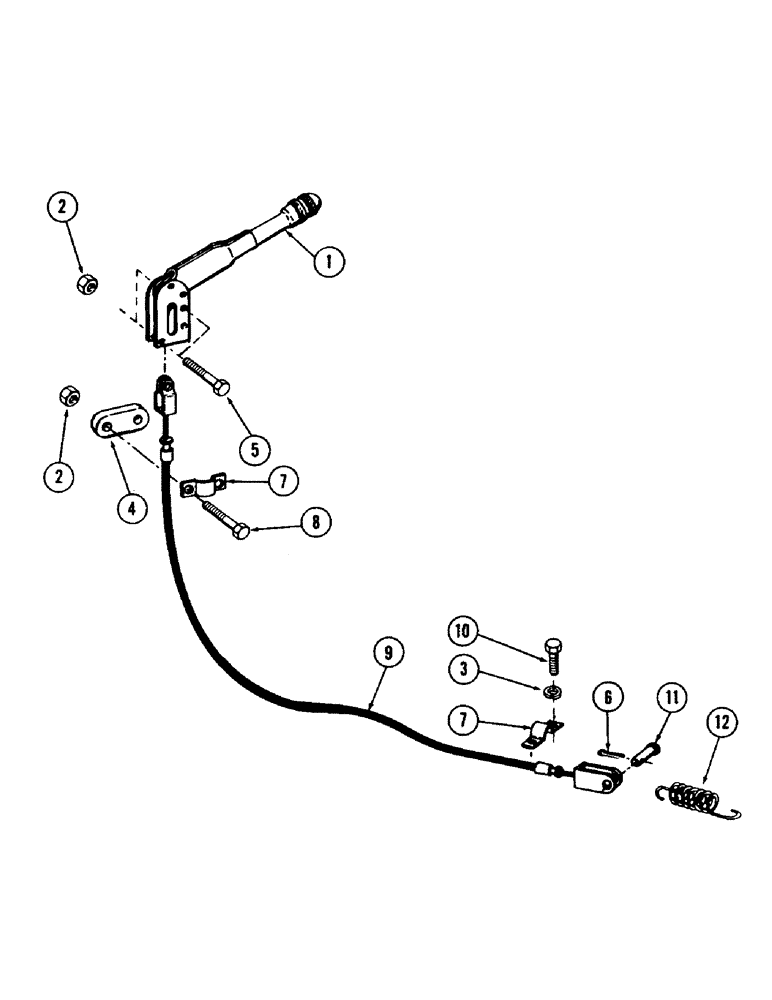

Запчасти Case 40 (124) - SWING BRAKE CONTROL (33) - BRAKES & CONTROLS

1

S26639

LEVER

Hand brake

1шт.

2

131-52

NUT,3/8"-16, GC

4шт.

3

192-21

LOCK WASHER,3/8"

6шт.

4

S99304

SPARE PART

1шт.

5

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT - 3/8" NC x 2" Gr 5

2шт.

6

132-24

COTTER PIN,3/32" x 1/2"

1шт.

7

A55980

CLAMP

2шт.

8

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

9

S33995

CABLE

Brake

1шт.

10

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

11

S10715

PIN

Clevis - 1/4" x .851" grip length

1шт.

12

REF

INSTRUCTION

SPRING, return (See item 16 on Figure 122)

1шт.
