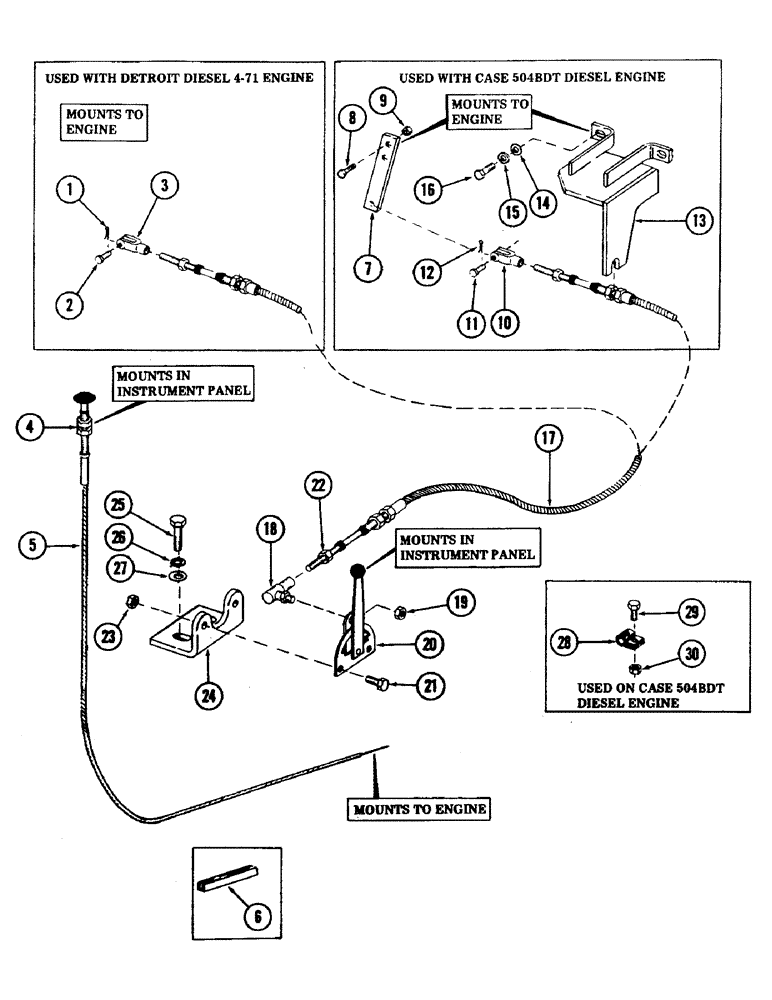

Запчасти Case 40 (084) - THROTTLE AND SHUT-OFF CONTROL CABLES (10) - ENGINE

1

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

2

S10736

PIN

clevis - 5/16" x .734" grip length

1шт.

3

S82381

YOKE

1шт.

4

195-102

WASHER,1/4"

flat - 5/16"

1шт.

5

S231430

CABLE

control (For engines shut-off on Cass 504BDT diesel and Detroit diesel 4-71 engines)

1шт.

S231431

CABLE

control (For emergency shut-off on Detroit diesel 4-71 engines)

1шт.

6

S64206

SEAL

MOULDING, rubber (Bulk) - 1 piece - 8" long (Protects cables thru hole in cab floor)

1шт.

7

S92444

BAR

LEVER, throttle control

1шт.

8

113-9

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

- 1/4" NC x 7/8" Gr 5

2шт.

9

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" NC

2шт.

10

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE

1шт.

11

S10714

CLEVIS PIN

PIN, clevis - 1/4" x .648" grip length

1шт.

12

132-324

COTTER PIN,7/64" x 3/4"

Pin, Split (Cotter), 7/64" x 3/4"

1шт.

13

S505829

BRACKET

BRACEKT, cable support

1шт.

14

195-525

WASHER,3/8", SAE

flat - 7/16"

2шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

17

S238507

CABLE

throttle (Supersedes S220635)

1шт.

18

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT, ball

1шт.

19

131-498

LOCK NUT,1/4"-28, GB

NUT, self locking - 1/4" NF

1шт.

20

S91894

CONTROL LEVER

LEVER, throttle

1шт.

21

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

22

425-154

JAM NUT,Jam, 1/4"-28, G5

2шт.

23

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" NC

2шт.

24

S231357

ANGLE

throttle lever mounting

1шт.

25

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

26

195-103

WASHER,5/16"

flat - 1/4"

2шт.

27

192-21

LOCK WASHER,3/8"

WASHER, lock - 1/4"

2шт.

28

T41928

CLAMP,3/16", Insul, 1/4" Bolt

1шт.

29

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

30

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" NC

1шт.
