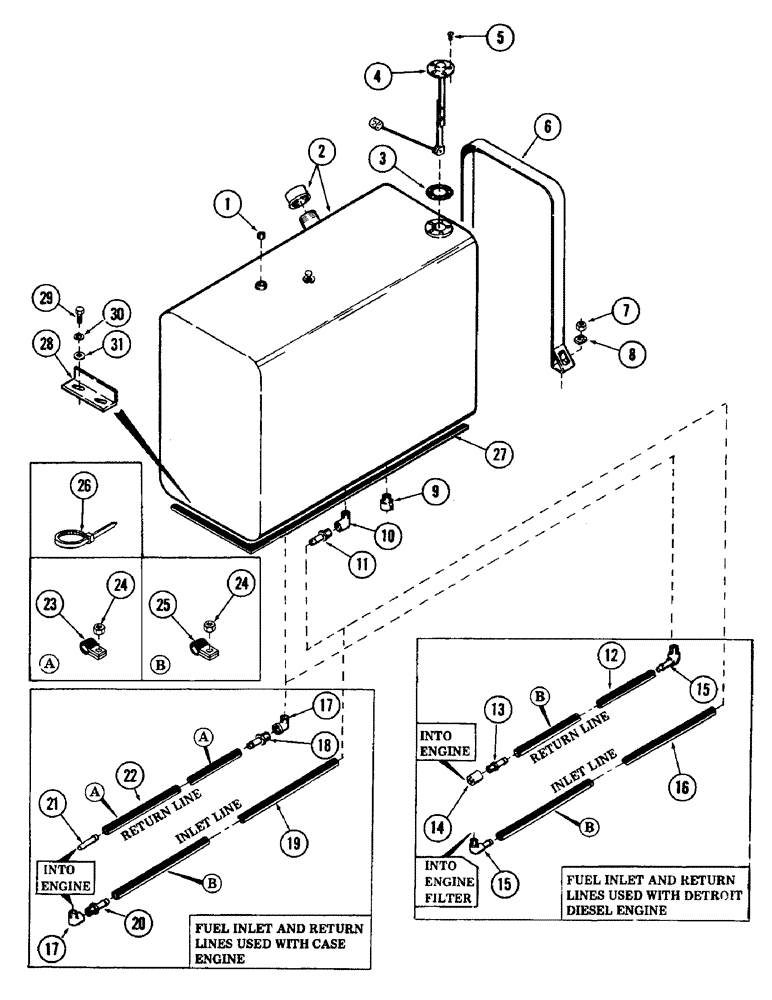

Запчасти Case 40 (082) - FUEL TANK AND LINES (10) - ENGINE

1

221-662

PLUG,Hex Hd, 1/4"-18

pipe - 1/4" NPT

1шт.

2

S514118

FUEL TANK

TANK, fuel (Supersedes S502212)

1шт.

S64019

FILLER CAP

CAP, fuel tank

1шт.

3

S49745

GASKET

GASKET

1шт.

4

S502600

SENDER UNIT

SENDING UNIT, fuel gauge

1шт.

5

174-100

SCREW,Sl Rnd Hd, #10 - 32 x 3/4"

machine - No. 10 NF x 3/4"

5шт.

6

S93863

STRAP

fuel tank mounting

2шт.

7

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

4шт.

8

S108148

SPACER

4шт.

9

217-81

VALVE

shut-off

1шт.

10

217-22

ELBOW,90 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male

90 degrees - 3/8" NPT female x 3/8" NPT male

1шт.

11

220-7

FITTING

END, hose - fits 3/8" ID hose x 3/8" NPT male

1шт.

12

S63654

HOSE

low pressure (Bulk) - 1 piece - 3/8" ID x 108" long

1шт.

13

220-3

FITTING

END, hose - fits 3/8" ID hose x 1/4" NPT male

1шт.

14

221-336

COUPLING,Pipe, 1/4" NPT

female x 1/4" NPT female Pipe, 1/4" NPT

1шт.

15

220-520

ELBOW,90 Degree, 1/8" NPT x 3/8" Barbed

90 degrees - fits 3/8" ID hose x 1/4" NPT male

2шт.

16

S63654

HOSE

low pressure (Bulk) - 1 piece - 3/8" ID x 135" long

1шт.

17

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

90 degrees - 1/4" NPT male x 1/4" NPT female

2шт.

18

220-2

FITTING

END, hose - fits 1/4" ID hose x 1/4" NPT male

1шт.

19

S63654

HOSE

low pressure (Bulk) - 1 piece - 3/8" ID x 96" long

1шт.

20

220-3

FITTING

END, hose - fits 3/8" ID hose x 3/8" NPT male

1шт.

21

S66490

TUBE

END, hose - fits 1/4" ID hose

1шт.

22

S80943

FLEXIBLE HOSE

HOSE, low pressure (Bulk) - 1 piece - 1/4" ID x 84" long

1шт.

23

S77322

CLAMP

hose

1шт.

24

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

1шт.

25

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

hose

1шт.

26

S73387

CLIP

TIE, cable (Used with Case engines)

1шт.

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP, CABLE (Used with Detroit diesel engines)

1шт.

27

S224325

PAD

fuel tank

1шт.

28

S238105

ANGLE

tank mounting

1шт.

29

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

30

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

31

S95569

WASHER

hardened flat - 1/2"

2шт.
