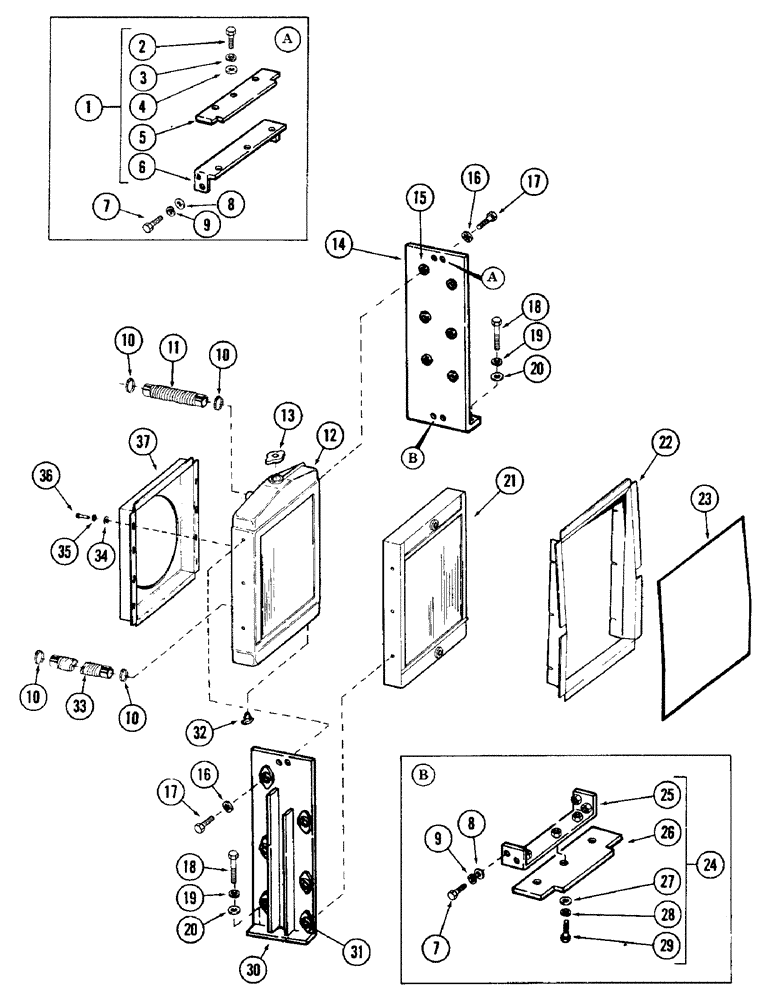

Запчасти Case 40 (078) - RADIATOR, OIL COOLER AND HOSES FOR: CASE 504BDT DIESEL ENGINE (10) - ENGINE

1

S237145

BRACKET, support (Upper) (Mounts between radiator and oil cooler)

1шт.

2

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

3шт.

3

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

4

195-101

WASHER,3/16"

flat - 1/4"

3шт.

5

S237248

STRIP

3шт.

6

S237246

BRACKET

1шт.

7

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(Support bracket to radiator mounting brackets) Hex, 5/16"-18 x 1", G5, Full Thd

8шт.

8

195-103

WASHER,5/16"

flat - 3/8"

8шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

10

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP, hose

4шт.

11

S94323

RADIATOR HOSE,2.50" ID x 8.25", SAE 20R4 CLASS SC

- Upper 2.50" ID x 8.25", SAE 20R4 CLASS SC

1шт.

12

S614013

RADIATOR

1шт.

13

D25826

CAP

radiator

1шт.

14

S510409

BRACKET, radiator mounting (Left hand)

1шт.

15

S76804

MOUNTING PARTS

MOUNT, lord

6шт.

16

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

12шт.

17

S76819

STEP BOLT

BOLT, shoulder - 5/16" NC x 1" Gr 5

12шт.

18

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

6шт.

19

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

20

S95569

WASHER

flat - 1/2"

6шт.

21

S613672

COOLER, OIL

1шт.

22

S611534

SHROUD

air duct

1шт.

23

S76711

SEAL

(Bulk) - 1 piece - 120" long

1шт.

24

S237266

BRACKET

support (Lower) (Mounts between radiator and oil cooler)

1шт.

25

S237267

BRACKET

1шт.

26

S237269

STRIP

1шт.

27

195-101

WASHER,3/16"

flat - 1/4"

3шт.

28

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

29

114-19

BOLT,Hex, 1/4" - 28 x 4-1/2", Gr 5

- 1/4" NF x 4-1/2" Gr 5

3шт.

30

S510411

BRACKET, radiator mounting (Right hand)

1шт.

31

S76804

MOUNTING PARTS

MOUNT, lord

6шт.

32

A23656

COCK, DRAIN

DRAIN, radiator

1шт.

33

S95994

HOSE

2.50" ID x 20.00", SAE 20R5, Radiator, Lower

1шт.

34

195-101

WASHER,3/16"

flat - 1/4"

8шт.

35

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER, lock - 1/4" (Internal tooth)

8шт.

36

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

machine - 1/4" NC x 1/2"

8шт.

37

S602543

SHROUD

radiator

1шт.
