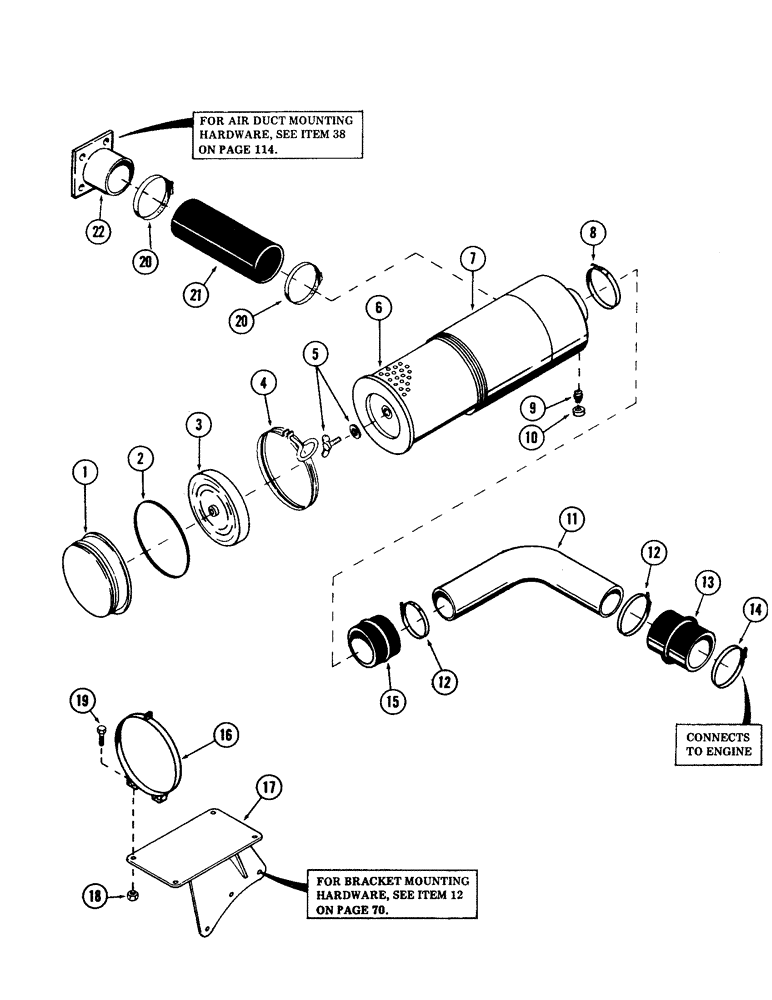

Запчасти Case 40 (074) - AIR CLEANER AND ATTACHING PARTS FOR: CASE 504BDT DIESEL ENGINE (10) - ENGINE

S609421

AIR CLEANER

CLEANER, air

1шт.

1

S221315

COVER

CUP

1шт.

2

S94185

GASKET

"O" RING

1шт.

3

S221314

BAFFLE

1шт.

4

S94175

CLAMP

1шт.

5

L35499

NUT

SCREW ASSEMBLY

1шт.

6

S231996

AIR FILTER

ELEMENT, air cleaner

1шт.

7

S231995

BODY

air cleaner

1шт.

8

214-363

CLAMP,#140, 5.25"-5.56", T-Bolt

1шт.

9

D36264

FITTING

filtered

1шт.

10

A59568

INDICATOR

air restrictor

1шт.

11

S511812

LINE,4" OD x 12.56, 12.56" L

TUBE

1шт.

12

214-361

CLAMP,#108, 4.25"-4.56", T-Bolt

1шт.

13

A56094

HOSE

ADAPTER, rubber

1шт.

14

S83025

CLAMP

2шт.

15

S106022

REDUCER

HUMP, reducer

1шт.

16

S219922

BAND

mounting

2шт.

17

S513202

BRACKET, air cleaner mounting

1шт.

18

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

4шт.

19

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

20

214-273

HOSE CLAMP,#88, 5.12" - 6", Type F Worm

CLAMP, hose

2шт.

21

S97045

HOSE

air cleaner (Bulk) - 1 piece - 5" ID x 10" long

1шт.

22

S236330

DUCT, air

1шт.
