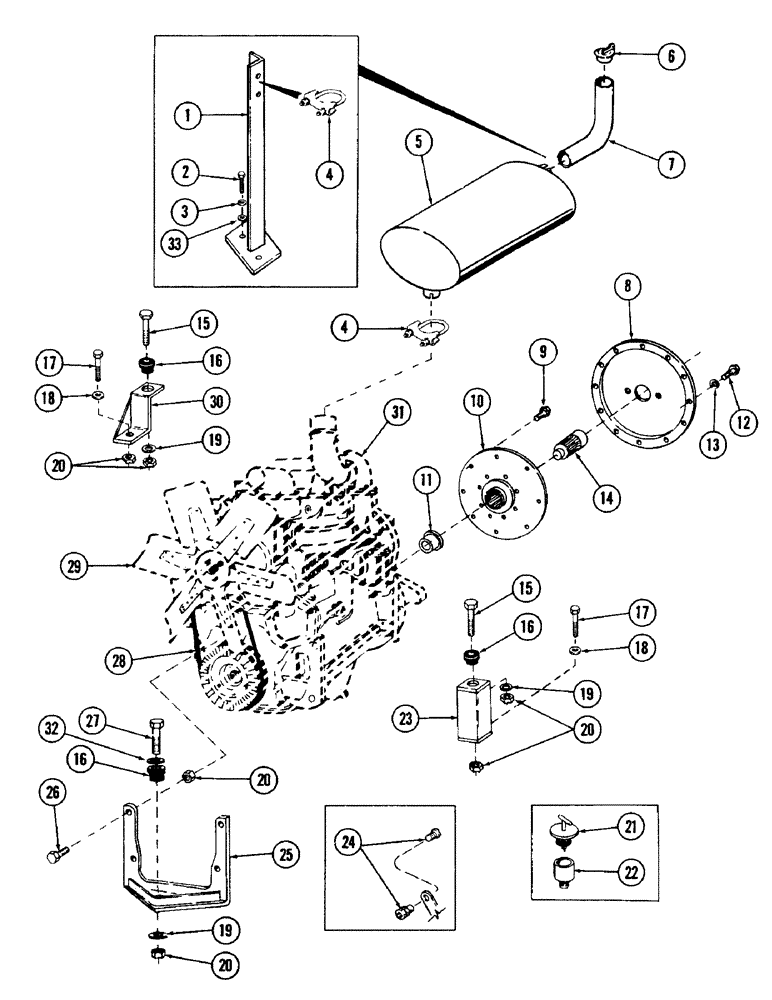

Запчасти Case 40 (070) - ENGINE AND DROTT ATTACHING PARTS FOR: CASE 504BDT DIESEL ENGINE (10) - ENGINE

1

S234041

BRACKET

muffler mounting

1шт.

2

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

- 3/8" NC x 1" Gr 5

2шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

L12413

CLAMP

muffler

2шт.

5

S231674

MUFFLER

1шт.

6

A19795

CAP

pipe

1шт.

7

S99158

ELBOW

PIPE, exhaust

1шт.

8

S52615

MOUNTING PARTS

MOUNTING, hydraulic pump

1шт.

9

121-204

BOLT,Lock Place, Hex, 3/8" - 16 x 5/8", Gr 8

- 3/8" NC x 5/8" Gr 8

8шт.

10

S33201

DAMPER

DAMPENER, pump drive

1шт.

11

S114646

ADAPTER

(Into flywheel)

1шт.

12

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

9шт.

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- 3/8" NC x 2" Gr 5 (Mounts air cleaner mounting bracket)

3шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

14

S63201

COUPLING

1шт.

15

13-1284

CAPSCREW,Hex, 3/4" - 10 x 5 1/4", Gr 5

BOLT - 3/4" NC x 5-1/4" Gr 5

2шт.

16

S112578

MOUNTING PARTS

MOUNT, rubber

3шт.

17

26-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

2шт.

18

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

flat - 3/4"

2шт.

19

195-2270

WASHER,13/16" x 3" x .238", HDN

flat - 3/4"

3шт.

20

131-450

NUT,3/4"-10

NUT, self locking - 3/4" NC

9шт.

12

S236763

PLUG

filler

1шт.

22

S236764

PIPE

filler

1шт.

23

S232820

BRACKET

engine mounting (Rear) (Left hand)

1шт.

24

A59101

PIVOT

stop

1шт.

25

S233194

BRACKET

engine mounting (Front)

1шт.

26

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

27

13-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- 3/4" NC x 4-1/4" Gr 5

1шт.

28

S88836

SET OF BELTS,0.69" W x 60.00" L

V-Belt, Alternator (Matched set of 2) 0.69" W x 60.00" L

1шт.

29

S513093

FAN

22" suction

1шт.

A61283

BUSHING

SPACER, fan

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

Mounts fan and spacer to engine Hex, 3/8"-16 x 2 1/2", G5

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

30

S232821

BRACKET

engine mounting (Rear) (Right hand)

1шт.

31

A151317

GASKET

ENGINE, Case 504BDT Diesel

1шт.

32

195-45

WASHER,3/4"

1шт.

33

196-1

WASHER,13/32" x 13/16" x .089", HDN

flat - 3/8"

2шт.
