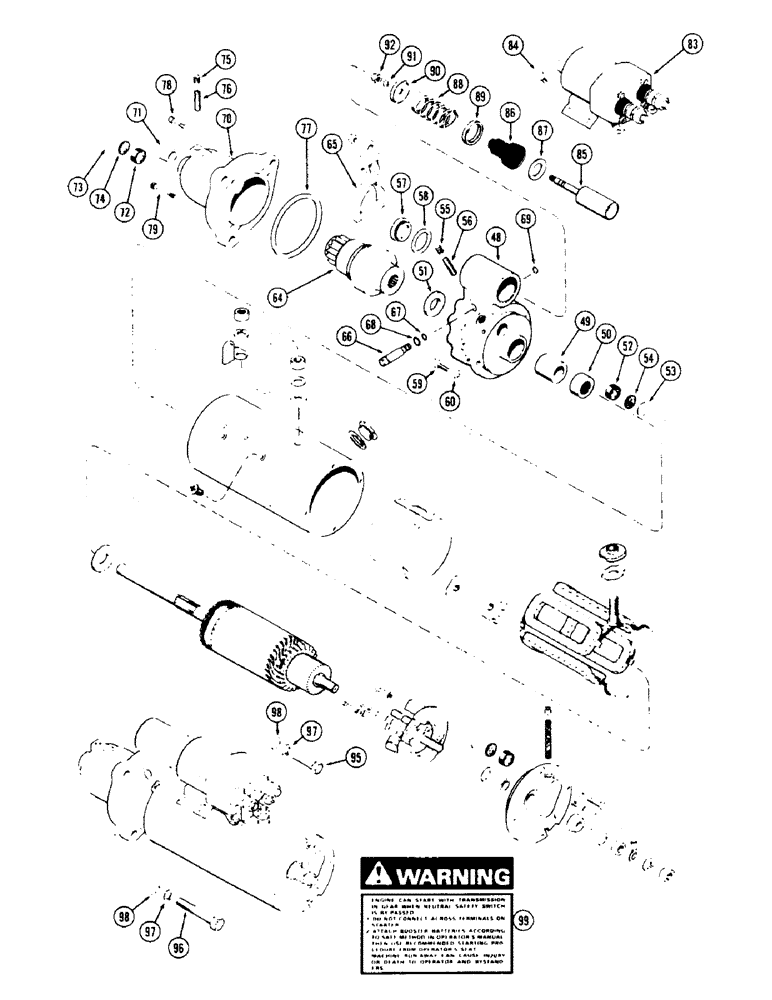

Запчасти Case 40 (044) - STARTER ASSEMBLY, 504BDT ENGINE (10) - ENGINE

R26137

STARTER MOTOR

STARTER ASSY - (Continued from Figure 042)

1шт.

48

R21579

HOUSING

ASSY - shift lever

1шт.

49

R21580

BUSHING

- housing

1шт.

50

R21582

OIL SEAL

- oil

1шт.

51

R15145

DISC

WASHER - brake, starter drive

1шт.

52

A41923

PLUG

- oil reservoir (Felt)

1шт.

53

41-57

PLUG,Exp, 1 1/32"

- 1-1/32" expansion

1шт.

54

A41973

GASKET

- expansion plug

1шт.

55

221-1041

PLUG

- oil wick hole

1шт.

56

R15023

WICK

- oil

1шт.

57

R21587

PLUG

- shift lever housing

1шт.

58

A41924

GASKET

- housing plug

1шт.

59

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

1шт.

60

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

64

A42397

DRIVE

ASSY - starter

1шт.

65

D32547

LEVER

- shifter

1шт.

66

A42199

PIN

STUD - pivot, shift lever

1шт.

67

R21574

O-RING,0.244" ID x 0.391" OD x 0.073"

- 1/4 x 3/8 x 1/16" (6.35 x 9.52 x 1.59 MM)

1шт.

68

R21573

O-RING,0.369" ID x 0.515" OD x 0.073"

- 3/8 x 1/2 x 1/16" (9.52 x 12.7 x 1.59 MM)

1шт.

69

G46146

SNAP RING,#37, Ext

Ring, Snap, , pivot stud retaining #37, Ext

1шт.

70

A44168

HOUSING

ASSY - drive end

1шт.

71

A40893

BUSHING

- armature pilot

1шт.

72

A41923

PLUG

- oil reservoir (Felt)

1шт.

73

41-57

PLUG,Exp, 1 1/32"

- 1-1/32" expansion

1шт.

74

A41973

GASKET

- expansion plug

1шт.

75

221-1041

PLUG

- oil wick hole

1шт.

76

R15023

WICK

- oil

1шт.

77

R21562

GASKET

- drive end

1шт.

78

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - drive end (Short)

1шт.

79

D32488

HEX SOC SCREW,5/16" - 18 x 1.50"

SCREW - drive end (Long)

5шт.

83

A42376

SWITCH

SOLENOID ASSY (See Figure 046)

1шт.

84

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

- solenoid mtg.

4шт.

85

A42309

PLUNGER

- solenoid core

1шт.

86

A42308

BOOT

- plunger

1шт.

87

A41922

WASHER

SEAT - boot

1шт.

88

A41242

SPRING

- plunger return

1шт.

89

A43380

BACK-UP RING

SEAT - spring

1шт.

90

A43419

SEAT

- spring

1шт.

91

G46146

SNAP RING,#37, Ext

Ring, Snap, , plunger spring retainer #37, Ext

1шт.

92

131-31

LOCK NUT,5/16"-24, G8

NUT - lock, 5/16" NF hex

1шт.

95

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

96

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

97

92-8

LOCK WASHER,1/2"

3шт.

98

L30674

WASHER

- 1/2 x 1 x 1/8"

3шт.

99

321-3709

DECAL

- warning, starter

1шт.
