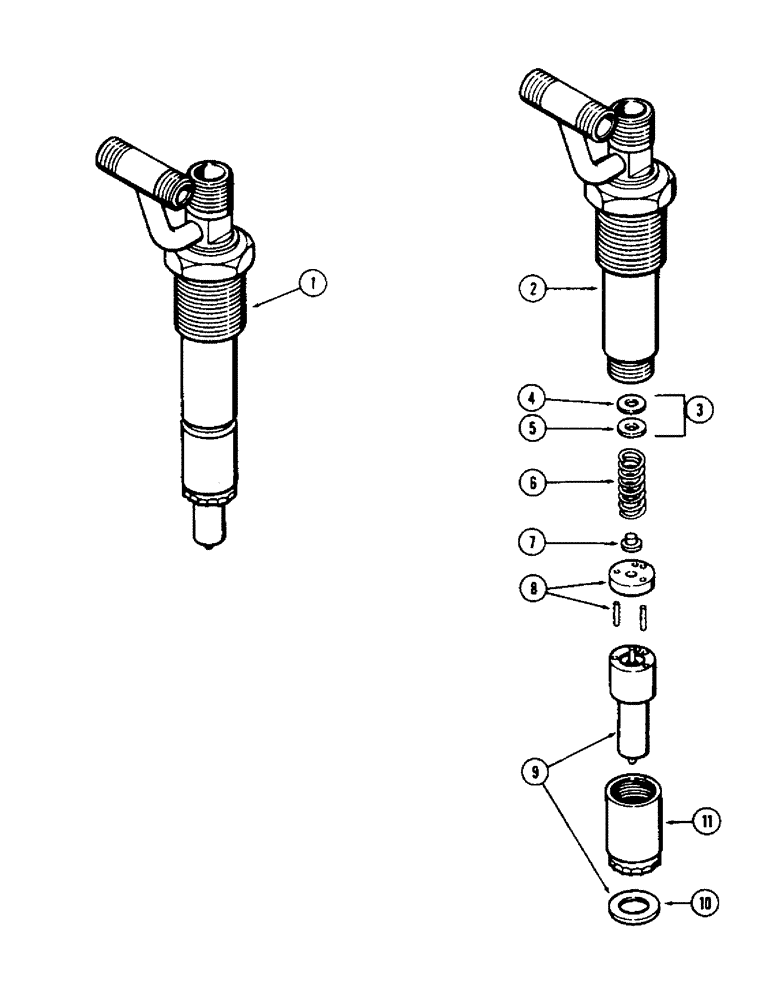

Запчасти Case 40 (038) - INJECTOR NOZZLE, 504BDT ENGINE (10) - ENGINE

1

A152486

NOZZLE CAP

NOZZLE ASSY - injector (See note)

6шт.

A156327R

REMAN-INJECT NOZZLE

40 Reman For New P/N A152486

6шт.

A156327C

CORE-NOZZLE, INJECT

Return number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

3

A44860

SHIM

KIT - shim, nozzle opening pressure (One kit required to repair six nozzles)

1шт.

4

NSS

NOT SOLD SEPARAT

SHIM - .062" (1.57 MM)

6шт.

5

NSS

NOT SOLD SEPARAT

SHIM - .002" (0.05 MM)

80шт.

5

NSS

NOT SOLD SEPARAT

SHIM - .007" (0.18 MM)

50шт.

5

NSS

NOT SOLD SEPARAT

SHIM - .010" (0.25 MM)

50шт.

5

NSS

NOT SOLD SEPARAT

SHIM - .025" (0.64 MM)

20шт.

6

A44864

SPRING

- nozzle pressure adjusting

1шт.

7

A44863

SEAT

- spring

1шт.

8

A44862

VALVE

STOP - nozzle (Includes dowel pins)

1шт.

9

A142969

NOZZLE CAP

TIP ASSY - nozzle injector

1шт.

10

1342829C1

GASKET

- nozzle (See note); Replaces A76640

1шт.

11

A44861

NUT

NUT - nozzle end

1шт.
