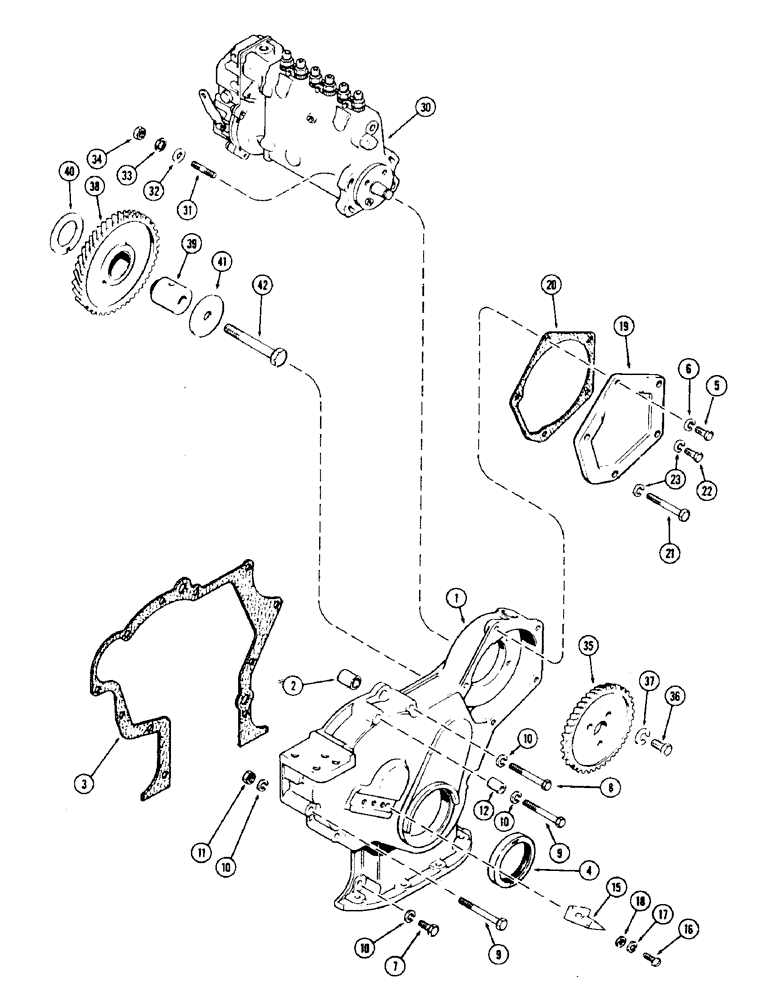

Запчасти Case 40 (036) - TIMING GEAR COVER, 504BDT ENGINE (10) - ENGINE

1

A63909

COVER

ASSY - timing gear

1шт.

2

A58611

PIN

- dowel

2шт.

3

A58612

GASKET

-, Serial Range: cover-block

1шт.

4

A62044

CARBURETOR

SEAL - oil, crankshaft front

1шт.

5

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

6

92-5

LOCK WASHER,5/16"

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

8

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" NC hex (Grade 5)

2шт.

9

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" NC hex (Grade 5)

2шт.

9

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- 3/8 x 3-3/4" NC hex (Grade 5)

1шт.

10

92-6

LOCK WASHER,3/8"

9шт.

11

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

2шт.

12

A19774

BUSHING

SPACER - pry point

1шт.

15

A63911

INDICATOR

POINTER - timing

1шт.

16

169-119

SCREW,Sl Fil Hd, #12 - 24 x 3/4"

- #12-24 x 3/4" slotted fillister hd

1шт.

17

192-108

LOCK WASHER,#12

WASHER - lock, #12

1шт.

18

195-16

WASHER,#12

- 1/4 x 9/16 x 1/16"

1шт.

19

A61053

COVER

- drive gear, injection pump

1шт.

20

A58615

GASKET

- cover

1шт.

21

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" NC hex (Grade 5)

2шт.

22

A151921

BOLT

- drilled

2шт.

23

92-6

LOCK WASHER,3/8"

4шт.

30

REF

INSTRUCTION

PUMP ASSY - fuel injection (See Figure 040)

1шт.

31

A58689

STUD

- pump mounting, 3/8" NC x 1-7/8" (47.64 MM), injection drive

1шт.

32

A57470

WASHER

- stud, 3/8" (9.52 MM) x 11/16" (17.46 MM) x 1/16 (1.59 MM), injection pump drive

4шт.

33

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, , Injection pump drive Int Tooth, 3/8"

4шт.

34

25-106

NUT,3/8"-16, G5

- 3/8" NC hex, injection pump drive

3шт.

34

25-126

SLOTTED NUT,3/8"-16, G5

NUT - 3/8" NC hex slotted, injection pump drive

1шт.

35

A58693

GEAR

- drive, injection pump

1шт.

36

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Injection pump drive Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

37

92-6

LOCK WASHER,3/8"

injection pump drive 3/8"

3шт.

38

A62542

GEAR

ASSY - idler (53 teeth) (Includes bushing), injection pump drive

1шт.

39

A58690

SHAFT

- idler gear, injection pump drive

1шт.

40

A58691

WASHER

- thrust, idler gear, injection pump drive

1шт.

41

A58692

PLATE

- thrust, idler shaft, injection pump drive

1шт.

42

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

Injection pump drive Hex, 1/2"-13 x 4 1/4", G5

1шт.
