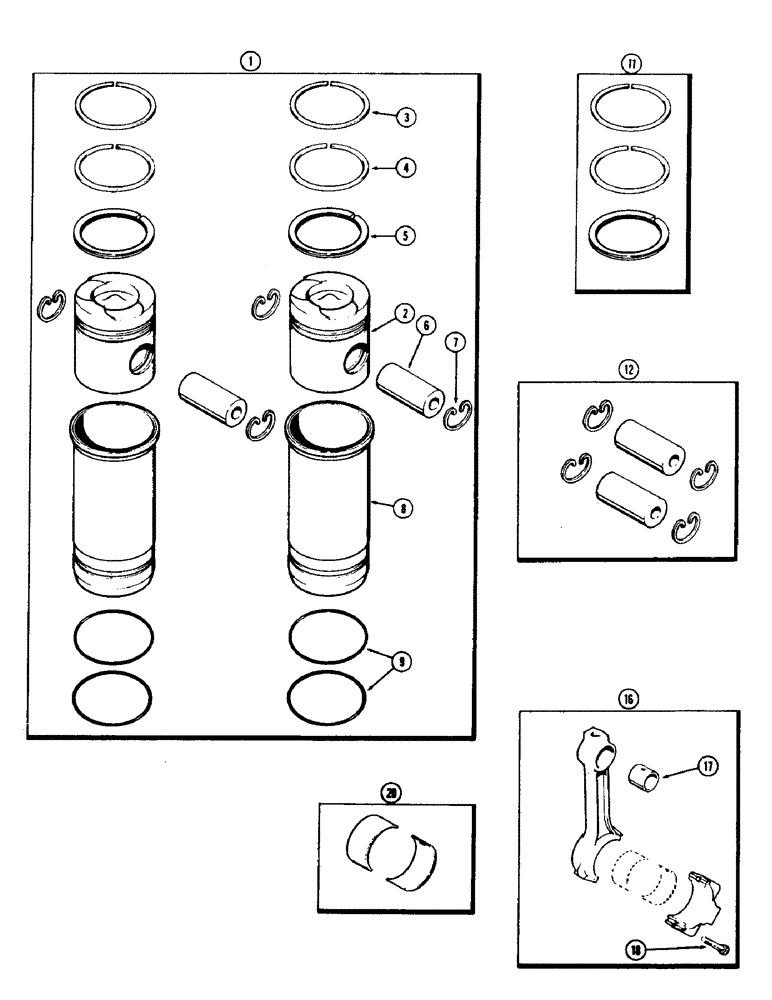

Запчасти Case 40 (026) - PISTON ASSEMBLY, 504BDT ENGINE (10) - ENGINE

1

A151067

PISTON

PISTON ASSY. (Set of 2)

3шт.

2

A152485

PISTON

PISTON - 4-5/8" (117.47 MM) Dia

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, 1st groove (Order ref. 11)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, 2nd groove (Order ref. 11)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control, lower groove (Order ref. 11)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 12)

2шт.

7

A44249

SNAP RING,1.812", Int, #181

Ring, Snap, , piston pin 1.812", Int, #181

4шт.

8

A138317

SLEEVE

SLEEVE - piston

2шт.

9

A146616

O-RING,0.103" Thk x 4.487" ID, -157, Cl 7, 75 Duro

O-RING - 4-1/2" (114.3 MM) x 4-11/16" (118.06 MM) x 3/32" (2.38 MM)

4шт.

11

A44054

RING

RING KIT - replacement (Set of 1)

6шт.

12

A44574

PIN

PIN KIT - piston (Set of 2 with 4 retaining rings)

3шт.

16

A65032

ROD

ROD ASSY. - connecting

6шт.

16

AR65032

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

6шт.

16

AC65032

CORE-ROD CONNECTING

Return Part Number Core-Connecting Rod

6шт.

17

A58580

BUSHING,45.3mm ID x 50.46mm OD x 45.47mm L

BUSHING - piston pin, connecting rod

1шт.

18

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - cap to rod, connecting

2шт.

20

A41758

BEARING LINER

LINER KIT - rod bearing (Set of 2) Standard, connecting

6шт.

20

A41899

BEARING LINER

LINER KIT - rod bearing (Set of 2) .002" (0.0508 MM) Undersize, connecting

6шт.

20

A41900

BEARING LINER

LINER KIT - rod bearing (Set of 2) .010" (.0254 MM) Undersize, connecting

6шт.

20

A41901

BEARING LINER

LINER KIT - rod bearing (Set of 2) .020" (0.508 MM) Undersize, connecting

6шт.

20

A41902

BEARING LINER

LINER KIT - rod bearing (Set of 2) .030" (0.762 MM) Undersize, connecting

6шт.
